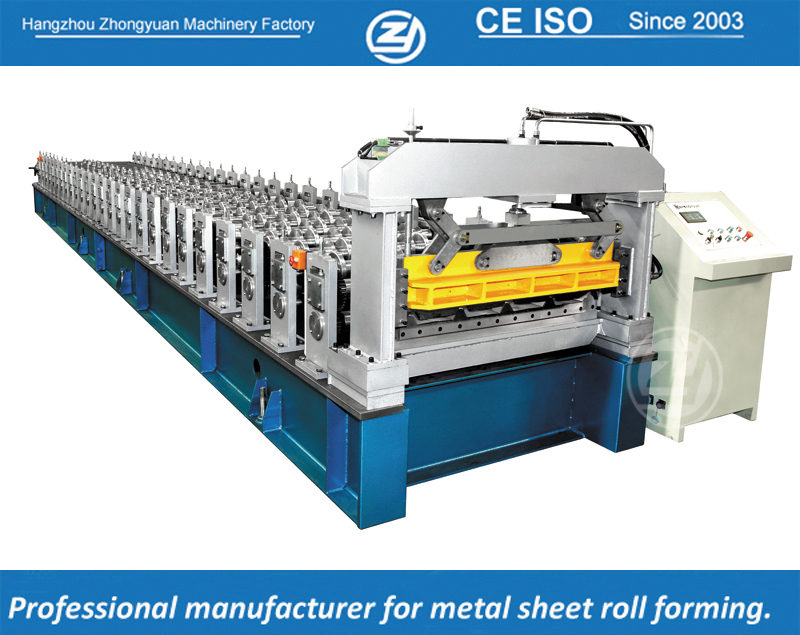

Technical Data of

Suitable material	Q235 color steel sheet;0.3-0.7mm
Forming speed	about 20-25m/min
Power Requirement	Main motor power: 7.5 Kw(Depend on final design)
	Hydraulic station power: 2.2Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on sureface.
Material of cutter	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel with heat treatment.Roller grinder milling.
Shaft diameter	72mm
Controlling system	Mitsubishi PLC & converter
Total weight of machine	about 9500KGS
Machine's size	about 15m1.8m 1.5m (Depend on final design)
Shipping	1x40GP container can load one machine

, Corrugated Sheet Roll Former,  Manufacturer

Bearings Inside Rollers:

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.

Roll forming machine, sandwich panel machines,  China Supplier

Machine Shafts for Rollers

1. Shaft material is No.45 steel with diameter 72mm, strong and durable.

2. Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.

Controller





Once you set quantity and length of product,machine will produce product automatically

, Step Tile Forming Machines,  Manufacturer

Our Metal Roll Forming Machine's Advantages
1. Forming speed:  20-25m per minute or 30-35m per minute.
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome.
3. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
