| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | Zhongyuan |
| voltage: | - |
| weight: | - |
| Condition: | NEW |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Machine's Feature:

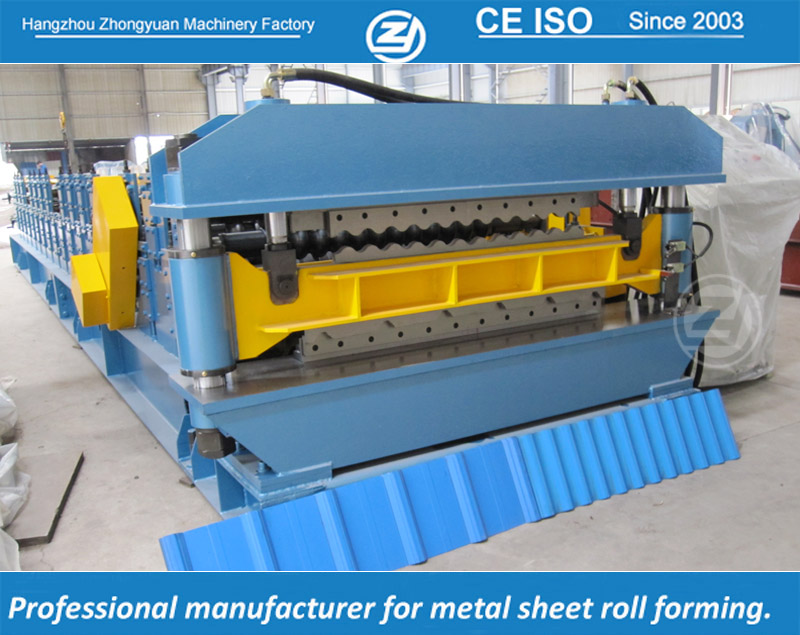

One Double Layer Roll Forming Machine can make two kinds of profile. Client's profile available.
Technical Data of
Suitable material |
Q235 color steel sheet;0.3-0.7mm, |
Forming speed |
about 20-25m/min |
Power Requirement |
Main motor power: 7.5 Kw(Depend on final design) |
Hydraulic station power: 2.2Kw(Depend on final design) | |
Material of forming rollers |
No.45 steel, plated with chrome on sureface. |
Material of cutter |
Cr12 mould steel with quench treatment, HRC58-60 |
Material of shaft |
High quality 45# steel with heat treatment.Roller grinder milling. |
Shaft diameter |
72mm |
Controlling system |
Mitsubishi PLC & converter |
Total weight of machine |
about 115000KGS |
Machine's size |
about 9.5m1.8m 1.5m (Depend on final design) |
Shipping |
1x40GP container can load one machine |
, Supplier
Bearings Inside Rollers:
Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.
: Machine Shafts for Rollers
1. Shaft material is No.45 steel with diameter 72mm, strong and durable.
2. Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product
Our Advantages
1. Forming speed: 20-25m per minute or 30-35m per minute.
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome.
3. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
