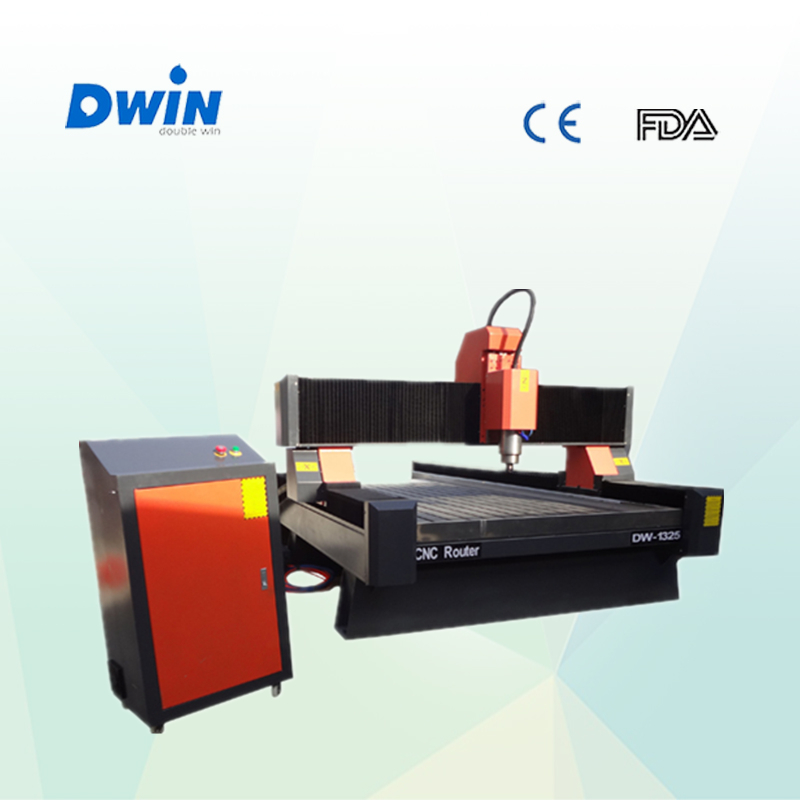

Heavy duty 5.5KW 3D CNC router for stone marble granite DW1325

Features:

Stone engraving router mainly used for heavy weight of the tile,bluestone,granite and tombstones, have the strong structures,have the following features

Feature:

1.X,Y,Z three-axis all the imported linear square orbit.

2.X,Y,Z three-axis all have the waterproof, dustproof system

3.Water cooling constant torque spindle with the imported with the imported bearing, high power, low tone

4.Adopt Taiwan transducer with stable output signals

5.Fully sgielded, bending circuity, and imported electronic components.

6.Adopt double drivers to drive y axis, motivity is more stronger

7.Whole seamless steel structure,can load weight up to 1000kg



Performance Features:

1.Three axises adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime.

2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.

3. Constant power spindle and motor, hightly cutting capability,high efficiency.

4. Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam, Castmate,Wentai,Coredraw.

5. Double direction cutters cooling system can prolong the lifetime of using.

6. High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.

Performance parameter

X,Y Working area:	1300mmx2500mm
Z Working area:	250mm
Table size:	1500mmx3000mm
Processing precision:	0.05mm
Reposition precision:	0.02mm
Table structure:	Aluminium
X,Y,Z structure:	X,Y,Z ball screw
Command:	G CODE
Machine power:	2KW
Max processing speed:	30000mm/min
Max speed:	8000mm/min
Working voltage:	AC380V/50Hz
Spindle power:	5.5KW
Spindle rotating speed:	0-24000rpm/min
Drive motor:	Stepper
Operation system:	Weihong/DSP/Mach3
