Product Main

Quick Details

Pixels: 6mm
Display Function: Video
Tube Chip Color: Full Color
Usage: Indoor
Brand Name: RADIANT
Screen Dimension: 288*144mm
Model Number: RDT-NF060F
Place of Origin: China (Mainland)

Specifications

Model No.

NF060F

Part Number

P6

Pixel Pitch

6mm

Resolution(per LED Panel)

96x48pixels

Pixel Density

2,580 per sq. foot(27,778  per sq. meter)

Pixel Density (Pixels per LED Panel)

1,152

LED Panel Size (W x H)

11.34" 5.67"*0.28" (288mm*144mm*7mm)

LED Panel Weight

~0.86 ld (0.39 kg)

LED  Configuration

SMD2020, 3-in-1 Black face LEDs

Brightness (non-calibrated)

0- 1200 nits (adjustment)

Viewing Angle (Horizontal/Vertical)

160/160

Color Space

92%, NTSC

Color Uniformity

95%

Contrast Ratio

2,500:1

LED Refresh Rate

1,920 Hz

Power Consumption, Maximum (watts)

20w/Tile (480w per sq. meter)

Power Consumption, Typical (watts)

8w/Tile (190w per sq. meter)

Environment /Application

Indoor; fixed

Installation, Service

Front &back

Line Voltage

100-240Volts AC, 50 & 60Hz

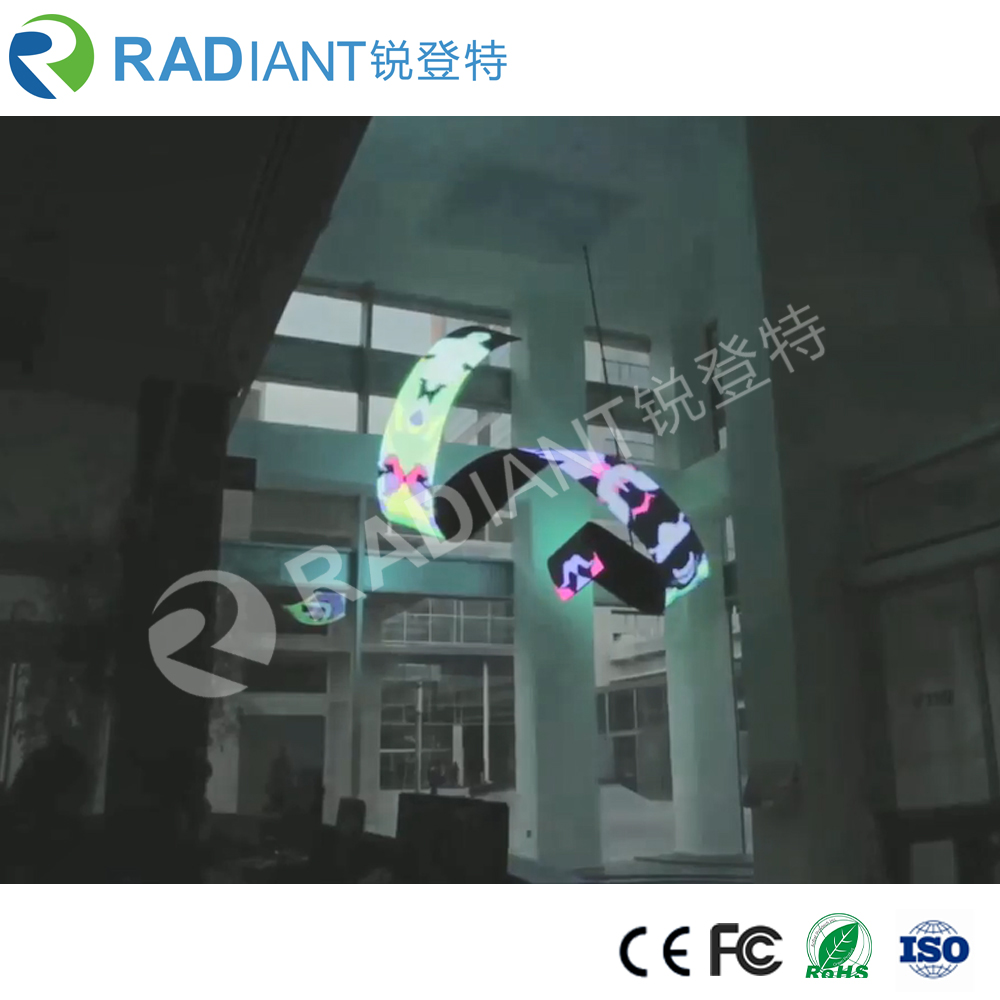

P6 indoor cylinder and curved flexible led screen
