Product Main

Quick Details

Pixels: 4mm
Display Function: Video
Tube Chip Color: Full Color
Usage: Indoor
Brand Name: RADIANT
Screen Dimension: 288*144mm
Model Number: RDT-NF040F
Place of Origin: China (Mainland)

Specifications

Model No.

NF040F

Part Number

P4

Pixel Pitch

4mm

Resolution(per LED Panel)

72x36pixels

Pixel Density

5,806 per sq. foot(62,500   per sq. meter)

Pixel Density (Pixels per LED Panel)

2,592

LED Panel Size (W x H)

11.34" 5.67"*0.28" (288mm*144mm*7mm)

LED Panel Weight

~0.86 ld (0.39 kg)

LED  Configuration

SMD2020, 3-in-1 Black face LEDs

Brightness (non-calibrated)

0- 1200 nits (adjustment)

Viewing Angle (Horizontal/Vertical)

160/160

Color Space

92%, NTSC

Color Uniformity

95%

Contrast Ratio

2,500:1

LED Refresh Rate

1,920 Hz

Power Consumption, Maximum (watts)

20w/Tile (480w per sq. meter)

Power Consumption, Typical (watts)

8w/Tile (190w per sq. meter)

Environment /Application

Indoor; fixed

Installation, Service

Front &back

Line Voltage

100-240Volts AC, 50 & 60Hz

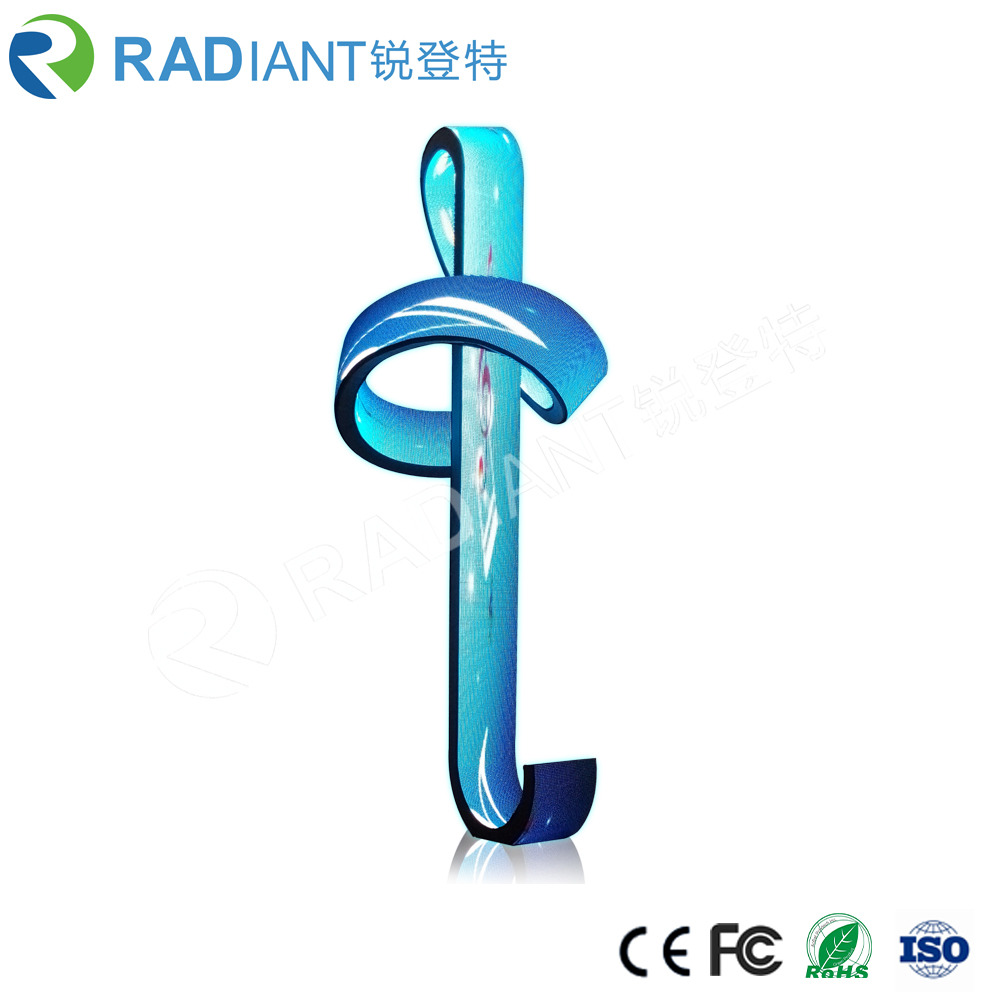

Radiant P40 wholesale flexible soft HD full color shaped circular LED screen for TV studio
