| Connection: | compression |
|---|---|
| Brand Name: | Shengtai |
| Type: | Elbow |
| Technics: | compression |
| Material: | Stainless Steel |
| Shape: | Equal |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

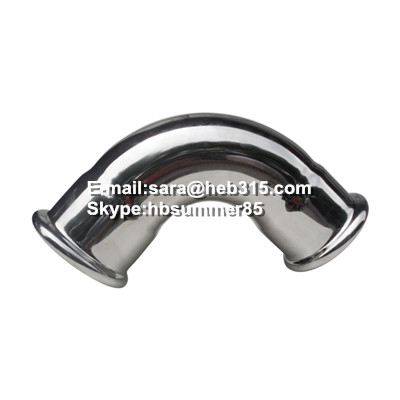

SUS304 stainless steel press fit fitting elbow manufacturer
1.Standard: (DIN)DVGW W534-1995; (JIS)JWWA G116:2001; GB/T 19228.1,GB/T19228.3-2011 etc.
2.Material: 304, 304L,316, 316L etc.
3.Specification: DN10-DN100.
4.Thickness: 1.0-2.0mm.
5.Sealing material: HNBR,PTFE, CIIR,EPDM,FKM etc.
6.Sealing ring standard: GBT 19228.3-2003, EN681-1:1998 etc.
7.Woking temperature: -20C - 130C.
8.Max working pressure: 1.6MPa (equal to 232 psi).
9.Usage:It is suitable for direct drinking water system, water system, heating system, steam system, industrial oil pipe system and industrial gas pipe system.
1.Standard: (DIN)DVGW W534-1995; (JIS)JWWA G116:2001; GB/T 19228.1,GB/T19228.3-2011 etc.
2.Material: 304, 304L,316, 316L etc.
3.Specification: DN10-DN100.
4.Thickness: 1.0-2.0mm.
5.Sealing material: HNBR,PTFE, CIIR,EPDM,FKM etc.
6.Sealing ring standard: GBT 19228.3-2003, EN681-1:1998 etc.
7.Woking temperature: -20C - 130C.
8.Max working pressure: 1.6MPa (equal to 232 psi).
9.Usage:It is suitable for direct drinking water system, water system, heating system, steam system, industrial oil pipe system and industrial gas pipe system.
