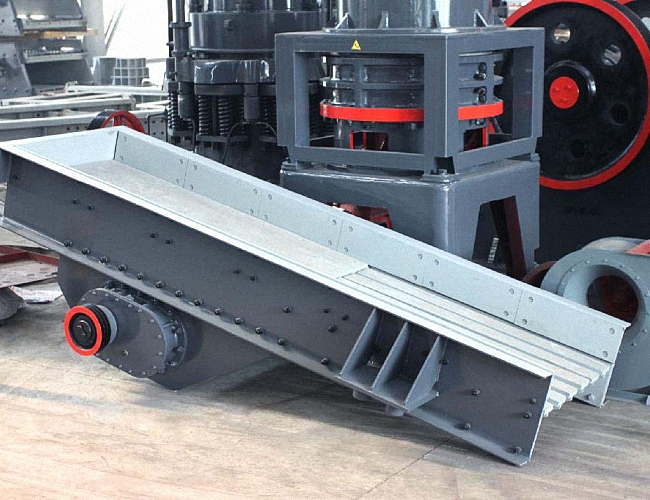

GZT vibrating feeder use a pair of Motor with complete same parameter as vibrating source. It can continuously and Uniformly feed lump, granulate material to receiving equipment. and screen Material during feeding process. It has feature such as big vibrating force, High strength, impact resistance, long service.

Application

It is widely used for feeding big Size material for crushing in mine, cement, lime, ore dressing industries.





Our products advantages:



1.Vibrating source is motor, small Noise, strong vibrating force. Low energy consumption.

2.Stable vibrating force and easy Adjustment, can change and control material feeding any time.

3.Gap between stick on outlet are Adjustable. It can separate soil and sand during feeding process, the Pre-screen capability can improve the coarse crushing capacity.

4.Material trough use frame type Connect with rivet, and side plate is bend by a entire steel plate, compact Structure, good rigidity, fatigue resistance.

5.both backplate and stick are made by ware-resistant material, strong structure, high strength, impact resistance.

6.Big processing capacity, reliable Running, easy maintenance.



GZT vibrating feeding composed of Material trough, vibrating exciter, spring supporting the structure features are

1 Material trough

It is material conveying and feeding Part, and integrated framework, riveted by lock rivet. the lining of trough: Feeding section is blind plate (incline angle is 05) and Outlet section is sticks (incline angle is 1520).

2 Vibrating exciter

Vibrating exciter is key part of Vibrating feeder, use new type vibration motor as exciter, stable performance Reliable, easy adjustment.

3 Spring support

It is seated mounted, use steel Spring as damper spring, operation reliable and long service long.
