Height:1800-3000mm

Width:2750mm(Popular)

Pale:50mm,60mm,62mm,65mm,71mm

Angle Rail:40404.0mm

           50505.0mm(Popular)

           50506.0mm

I Post:55100mm(Popular)

Surface:Hot dipped galvanized&Powder coating

Other size are available

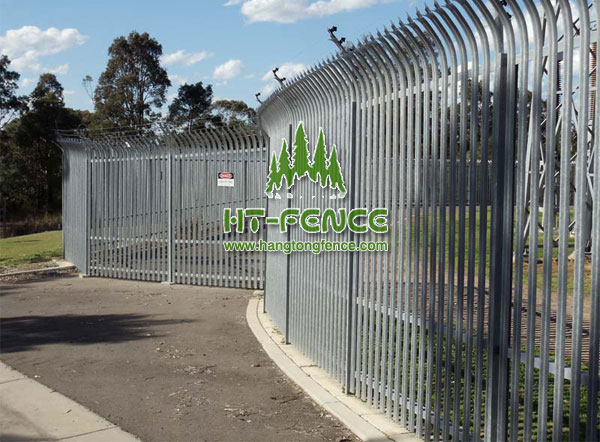

Bent top palisade fence,  manufacturer

Bent top Palisade fencing offers the best there is in a high security fence, a durable versatile fence at a cost effective price.Simple to install, the individual components are hot dip galvanized prior to leaving our factory and no further welding, cutting or drilling is necessary, ensuring total corrosion protection and minimising installation time and costs.

Palisade is more secure than other fencing systems, so wherever security is a priority, Palisade is used.Steel palisade fencing is especially popular for schools,park and industrial sites because of its high damage resistance and the fact that it is so difficult to climb.

as palisade fencing manufacturer,HT-Fence supply both the W section  and the D section style of palisade fencing, with the integrity of the palisade fence being maintained by the two horizontal rails that are used as standard in palisade fences up to three meters high.  however, we can supply other heights of palisade fencing as your required.

 Features

 Bolt-on Palisade fencing can be installed by semi-skilled staff as there is no welding on site.

 Bolt-on Palisade fencing is easily transported. the components are packed in bundles.

 Bolt-on Palisade fencing which has been hot-dip galvanized is not compromised by welding on site.

 Bolt-on Palisade fencing can be easily moved to another fence line.

 Bent top can provide highest level security protection

 HT-Fence Palisade fencing is modular.Sections can be replaced easily if damaged by vehicles,falling trees,etc.

, High Security Palisade Fence,  Supplier

Palisade Fence Application

It is often used in villa,park,industrial plants,garden, insulated of road,school,station,residence community,etc.

Bent Top Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only.

Panel size		W Pale section:62&70mm		Rails	Post
Fence heights	Post Distance	Pale Thickness	Qty:Pale	Cross Rails	Height	I Post Section
1.8m	2.75m	1.5/2/2.5/3mm	17pcs	40404mm      50505mm    50506mm	2400	10055mm
2.1m	2.75m	1.5/2/2.5/3mm	17pcs	40404mm      50505mm    50506mm	2900	10055mm
2.4m	2.75m	1.5/2/2.5/3mm	17pcs	40404mm      50505mm    50506mm	3200	10055mm
3.0m	2.75m	1.5/2/2.5/3/3.5mm	17pcs	40404mm      50505mm    50506mm	3900	10055mm
		D Pale section:65mm
1.8m	2.75m	1.5/2/2.5mm	17pcs	40404mm    or50505mm	2400	10055mm
2.1m	2.75m	1.5/2/2.5mm	17pcs	40404mm    or50505mm	2900	10055mm
2.4m	2.75m	1.5/2/2.5mm	17pcs	40404mm    or50505mm	3200	10055mm
3.0m	2.75m	1.5/2/2.5mm	17pcs	40404mm    or50505mm	3900	10055mm

Pale use mild steel plate(black or galvanized)

Horizontal rails:Standard 50506mm angle rail

Post use I beam(10055mm,10068mm,12676mm)

Fixings:Steel plate:408150mm

Bolts:M830,M1230 anti-vandal steel or stainless steel

Surface:Galvanized or galvanized then powder coating finished

Steel grade can be chose.

Palisade Fence,,  Manufacturer

Powder from AKZONOBEL

Delivery Terms:FOB, CIF

Payment Currency:USD, EUR, AUD,JPY, CAD, GBP, CNY

Payment Item:T/T, L/C, PayPal, Escrow

Nearest Port:Xingang port,Qingdao port

Delivery Time:General after 25days upon received T/T30% advance payment

Popular Payment detail: T/T 30% in advance as deposit, the balance against received the copy of B/L.
