| Gender: | Male |
|---|---|
| Type: | N |
| Brand Name: | Zhengkai |
| Color: | Tri-alloy |
| Model Number: | N-J1-5/8-2 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
the following example is for you reference.
Features:
Discription:N connectors are available with the impedance of 50ohm and 75ohm.the frequency range extends to 18GHz.Depending on the connector and cable type.the screw-type coupling mechanism provides a sturdy and reliable connection.Connector styles are available for flexible,conformable,semi-rigid and corrugated cable types.both crimp and clamp cable termination processes are used for this series.
Applications:
Antennas/ Base station /Broad cast /Cable assembly /Cellular /Components /Instrumentation/Microwave Radio/Mil-Aero
PCS/Radar /Radios/Satcom /Surge protection WLAN
Note:
1) these characteristics are typical but may not apply to all connectors
2) OEM and ODM are available

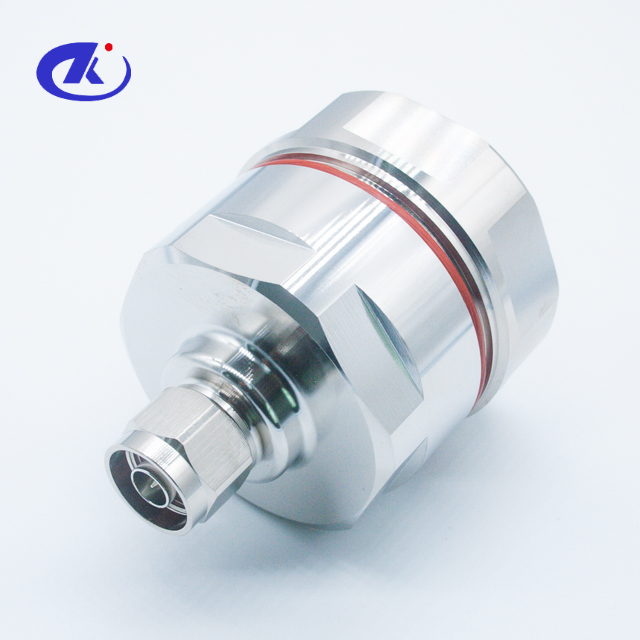

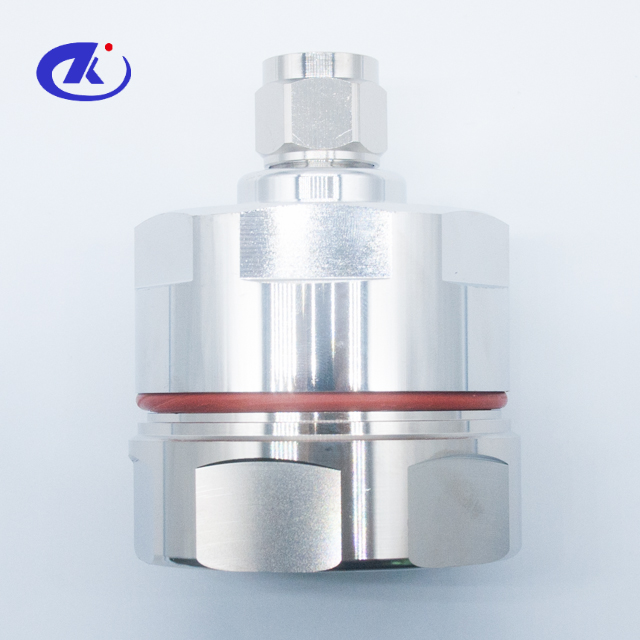

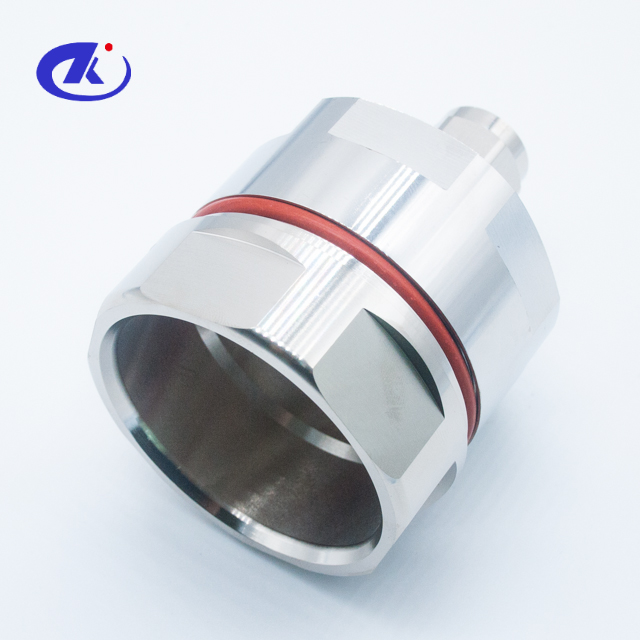

Pictures:
Technical details: Interface According to IEC60169-16 Electrical 1 Characteristic Impedance 50ohm 2 Frequency Range DC-6GHz 3 VSWR 1.15 4 Dielectric withstanding voltage 2500RMS,50Hz,at sea level 5 Dielectric Resistance 5000M 6 Contact Resistance Outer Contact1.0M;Center Contact1.10m 7 PIM -155dBc(2*20W) Mechanical 1 Durability Mating cycles 500 Material and plating Description Material Plating 1 Body Brass Tri-alloy 2 Insulator PTFE 3 Center conductor Phosphor bronze Ag 4 O-ring Silicone rubber 5 Other Brass Ni Environmental 1 Temperature Range -40~+85 2 Watertightness IP67 3 RoHS compliant Pass 4 Salt-fog Test 96 hours Inspection 1.CNC machines,advanced test equipment 2.All products are suit for ROHS. 3.ISO14001 certificate,ISO9001 certificate
Packaging&Shipping
Company Information
Certifications
FAQ
Q:what's your company MOQ? |
A: It depends on whether use customers' brand or not, than we can negotiate. |
Q: What's your delivery time? |
A: It depends on our stock in first, products can send out once receive your deposit. If use customer brands, it will depends the quantity, we will ofen take a bout 7days to prepare materials and mass production. |
Q: Can your company accept customize? |
| A: Welcome OEM & ODM. |
Q: how do you solve after sale service? |
A: this please ask us for technical support if you have workers know how to repair. If do not have engineers, please send back the items, we can repair the items for you. |
Q: Can you send a sample for us to develop? |
| A: Yes, we can. Sample can send out once you ask for it, but will ask a sample fee. Sample fee will return back in future order. |
