| Gender: | Female |
|---|---|
| Type: | N |
| Brand Name: | Zhengkai |
| Color: | tri-alloy |
| Model Number: | N-M-KY141/N-M-KY141-L |
| Place of Origin: | China (Mainland) |
| PIM of N female bulkhead jumper cable: | Less than -155dBc |
| VSWR of N female bulkhead jumper cable: | Less than 1.12@3GHz |
| Impedance of N female bulkhead jumper: | 50 Ohm |

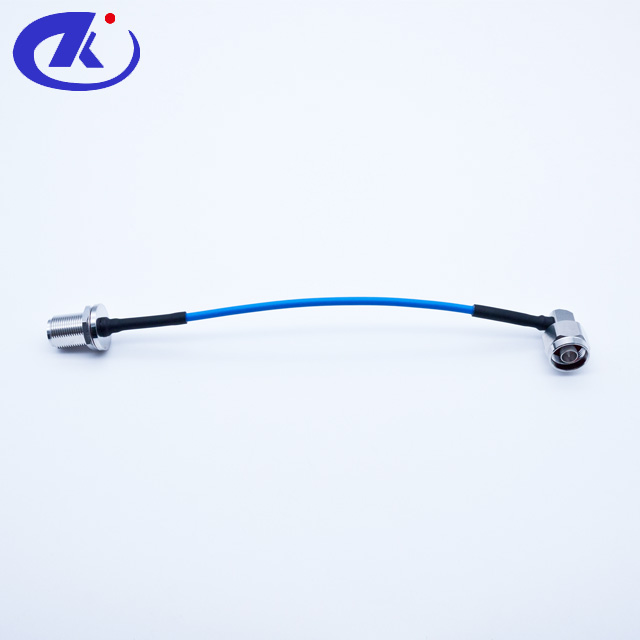

| Cable type of RF jumper cable: | RG402/RG141 |

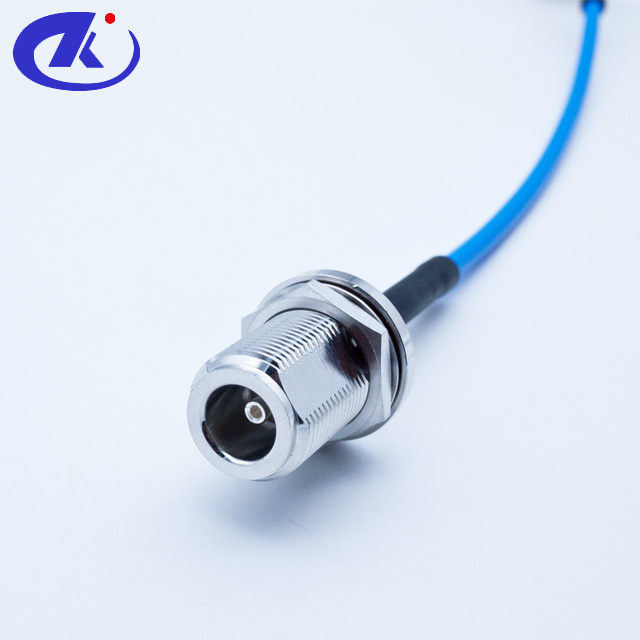

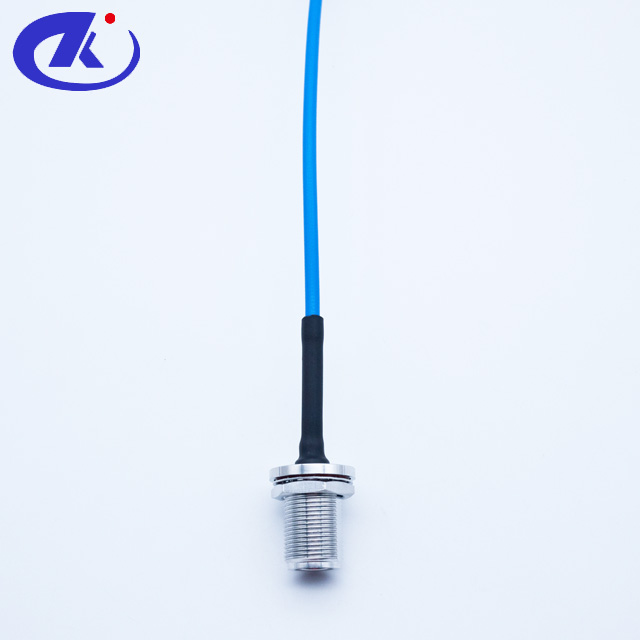

| Connector type of RF jumper cable: | N female bulkhead |
| Body plating of N female bulkhead jumper: | Tri-alloy/Ni |
| Center conductor of N female jumper: | Ag |
| Length: | Based on customer's requirements. |
Quick Details
Specifications
Discription:N connectors are available with the impedance of 50ohm and 75ohm.the frequency range extends to 18GHz.Depending on the connector and cable type.the screw-type coupling mechanism provides a sturdy and reliable connection.Connector styles are available for flexible,conformable,semi-rigid and corrugated cable types.both crimp and clamp cable termination processes are used for this series.
Applications:
Antennas/ Base station /Broad cast /Cable assembly /Cellular /Components /Instrumentation/Microwave Radio/Mil-Aero
PCS/Radar /Radios/Satcom /Surge protection WLAN
Note:
1) these characteristics are typical but may not apply to all connectors
2) OEM and ODM are available
Features:
Interface According to IEC60169-16 Electrical 1 Characteristic Impedance 50ohm 2 Frequency Range DC-3GHz 3 VSWR 1.15 4 Dielectric withstanding voltage 1500RMS,50Hz,at sea level 5 Dielectric Resistance 5000M 6 Contact Resistance Outer Contact1.0M;Center Contact1.0m 7 PIM -155dBc(2*20W) Mechanical 1 Durability Mating cycles 500 Material and plating Description Material Plating 1 Body Brass Tri-alloy 2 Insulator PTFE 3 Center conductor Phosphor bronze Ag 5 Other Brass Ni Environmental 1 Temperature Range -40~+85 Inspection 1.CNC machines,advanced test equipment 2.All products are suit for ROHS. 3.ISO14001 certificate,ISO9001 certificate
Technical details:
Package:
