| Brand Name: | TANA or OEM |
|---|---|
| Temperature of Media: | Medium Temperature |
| Material: | Casting |
| Pressure: | Low Pressure |
| Standard or Nonstandard: | Standard |
| Model Number: | TN2017110901 |
| Place of Origin: | China (Mainland) |
| Port Size: | 2"-60" |
| Media: | Water |
| Power: | Manual |
| Structure: | Butterfly |
Quick Details
Specifications
1.Brief Introduction:

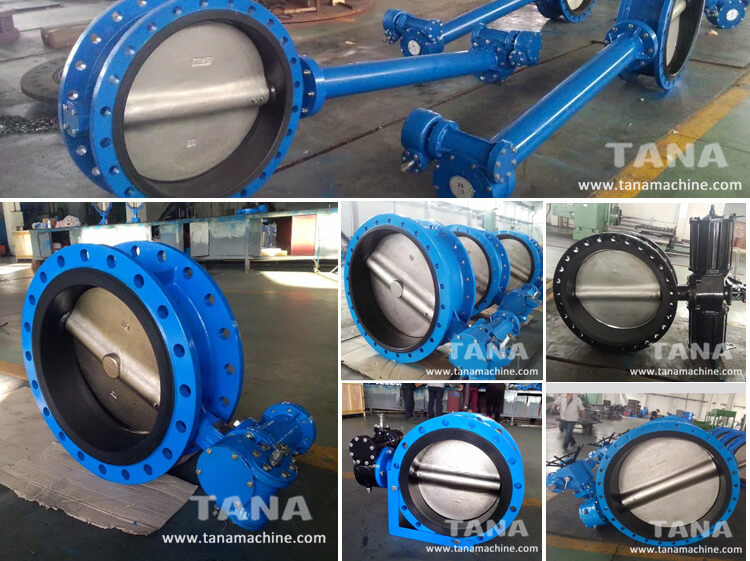

Cast iron Double flange centric rubber seal butterfly valve
Design Features
Concentric structure, bi-directional seal
Non-peeling seat-to-body structure
Spherical design for plate and seats
Non-pin connection
Low valve operating torque
Flow curve tending to straight line
2.Techincal parameters:
Size 2"-48" or DN50-DN1200
Pressure: Class150Lb-300Lb or PN16-PN25
Material: Cast iron, Ductile iron
Design & Manufacture Std.: API609,MSS SP-67,MSS SP-68,DIN3354
End Connection Std.: API609
Test Standard:API598,EN12266.1
Structure Type: Center Line Pattern, Double Eccentric Pattern
Operated Way:Hand Wheel,Worm Gear,Pneumatic,Electric Actuator
