| Pixels: | 5mm |
|---|---|
| Display Function: | Video |
| Tube Chip Color: | Full Color |
| Usage: | Indoor |
| Brand Name: | Beacon |
| Screen Dimension: | depend on customers' request |
| Place of Origin: | China (Mainland) |
| Pixel configuration: | SMD2121 |
| Pixel pitch(mm): | 5 |
| Pixel density(dots/sq m): | 40000 |
| Calibrated brightness(CD/sq m,nit): | 1600 nits(adjustable) |
| Calibrated brightness proportion ratio: | R:G:B = 3:6:1 |
| Contrast ratio: | 4,500:1 |
| Brightness adjustment(dimming): | 100 grade auto/manual-adjustment |
| Color capability: | 4.4 trillion |
| Refresh rate(Hz): | >800 Hz |
| Frame frequency(Hz): | >60 Hz |
Quick Details
Specifications
1 |
Items |

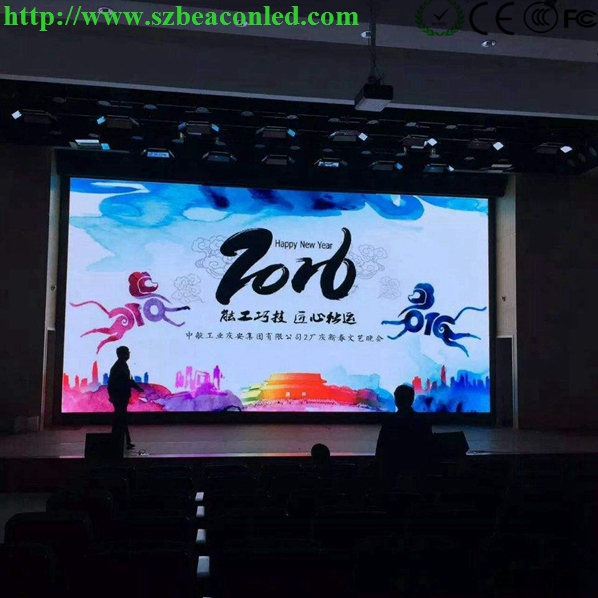

P5 full color indoor LED display |
2 |
Pitch size |
5mm |
3 |
Module size |
160mm*80mm |
4 |
Module pixel(dots) |
32dots*16dots |
5 |
Pixel configuration |
1Red, 1Green, 1Blue |
6 |
LED chip |
Silan |
7 |
Color scale |
65536degree/16777216colors |
8 |
Pixel density |
40000pixels/square meter |
9 |
View angle(H/V) |
120/120degree |
10 |
Brightness |
800cd/square meter |
11 |
Brightness adjustment |
64 level automatic or manual |
12 |
View distance |
3--100m |
13 |
Power consumption |
100-1600W/square meter |
14 |
Net weight |
Less than 45kg/square meter |
15 |
Operating temperature |
-25 C~+60 C |
16 |
Operating humidity |
10%_ 95%RH |
17 |
Life time |
100, 000hours |
18 |
Out of control dot |
1/10, 000 |
19 |
Whole Display Flatness |
1mm Juncture |
20 |
Exchange frame speed |
> 150frames per second |
21 |
Refresh frame frequency |
600Hz |
22 |
Control distance |
120m (without repeater), single mode fiber: 20km, multi mode fiber: 500m |
23 |
Power |
110V/220V 15% 50Hz |
24 |
Operating system |
Windows98/Me/2000/XP |
25 |
Drive mode |
Constant current driving, 1/8 scan |
26 |
Display mode |
VGA640X480_ VGA1600X1024 |
27 |
Protections for outdoor display |
IP54 |
