Model No |

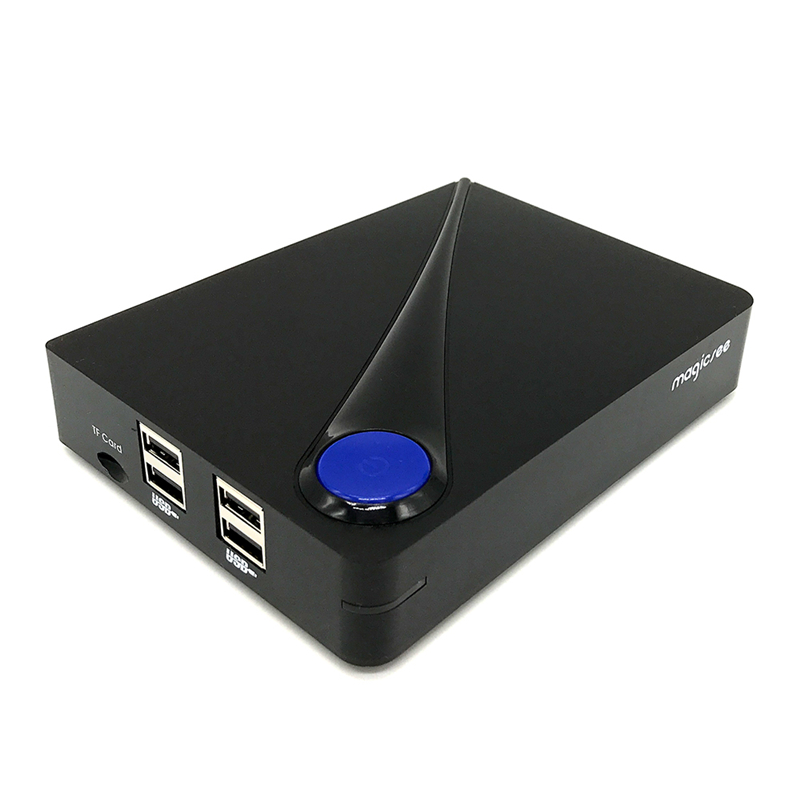

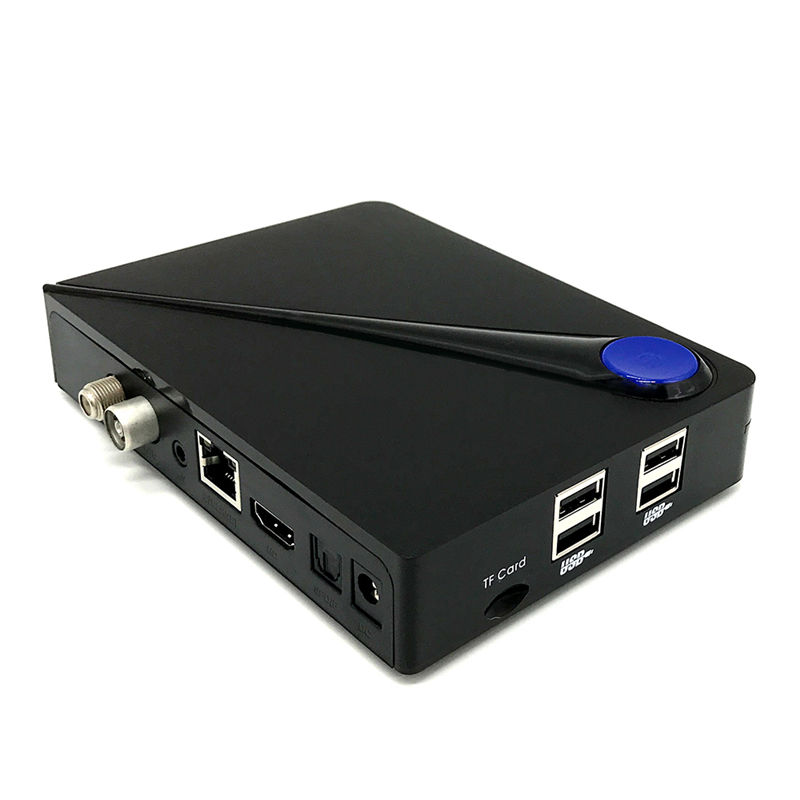

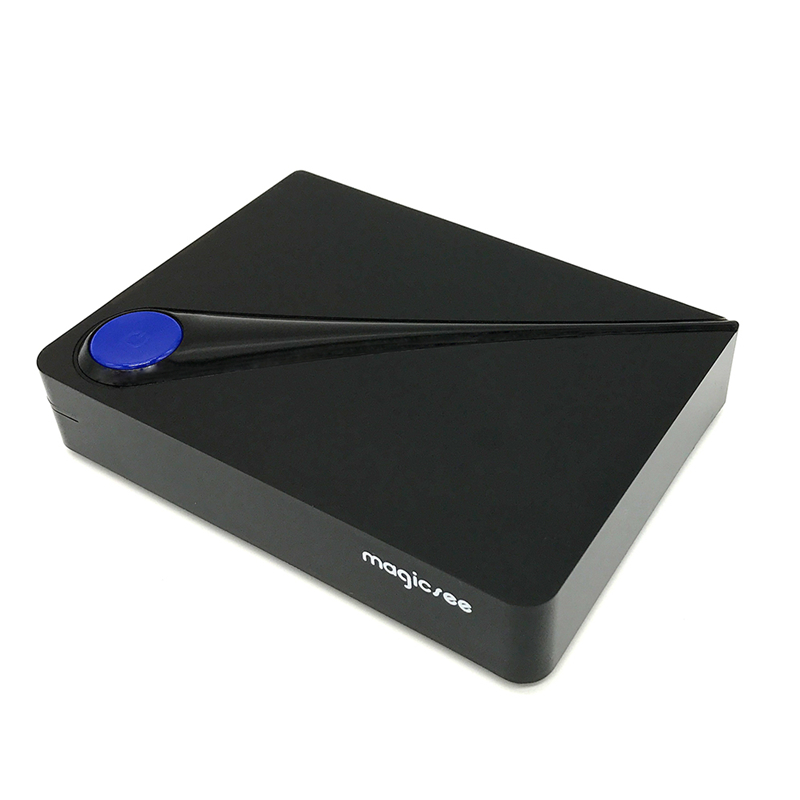

Magicsee C300
|
OS |
Android 7.1
|
CPU |
Amlogic S905D Quad-core 64-bit ARM -A53 up to 1.5GHz |
GPU |
Penta-core ARM Mali-450 |
3D Graphics |
OpenGL ES 1.1/2.0 and Open VG 1.1 support |
Video |
UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264 |
Language |
Chinese, English, Germany, Thai, French,Russian,Italian,Spanish.... |
RAM |
DDR3 2GB |
Memory size |
EMMC Flash 16GB ( 4~32GB Optional ) |
WiFi |
Built in 2.4G WiFi Support IEEE 802.11 b/g/n/AC |
Bluetooth |
Bluetooth 4.1 |
Ethernet |
10M/100M |
IR |
Infra Remote control |
LED Indicator |
Power on:blue; Standby:Red |
Mould |
Private Tooling |
DVB-S2 |
DVB-S2 system standard: ETS 302 307 |
|
Symbol Rates: QPSK,8PSK |
|
Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 |
|
Carrier frequency acquisition range: 5MHz for symbol rates above 3 Msps and 3MHz for the remaining symbol rates |
|
Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 |
|
Symbol Rates: 1- 55 Msps |
|
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 |
|
Input Signal level: -84 dBm to 0 dBm (average power) |
|
ANT. Connector:IEC TYPE F |
DVB-T2 |
DVB-T2 system standard: ETSIEN 302 755 |
|
Support MPLP |
|
Demodulation: QPSK,16QAM,64QAM or 256QAM |
|
Forward error correction rate 1/2,2/3,3/4,3/5,5/6 |
|
Guard interval:1/4,19/256,1/8,19/128,1/16,1/32,1/128 |
|
Bandwith: 6/7/8MHz |
|
Input Frange range:54--860MHz Input Impedance:75 |
|
Input Signal level: -84 dBm to 0 dBm (average power) |
|
ANT. Connector:F TYPE, female |
DVB-C |
Support |
Video Decoder |
HD MPEG1/2/4, H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K @30fps, AVS+ 1080P @60fps |
Decoder format |
HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6,RealVideo8/9/10 |
Video encorder |
H.264 1080P @60fps |
HDR |
HDR 10, HLG HDR |
Media format |
AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG |
Music |
MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
Photo |
HD JPEG/BMP/GIF/PNG/TIFF |
