| Power Factor Compensation: | Without |
|---|---|
| Usage: | High Intensity Discharge |
| Style: | Magnetic |
| Brand Name: | Ballastco |
| Model Number: | MHLB, MVLB, SVLB |
| Place of Origin: | Turkey |
| MHLB: | Metal Halide Lamp Ballast |
| MVLB: | Mercury Vapor Lamp Ballast |
| SVLB: | Sodium Vapor Lamp Ballast |
Quick Details
Specifications

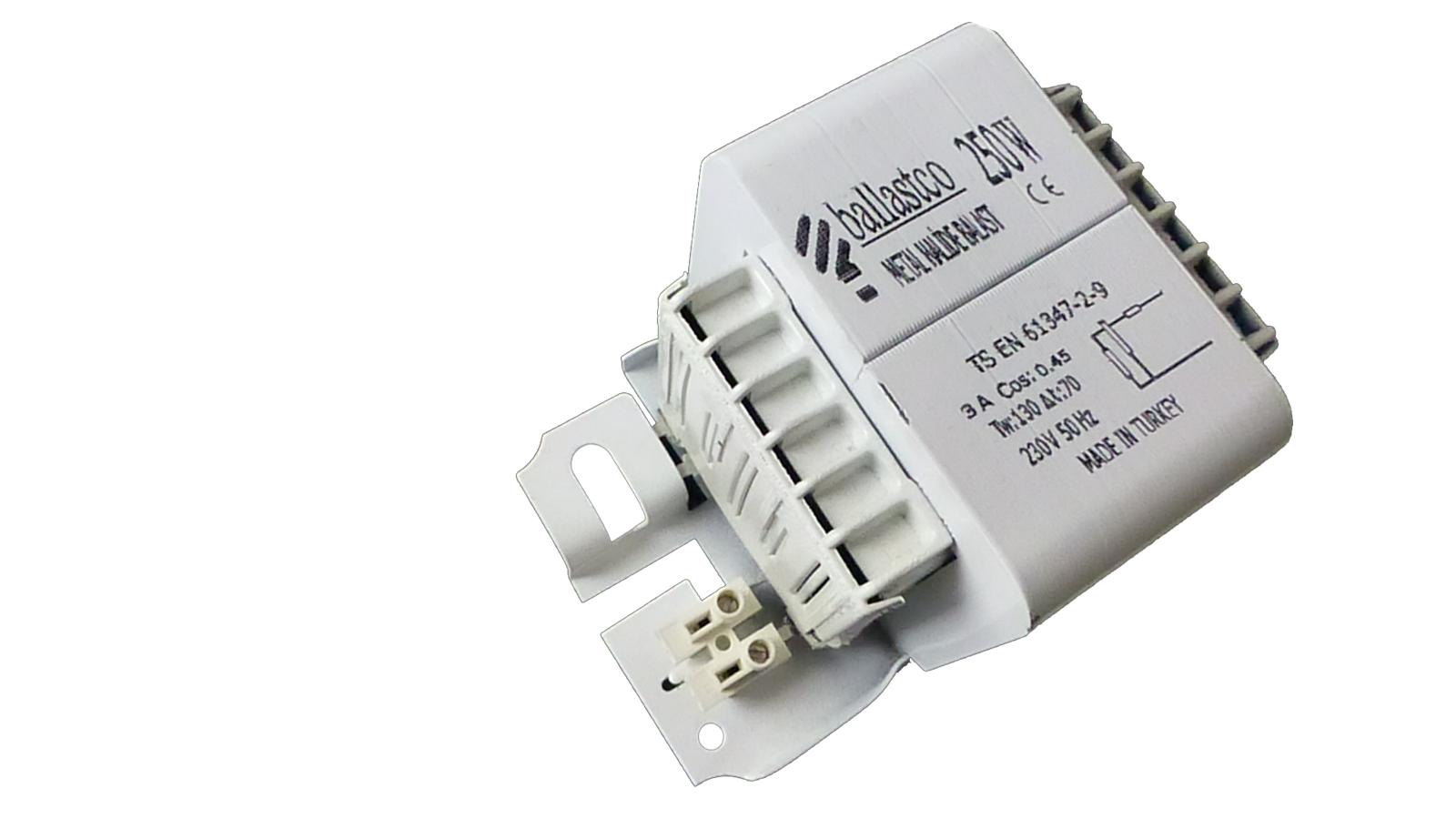

Explore our High Efficiency HID Ballasts
Magnetic ballasts have been used as a fundemental component of lighting fixtures for long years. the magnetic field which is created by Windings wound on a carcass, provides a magnetic field that preserves lamps Stable working. Although magnetic ballasts leave their place to electric ones, Ballastco magnetic ballast are still can be used safely for long years where You need a reliable lighting component.
Ballast Model |
Description |
Wattage (W) |
Main Current (A) |
Power Factor |
Input Voltage(V) |
Frequency (Hz) |
Weight (kg) |
Dimension |
Other Parameters |
SVLB50 |
50 Watt Sodium Vapor Lamp Ballast |
50 |
0,76 |
0,45 |
220-240 |
50-60 |
1,1 |
121 x 67 x 49 Mm |
Tw130, t70 |
SVLB70 |
70 Watt Sodium Vapor Lamp Ballast |
70 |
1 |
0,43 |
220-240 |
50-60 |
1,1 |
121 x 67 x 49 Mm |
Tw130, t70 |
SVLB150 |
150 Watt Sodium Vapor Lamp Ballast |
150 |
1,8 |
0,43 |
220-240 |
50-60 |
2,1 |
128 x 87 x 73 Mm |
Tw130, t70 |
SVLB250 |
250 Watt Sodium Vapor Lamp Ballast |
250 |
3 |
0,45 |
220-240 |
50-60 |
2,9 |
128 x 87 x 73 Mm |
Tw130, t70 |
SVLB400 |
400 Watt Sodium Vapor Lamp Ballast |
400 |
4,6 |
0,40 |
220-240 |
50-60 |
|
|
Tw130, t70 |
MHLB70 |
70 Watt Metal Halide Lamp Ballast |
70 |
1 |
0,43 |
220-240 |
50-60 |
1,1 |
121 x 67 x 49 Mm |
Tw130, t70 |
MHLB150 |
150 Watt Metal Halide Lamp Ballast |
150 |
1,8 |
0,43 |
220-240 |
50-60 |
2,1 |
128 x 87 x 73 Mm |
Tw130, t70 |
MHLB250 |
250 Watt Metal Halide Lamp Ballast |
250 |
3 |
0,45 |
220-240 |
50-60 |
2,9 |
128 x 87 x 73 Mm |
Tw130, t70 |
MHLB400 |
400 Watt Metal Halide Lamp Ballast |
400 |
3,5 |
0,45 |
220-240 |
50-60 |
3,4 |
157 x 87 x 73 Mm |
Tw130, t70 |
MHLB1000 |
1000 Watt Metal Halide Lamp Ballast |
1000 |
9,5 |
0,51 |
220-240 |
50-60 |
8,5 |
253 x 83 x 108 mm |
Tw130, t80 |
MHLB2000 |
2000 Watt Metal Halide Lamp Ballast |
2000 |
16,5 |
0,58 |
220-240 |
50-60 |
14,4 |
295 x 83 x 108 mm |
Tw130, t80 |
MVLB125 |
125 Watt Mercury Vapor Lamp Ballast |
125 |
1,15 |
0,45 |
220-240 V |
50-60 |
1,1 |
121 x 67 x 49 Mm |
Tw130, t70 |
MVLB250 |
250 Watt Mercury Vapor Lamp Ballast |
250 |
2,25 |
0,45 |
220-240 V |
50-60 |
2,9 |
128 x 87 x 73 Mm |
Tw130, t70 |
MVLB400 |
400 Watt Mercury Vapor Lamp Ballast |
400 |
3,25 |
0,43 |
220-240 V |
50-60 |
3,4 |
157 x 87 x 73 Mm |
Tw130, t70 |
Advantages |
Applications |
High efficacy factor High color reversal Fitting into many fixture types Best white light Usable in many fixture positions
|
Indoor & outdoor lighting Street & urban lighting Residential lighting Municipal lighting Industrial lighting Highbay lighting
|
Technical Features | |
Wire Type: |
Enameled Copper / Enameled Aluminium |
Body Material: |
Nylon 66 or Nylon 6 fireproof material (with fiber Glass) for Carcass. Siliceous sheet on body parts |
Protection Type: |
Thermal Protection |
Standards: |
TS EN 61347-2-9, EN 60923 |
Average Lifetime: |
Tw marking 130' C (average lifetime of 10 years Continuous operation @ 130' C) |
Other Specifications: |
High quality screw-in or insert terminal blocks as standard Quick and easy wiring Long lifetime Silent working Compact Design |
