1.Brief Introduction:

1.3 way/port with intergrated structure

2.Bow-out proof stem
3.Fire safe design
4.Anti-static device
5.Free leakage of body Sealed construction
6.Low torque in operation
7.Emergency sealing
8.3 way T-type ball valve is designed with 4 seats,force balance.It can make sure the reliable sealing on ablived flowing way,it functionized as distributary.Combanied flows,direct the following.3 flowing ways are fully opened



2.Techincal parameters:

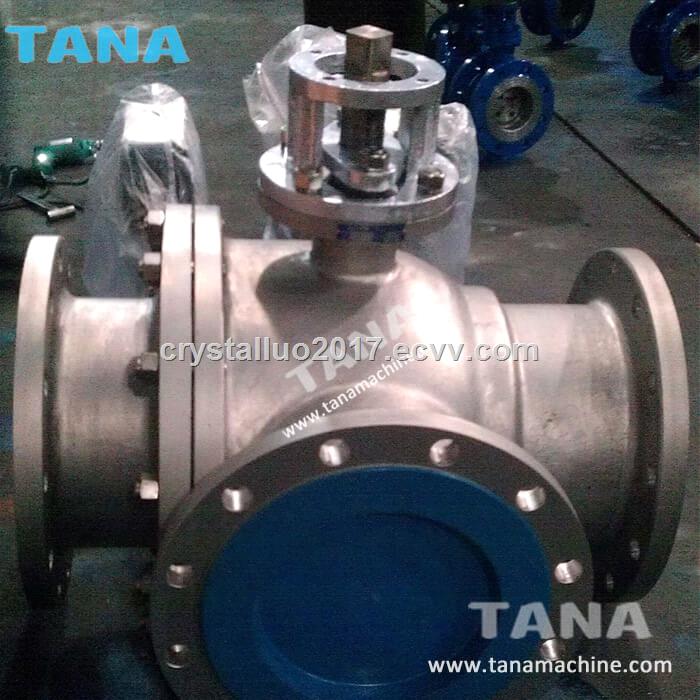

Stainless steel T type 3 way ball valve

Standard specification

1 3 way T- type with high mounting pad(can be connected wtih actuators)
2 DN100mm,PN16Mpa
3 Body material: stainless steel SS304,SS316,SS304L,SS316L

4.Ball:SS304,SS306
5 Seat:PTFE
6 Applicable medium::steam,oil,water Non-corrosive liqiud.Acid and Alkali corrosive medium
7 Temperature rating: -28~350C

Note:WCB 3 way ball valve is available
