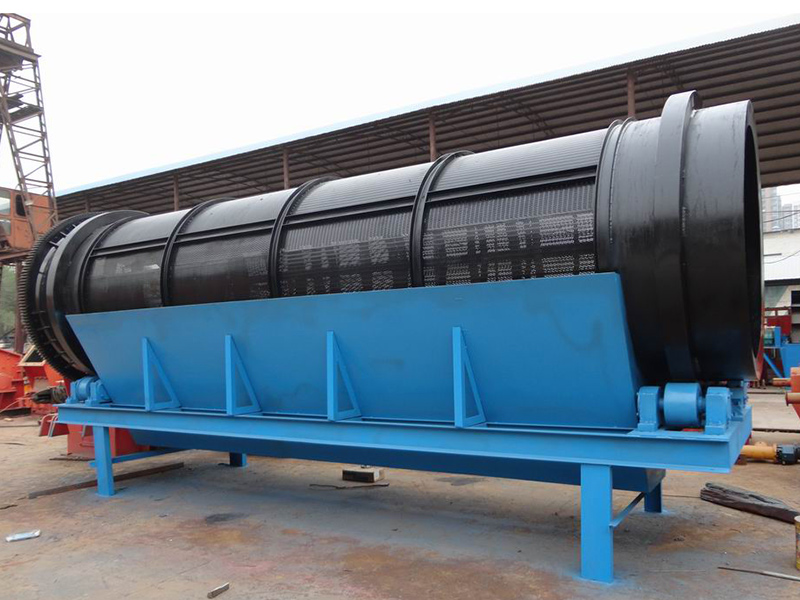

Drum e for Mining and quarry

Product overview of Drum Sieve:

1. Drum sieve is our company for power plants, coking Plants, metallurgy, chemicals, mining, building materials and other industries and The development of vibration screening machine.

2. Which solves the problem of viscous plugging of the viscous material during the Screening process, and improves the yield and reliability of the screening system.

3. the largest output of 100 mm, the middle 10-50 mm, the smallest up to 3 mm below, the product by the majority of users praise.



Product Applications of Drum Sieve:

1. Widely used in electric power, mining, metallurgy, building materials, chemical and other production industries.

2. Commonly used in refractory materials, coal, fertilizer, gravel block classification, As well as coal, coke, lime, placer gold and other wet viscous materials screening.



Product features ofDrum Sieve:

1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light and the screen hole is not easy to be blocked.

2. Smooth operation, low noise.

3. Accessories used split design, simple structure, quick and easy replacement of maintenance

4. the use of effective sealed structure, not dust, no pollution

5. Safe and reliable operation, high transmission efficiency, with a small power, low Energy consumption.

6. Can be customized according to customer requirements.



Technical parameter table of Drum sieve:

Model	Output(t/h)	Power(kw)	Diameter of screen Cylinder(mm)	Feeding granularity(mm)	Length of screen Cylinder(mm)	Dimensions	Theoretical weight   (kg)
GTS1015	50	3	1000	1500	300	2600*1400*1700	2200
GTS1020	100	4	1000	2000		3390*1400*2140	2800
GTS1225	160	5.5	1200	2500		4146*1600*2680	4200
GTS1530	250	7.5	1500	3000		4460*1900*2820	5100
GTS1545	350	11	1500	4500	400	5960*1900*3080	6000
GTS1848	450	15	1800	4800		6500*2350*4000	7500
GTS2055	600	22	2000	5500		7500*2550*4800	9600
GTS2265	800	30	2200	6500		8500*2750*5000	12800
