the vacuum induction melting furnace is used for smelting and precise casting for iron-based, nickle-based, high temperature alloy and other precise alloy, magnetic materials.

Composition

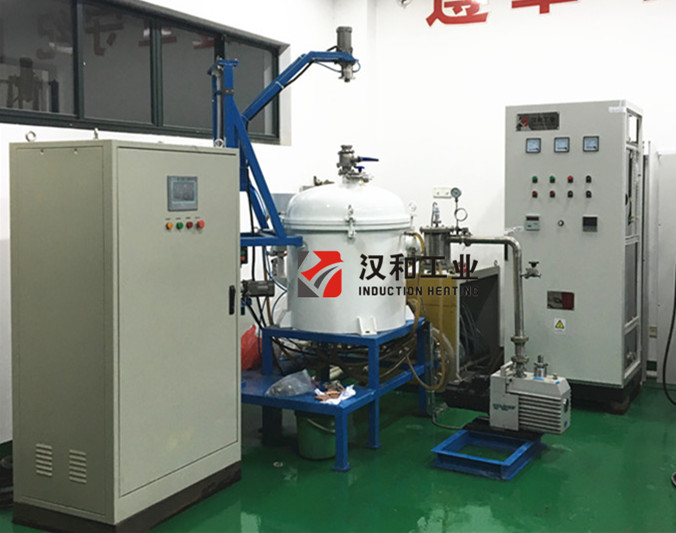

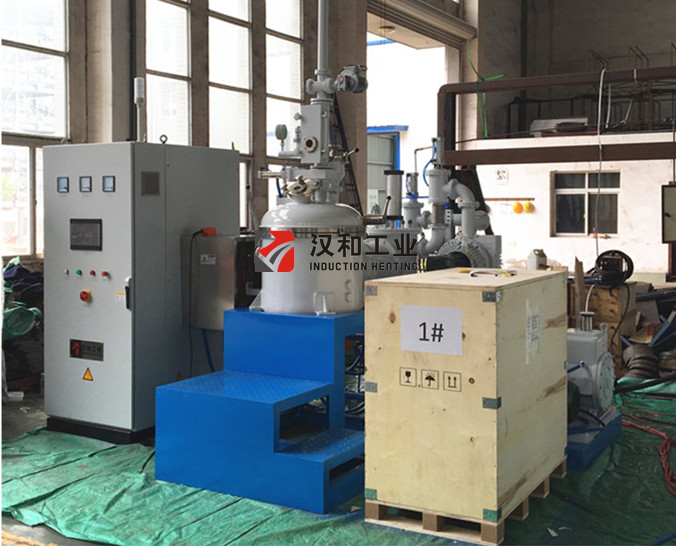

the whole set of equipment is made of furnace body, furnace cover, induction coil, sensor, smelting crucible, temperature detector, temperature controller, feeding device, vacuum systems, medium frequency power unit, electrical control cabinet, water cooled device etc.

Technical Parameters

Model	Rated Capacity(KG)	Highest Temperature()	Power(KW)	Power Frequency(Hz)
ZPL-5	5	1800	50	8000
ZPL-10	10	1800	50	4000
ZPL-25	25	1800	100	2500
ZPL-50	50	1800	100	2500
ZPL-100	100	1800	160	2500
ZPL-200	200	1800	250	2500
ZPL-300	300	1800	300	1500

Features
1. Jacking from bottom or fixed-point casting structure, safety operation;
2. Special type of rapidly-heated and high-temperature ceramic cavity, clean smelting environment;
3. Optimum heating current frequency, extending the lifetime of the crucible;
4. Global leading induction heating system, stable & reliable;
5. Precise control of heating energy, meeting the requirements for various heating technologies;
6. Smelting under high power factor, quite low harmnoic interference on the power source;
7. Rapid speed of smelting, no loss of any composition of the noble metal;
8. Reliable monitoring of pressure on water of the system, flow rate and temperature;
9. Equipped with refrigerating circulating water cooling system, small space occupied;
10. Automatic casting system can be equipped to adapt to the casting of ingots in bulk;
11. Other specifications can be made according to your requirement.
