| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 Year |
| Brand Name: | zzhhgy |
| Usage: | Melting Furnace |
| Condition: | New |
| Name: | Industrial melting furnace |
| Type: | Induction furnace |
| Model: | ZPL-10 |
| Melting capacity: | 10KG |
| Melting power: | 50KW |
| Max. temperature: | 1800centigrade |
| Power frequency: | 4KHz |
| Processing material: | Iron-based, nickle based, high temperature alloy |
| Crucible material: | Ceramic/graphite |
| Cooling water flow: | 5t/h |
Quick Details
Specifications
ZPL-10 Industrial Electric Melting Furnace
2. Composition
3. Technical Parameters
4. Advantages
1. High heating temperature, fast smelting speed.
2. Special type of rapidly-heated and high-temperature ceramic cavity, clean smelting environment;
3. Optimum heating current frequency, extending the life time of the crucible;
4. Global leading induction heating system, stable & reliable;
5. Precise control of heating energy, meeting the requirements for various heating technologies;
6. Smelting under high power factor, quite low harmnoic interference on the power source;
7. Rapid speed of smelting, no loss of any composition of the noble metal;
8. Reliable monitoring of pressure on water of the system, flow rate and temperature;
9. Equipped with refrigerating circulating water cooling system, small space occupied;
10. Automatic casting system can be equipped to adapt to the casting of ingots in bulk;
11. Other specifications can be made according to your requirement.
5. Pictures for reference
1. Application
the vacuum induction melting furnace is used for smelting and precise casting for iron-based, nickle-based, high temperature alloy and other precise alloy, magnetic materials.
2. Composition
the whole set of equipment is made of furnace body, furnace cover, induction coil, sensor, smelting crucible, temperature detector, temperature controller, feeding device, vacuum systems, medium frequency power unit, electrical control cabinet, water cooled device etc.
3. Technical Parameters
| Model | Rated Capacity(KG) | Highest Temperature() | Power(KW) | Power Frequency(Hz) |
| ZPL-5 | 5 | 1800 | 50 | 8000 |
| ZPL-10 | 10 | 1800 | 50 | 4000 |
| ZPL-25 | 25 | 1800 | 100 | 2500 |
| ZPL-50 | 50 | 1800 | 100 | 2500 |
| ZPL-100 | 100 | 1800 | 160 | 2500 |
| ZPL-200 | 200 | 1800 | 250 | 2500 |
| ZPL-300 | 300 | 1800 | 300 | 1500 |
4. Advantages
1. High heating temperature, fast smelting speed.
2. Special type of rapidly-heated and high-temperature ceramic cavity, clean smelting environment;
3. Optimum heating current frequency, extending the life time of the crucible;
4. Global leading induction heating system, stable & reliable;
5. Precise control of heating energy, meeting the requirements for various heating technologies;
6. Smelting under high power factor, quite low harmnoic interference on the power source;
7. Rapid speed of smelting, no loss of any composition of the noble metal;
8. Reliable monitoring of pressure on water of the system, flow rate and temperature;
9. Equipped with refrigerating circulating water cooling system, small space occupied;
10. Automatic casting system can be equipped to adapt to the casting of ingots in bulk;
11. Other specifications can be made according to your requirement.

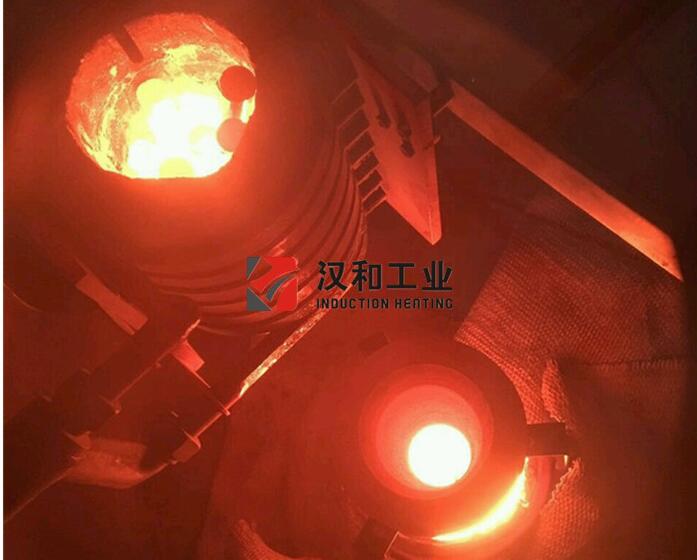

5. Pictures for reference
