| Type: | Wrapping Machine |
|---|---|
| Brand Name: | hnpack |
| Packaging Material: | stretch film wrap machine |
| Packaging Type: | pallet stretch wrap |
| Application: | Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Weight: | 1300KG |
| Dimension(L*W*H): | 3800*2500*4200MM |
| Model Number: | mr402 PALLET wrap |
| Place of Origin: | China (Mainland) |
| Power: | 3kw |
| Voltage: | 380v |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Motor: | Taiwan liming |
| Using: | pallet wrapping machine |
| control system: | PLC control |
Quick Details
Specifications

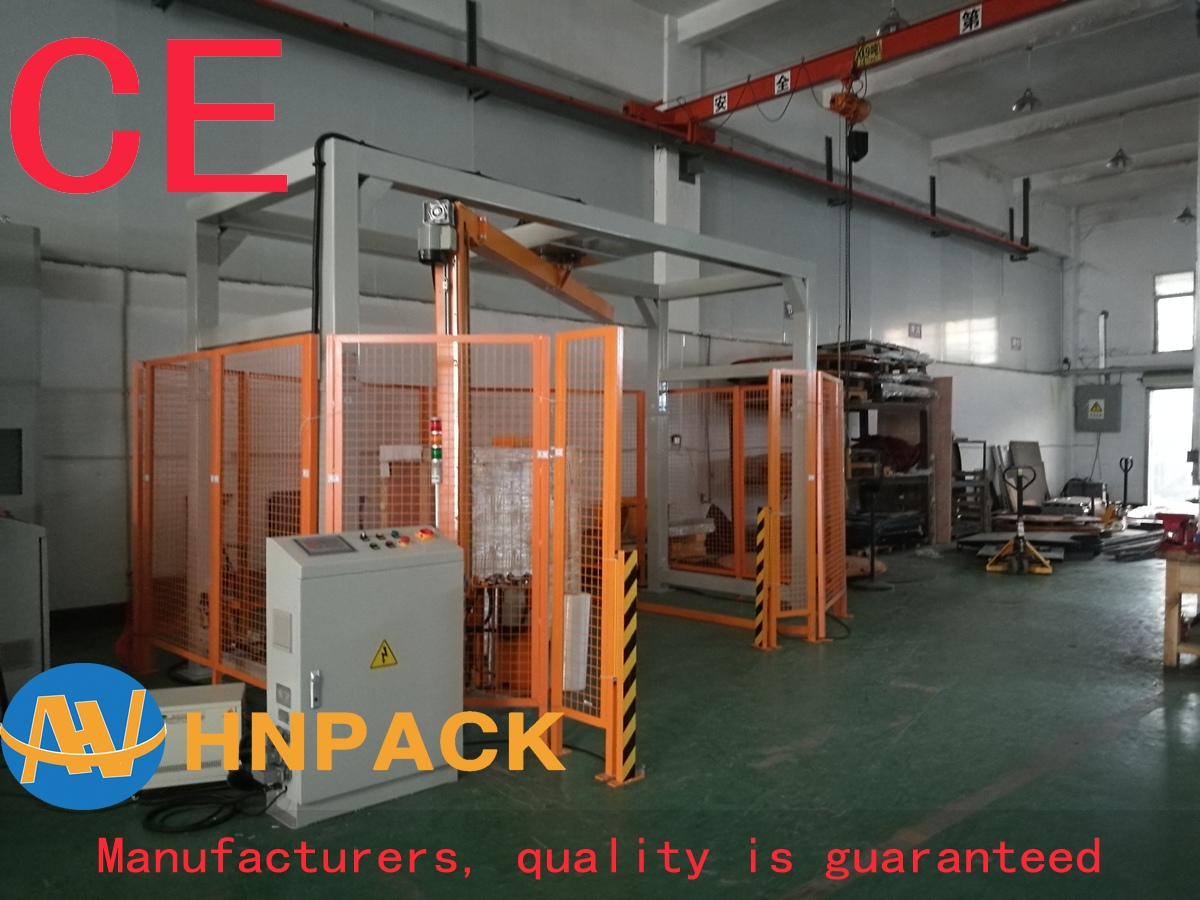

China supply MR402 online Fully Auto pallet Arm Rotary Wrapper manufacturer sell pallet wrap
Fully Auto pallet Arm Rotary Wrapper parameter
Fully Auto pallet Arm Rotary Wrapper professional information
Professional R&D department,can be offer you the OEM/odm service.
2.Technique team support you to slove the testing issue and tell you more information about security system solution;
3.Provide training course for sales,like product technique questions and how to service at customer;
4.We promise:best quality,best price and superior service for cooperation.
5.OEM/ODM and small or large orders all welcome.
Fully Auto pallet Arm Rotary Wrapper parameter| Item | Parameters |
|---|---|
| Pallet size | L(800-1200)mm,W(800-1200)mm,accept customized design |
| Wrapping Height | 1800mm,accept customized design |
| Packing Speed | 20-45 pallets per hour |
| Rotary Speed | 0-20rpm,speed varibale, turntable soft start&soft stop |
| Conveyor Height | 50050mm |
| Carriage Speed | 0-3m/min |
| Air Press | 0.4~0.7 Mpa |
| Cut Method | Heater |
| Control System | PLC program logic control+Touch Screen |
| Working Mode | Fully Auto unmanual |
| Power | 3PH,380VAC(optional),50/60Hz,3kw,20A |
1.MR402 Fully-auto rotary stretch wrapper is conveyorized wrapper for automated unmanned packing lines;
2.Roller,belt,chain,or board type conveying equipments could be used;
3.Work with MT107 Top sheet dispenser,achieve automatically senses & centerize. Wraps film around.Convers the top and conveys the pallets;
4.System could be custom engineered according to specific products and different field requirements,the machine consists of frame,rotary wrapper,motorized conveyors,auto film apply&cut device,top sheet dispensing unit and control box;
5.Ideal for modernized plants in industries such as food &beverage,chemicals,paper making,building materials,electric&electronics,etc;
6.Accept wrapping machine custom design, such as packing speed, color, configuration, performance, appearance, material, wrapping height, loading weight, control system, pallet size and so on.
Professional R&D department,can be offer you the OEM/odm service.
2.Technique team support you to slove the testing issue and tell you more information about security system solution;
3.Provide training course for sales,like product technique questions and how to service at customer;
4.We promise:best quality,best price and superior service for cooperation.
5.OEM/ODM and small or large orders all welcome.
