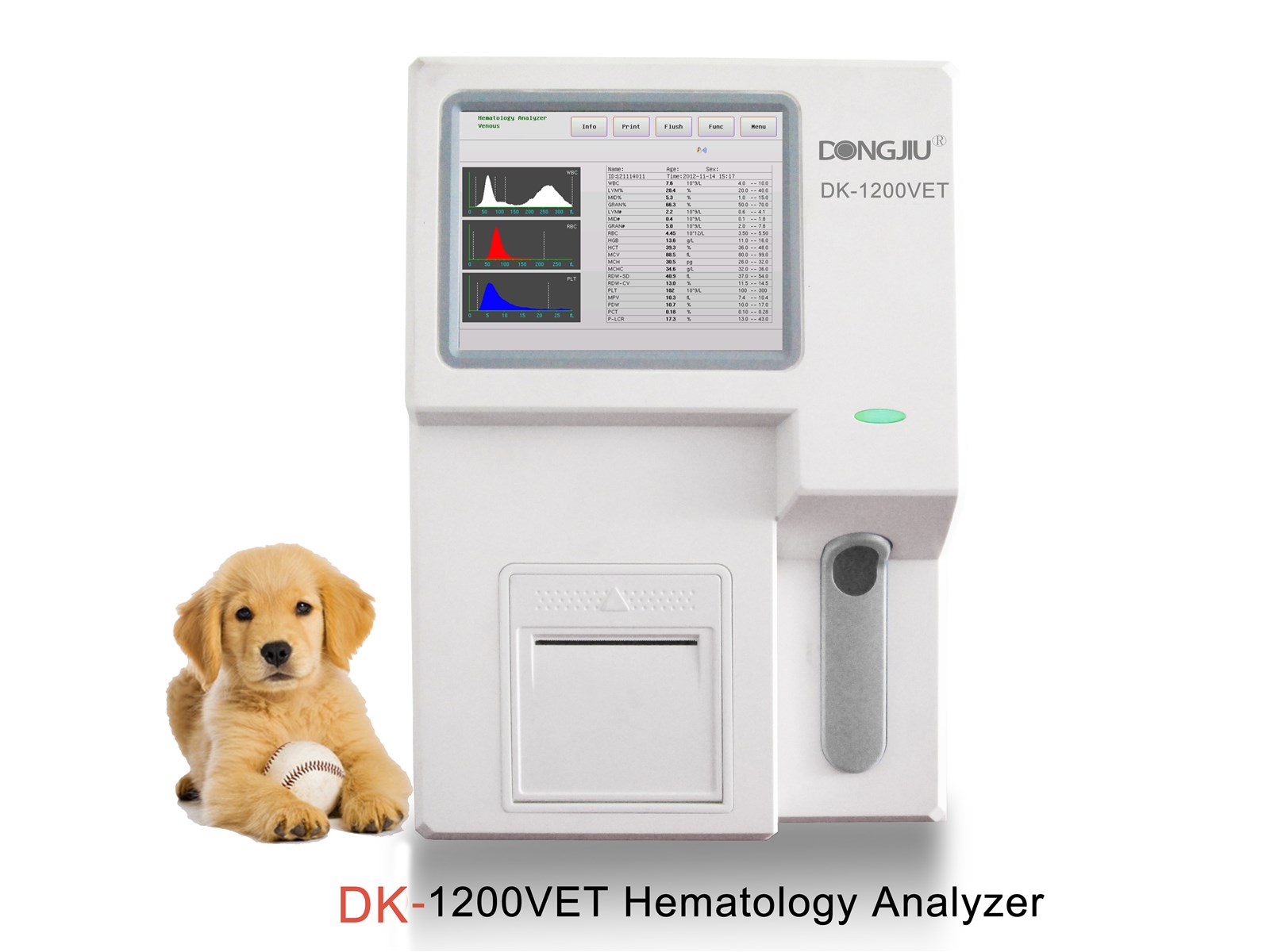

DK-1200VET Auto Hematology Analyzer-dongjiu,Veterinary Equipment Veterinary Hematology Analyzer

General Features

Thoughput: 60T/H

8-inch touch screen

20 parameters + 3 histograms

Sample volume:10ul

2 reagent +1 probe cleaser only

3 counting modes

100,000 sample results

Support LIS and external printer

Net weight:21kg

CE marked

Technical Specifications

Principle:Impedance for cell counting, Cyanide-free method for HGB

Parameters:WBC, Neu#,Lym#,MID#,Neu%,Lym%,MID%,RBC,HGB,HCT,MVC,MCH,MCHC,RDW-SD,RDW-CV,PLT,MPV,PDW,PCT,P-LCR

Histograms:WBC,RBC, PLT histogram

Languages:English, French, Spanish, Portuguese,etc.

Calibration:Manual and Auto-calibration

Quality control:3 level QC,LJ graph

Sample volume:Venous mode:10ul venous blood; Capillary mode:10ul capillary blood; Prediluted:20ul capillary blood

Display:8 inch color touch screen, Liquid Crystal Display(LCD), Resolution:800600

Storage:100,000 sample results with  histograms

Reagent:Lyse(500ml) and Diluent(20L)

Printout:Thermal printer, support external printer

Temperature:18-35

Power:AC 100-240V 50/601HZ

Dimension:410mm435mm472mm

Species:Canine,Feline,Equine,Porcine,Bovine,Ovine,Simian,Murine,etc.

Performance

Precision

Parameters	Precision(CV)
WBC	2.0% (7.0-15.0109)/L
RBC	1.9% (3.5-6.01012)/L
HGB	1.9% (110.0-180.0g)/L
MCV	0.4% (80.0-110.0g)/fL
PLT	4.0% (100.0-500.0109)/L

Measurement range

Parameters	Measurement range
WBC	(0-99.9109)/L
RBC	(0-99.91012)/L
HGB	(0-300.0)g/L
PLT	(0-999109)/L
