| Warranty: | 2 years |
|---|---|
| Certification: | CE |
| Voltage: | 90-260V |
| Is Dimmable: | No |
| Brand Name: | ourving |
| Material: | Aluminum |
| Power Source: | AC |
| Power Tolerance: | 3% |
| Model Number: | XTD-B-1/2/5/10/15 |
| Application: | Pubnic area, commercial lighting |
| Place of origin: | Shenzhen China |
| Apperance: | Array design |
| Installation: | Cut a hole or groove on ceiling |
| Unit Type: | lot (4 pieces/lot) |
| Package Size: | 45cm x 40cm x 10cm (17.72in x 15.75in x 3.94in) |
| Package Weight: | 7.0kg (15.43lb.) |
Quick Details
Specifications
S
Feature
Integrated whole housing design with seprated light source per 2W, No glare, No insufficient heat dispassion.
Uniform Illumination for every singe light source units, beauty & artistic style.
15/30/45º beam angle optioanl, Whole ADC12 materil with fine white coating finish.
Description

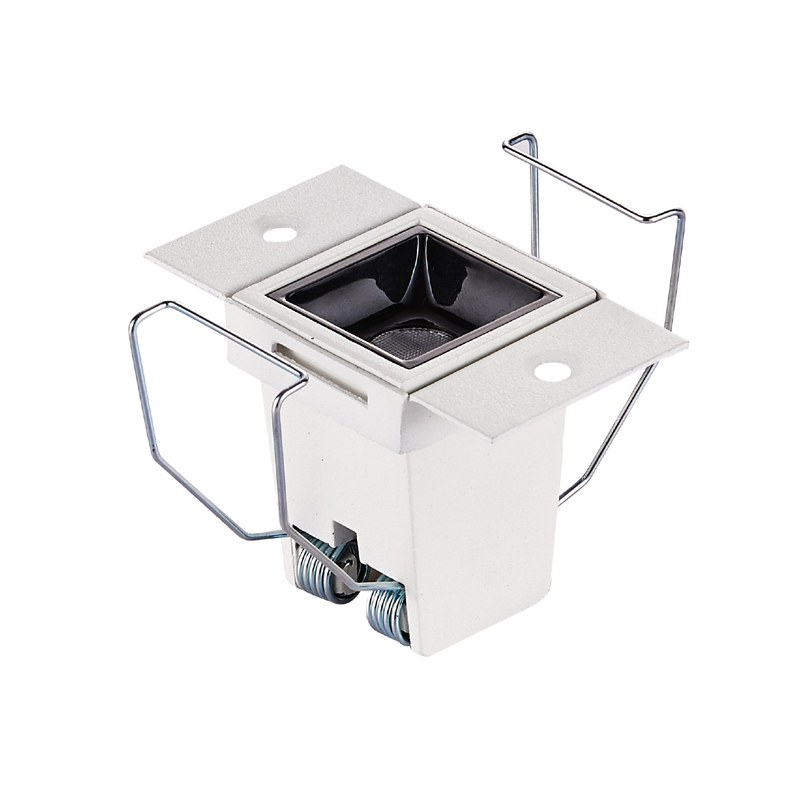

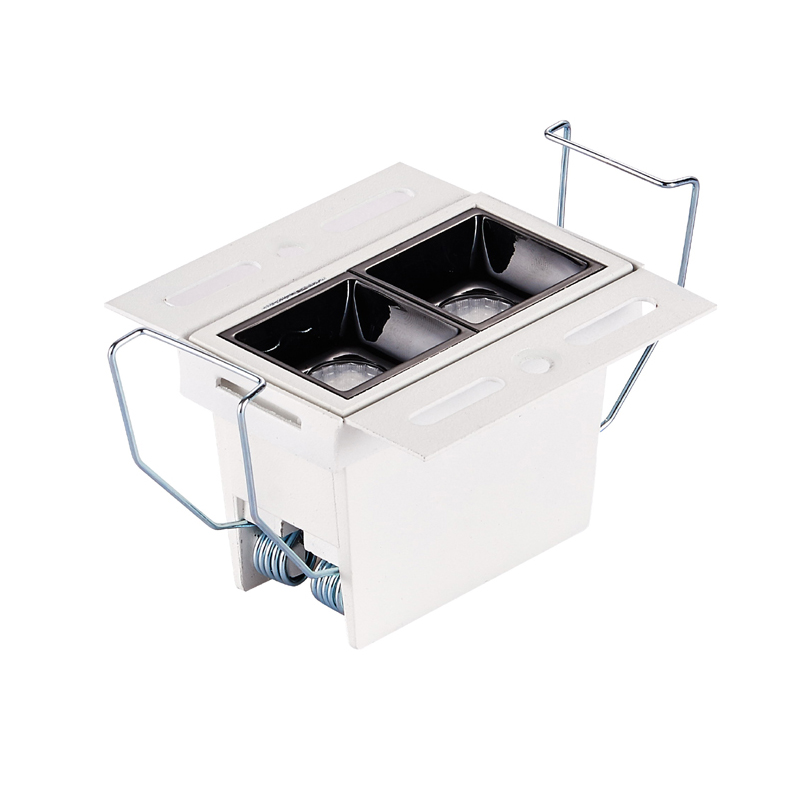

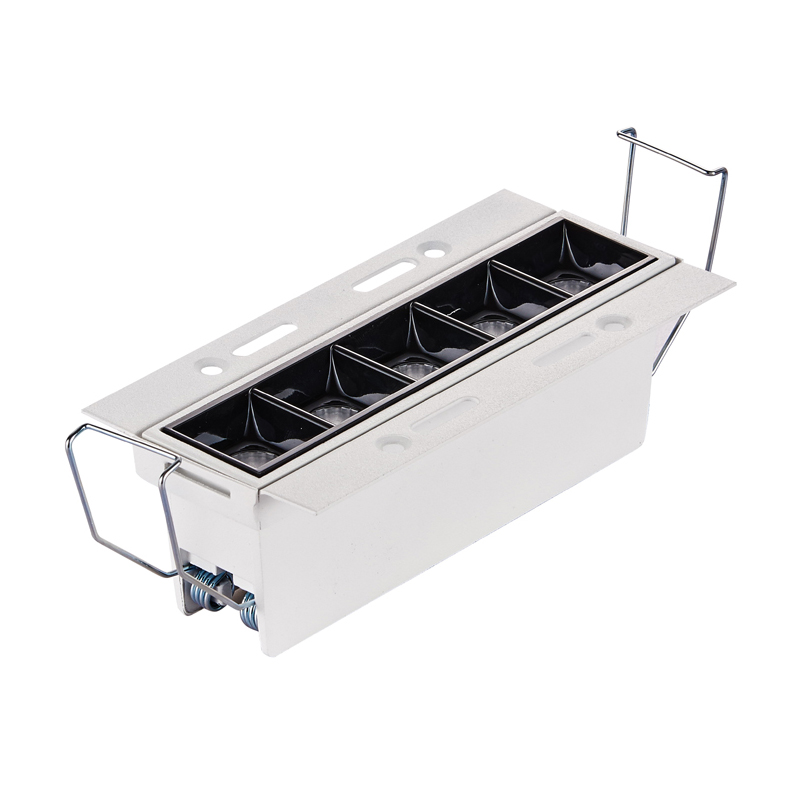

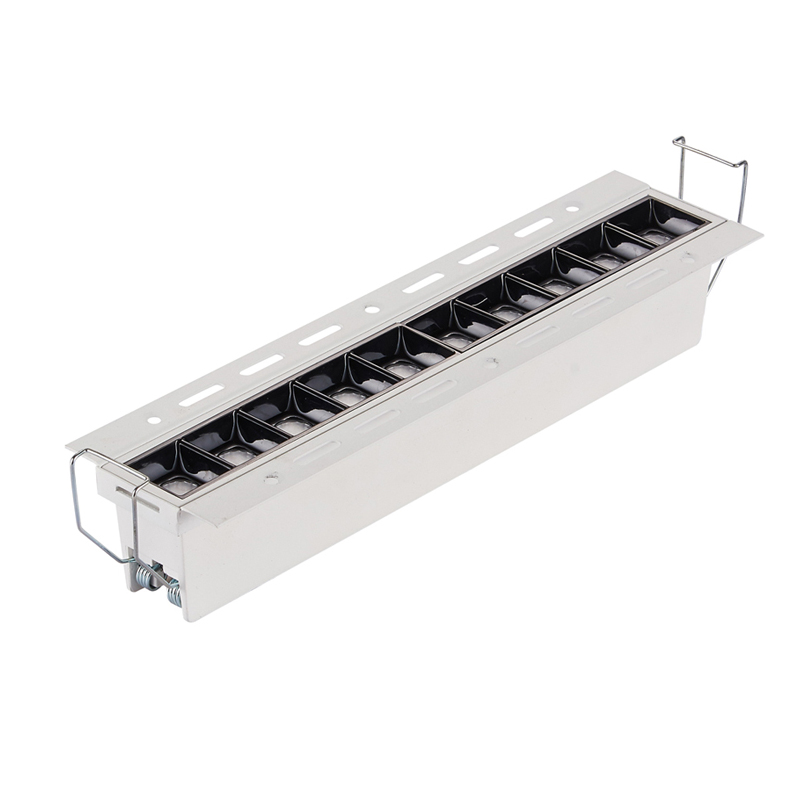

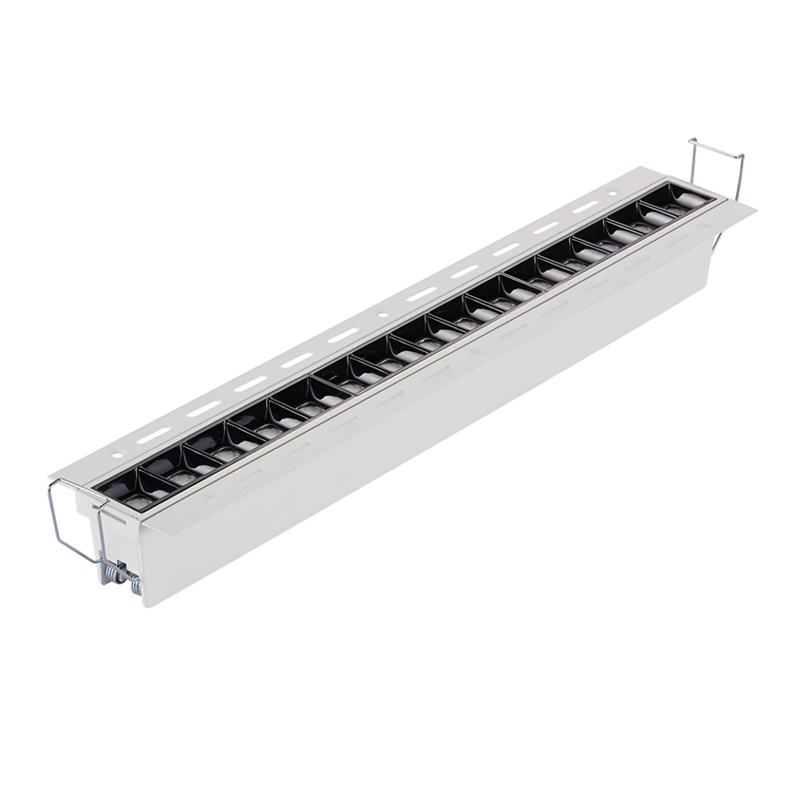

| Item | OWXTD-B-01 | OWXTD-B-02 | OWXTD-B-05 | OWXTD-B-10 | OWXTD-B-15 |
| DIM | 39*71*49mm | 68*71*49mm | 142*71*49mm | 274*71*49mm | 407*71*49mm |
| Cut Hole | 42*41mm | 72*41mm | 145*41mm | 277*41mm | 410*41mm |
| Power | 2W | 4W | 10W | 20W | 30W
|
| LED QTY | 1*2W | 2*2W | 5*2W | 10*2W | 15*2W |
| Lumen | 140LM | 280LM | 700LM | 1400LM | 2100LM
|
|
|
|||||
LED driver: Isolated CE/TUV/SAA approval
Frequency range: 50Hz-60Hz
Power factor: 0.9
LED chips: COB
Luminous efficency: 85lm/w

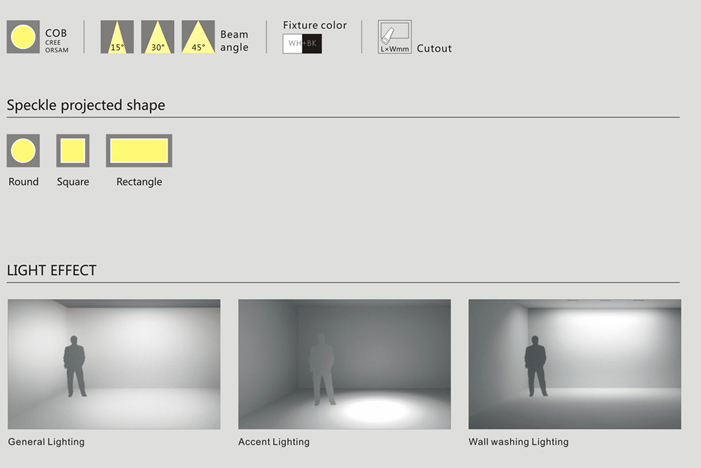

Beam angle
15/30/45 degree( optional)
CRI 90Ra
Color temperature: 2700-3200K; 3900-5000K; 5800-6200K
Light desgin: LED+reflector
Working temp.: -40 ~ +45 degree Celsius
Finish: Fine coating white

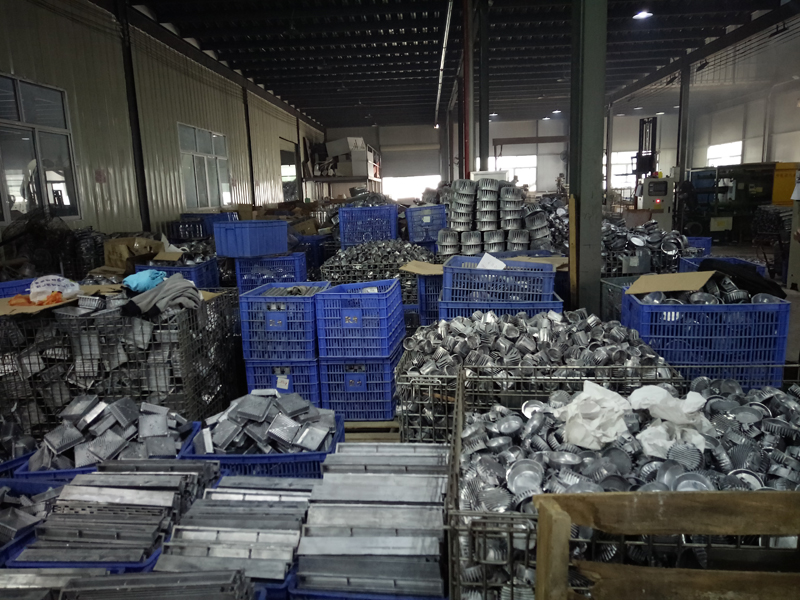

Professional die casting factory show
