| Type: | Wrapping Machine |
|---|---|
| Brand Name: | hnpack |
| Packaging Material: | Automatic Pallet Wrapper with Top Sheet Dispenser |
| Packaging Type: | Film |
| Application: | Apparel,Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical,Textiles,Automatic Pallet Wrapper with Top Sheet Dispenser |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Weight: | 1500kg |
| Dimension(L*W*H): | 2960 x 2625 x 3100mm |
| Model Number: | MS207CR |
| Place of Origin: | China (Mainland) |
| Power: | 3KW |
| Voltage: | 380V |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| Application: | PALLET PACKING MACHINE |
| Control system: | PLC control |
| packing speed: | 20pallets/Hour |
Quick Details
Specifications
China pallet wrapper manufacturer supply Automatic Pallet Wrapper with Top Sheet Dispenser supplier
China pallet wrapper manufacturer supply Automatic Pallet Wrapper with Top Sheet Dispenser suppliermain performance parameter
China pallet wrapper manufacturer supply Automatic Pallet Wrapper with Top Sheet Dispenser suppliermain performance parameterFeatures:
>> Two working mode choices: wrapping, or wrapping with top sheet dispensing.
>> PLC controlled, easy wrapping program setting.
>> Automatic stretch film clamp & cut, pneumatically driven.
>> Remote control device fitted. Machine start on control panel or remote controller.
>> Automatic film welding device for perfect film tail handling.
>> Film tension, turntable speed & carriage speed adjustable on panel.
>> Power stretch film carriage, ratio 250%, film savings.
>> Automatic wrapping according to pre-set parameters. Manual wrap mode as an option.
>> Auto height detection, machine home position, forklift sockets for easy moving.
>> Multiple safety protection measures for ensured operator safety.

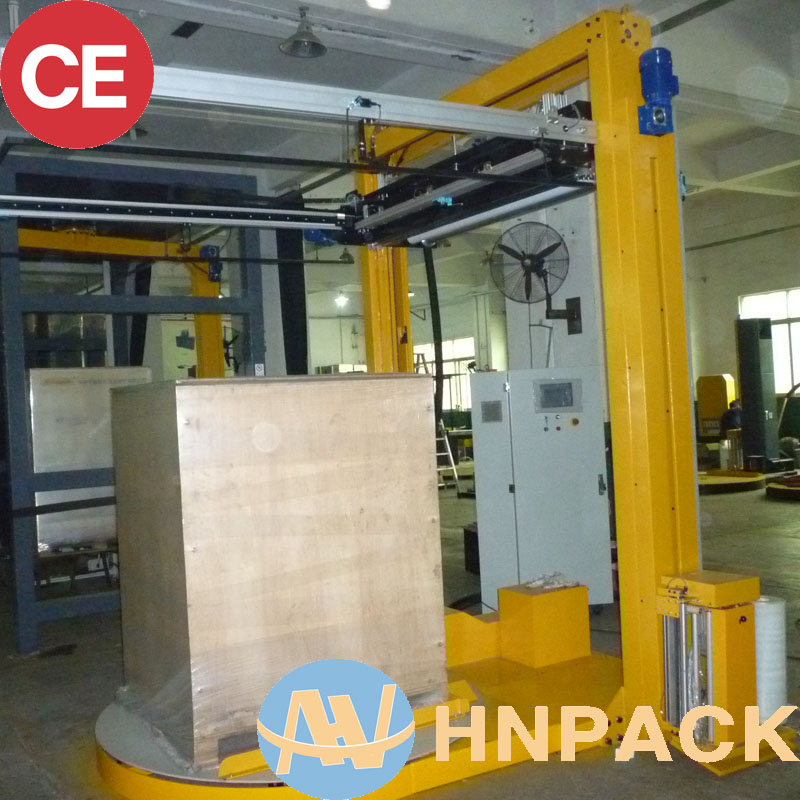

Automatic Pallet Wrapper with Top Sheet Dispenser specificationTurntable diameter: 1800mm
Wrapping height: 2100mm
Loading weight: 2000kgs
Packing speed: 20-30 pallets/hour
Turntable speed: 3-15rpm, turntable soft start & soft stop
Turntable Height: 136mm
Air Pressure: 0.4-0.7Mpa
Top dispensing unit lifting speed: 5m/min
Top sheet pulling speed: 12m/min
Top sheet size: Width 1700mm,Length variable
Cut method: instant heater
Wrapping settings: wrapping cycles /top wraps /bottom wraps /overwrap
Carriage speed: 5m/min max
Power: 3PH 380VAC, 50/60Hz, 20A, 3kw
Machine Dimensions: 2960 x 2625 x 3100
Machine Weight: 1500kg
Film type: stretch film thickness 17-35microns, width 450-500mm, paper core 76mm, max weight 15kgs
Top Sheet type: PE film, thickness 50-75microns, width1600-1800mm, net weight 120kgs max
Automatic Pallet Wrapper with Top Sheet Dispenser Factory advantage1.Professional R&D department,can be offer you the OEM/odm service.
2.Technique team support you to slove the testing issue and tell you more information about security system solution;
3.Provide training course for sales,like product technique questions and how to service at customer;
4.We promise:best quality,best price and superior service for cooperation.
5.OEM/ODM and small or large orders all welcome.
