| Use: | Truck Trailer |
|---|---|
| Brand Name: | HYCH |
| Max Payload: | 30t |
| Size: | 13000*2500*1500mm |
| Material: | Steel |
| Use: | Transport 20ft 40ft Container |
| Place of Origin: | China (Mainland) |
| Certification: | |
| Type: | Semi-Trailer |
| Product name: | 40ft container trailer |
| Axle Brand: | BPW/FUWA |
| Suspension: | Mechanical Suspension |
| Tire: | 12R22.5 |
| Function: | Transport 20ft 40ft Container |
| Landing Gear: | Heavy Duty Landing Gear |
| King pin: | 2"(50mm)or3.5"(90mm) JOST |
| Color: | Customers Optional |
| Axle capacity: | 13T |
| leaf spring: | leaf spring or air bag |
Quick Details
Specifications

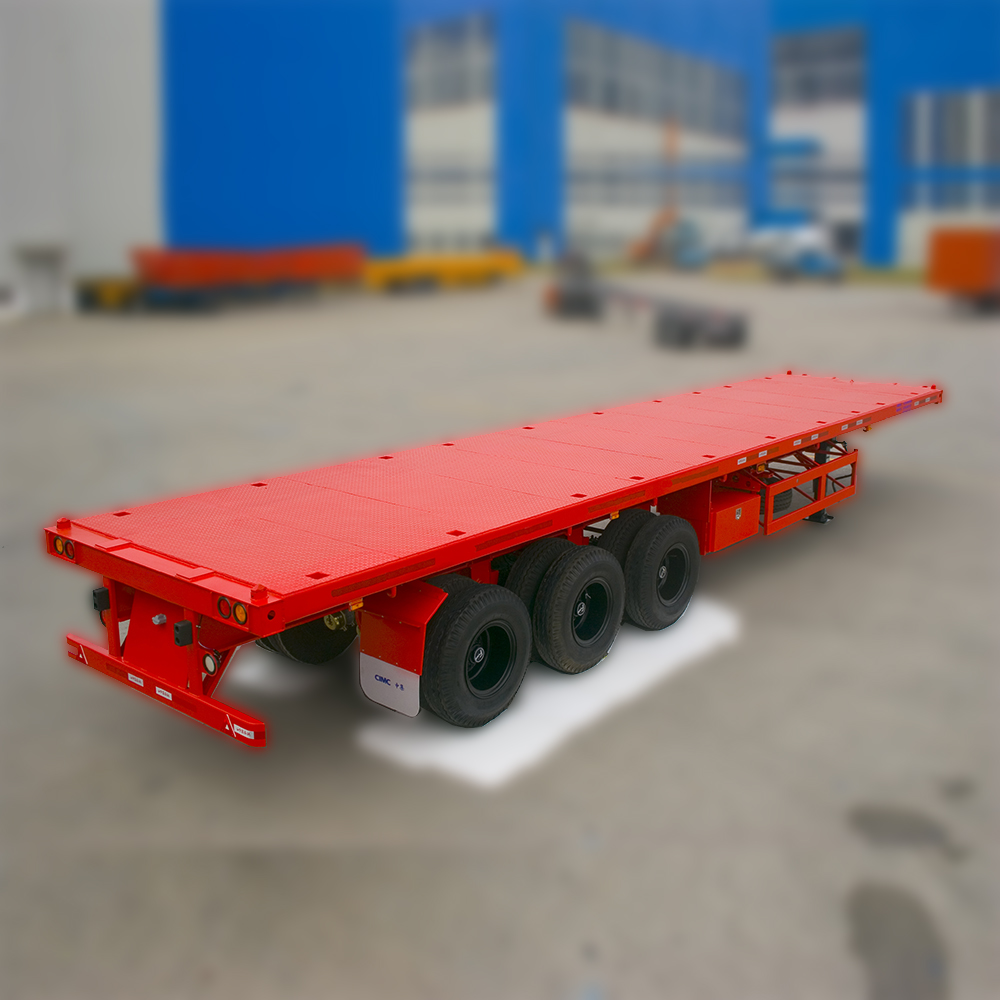

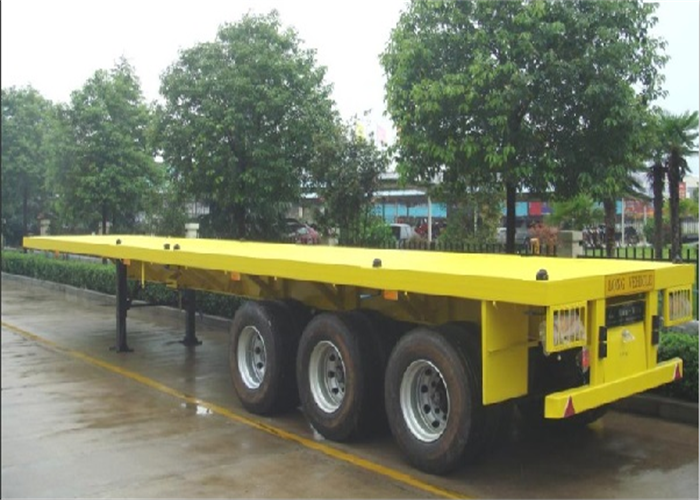

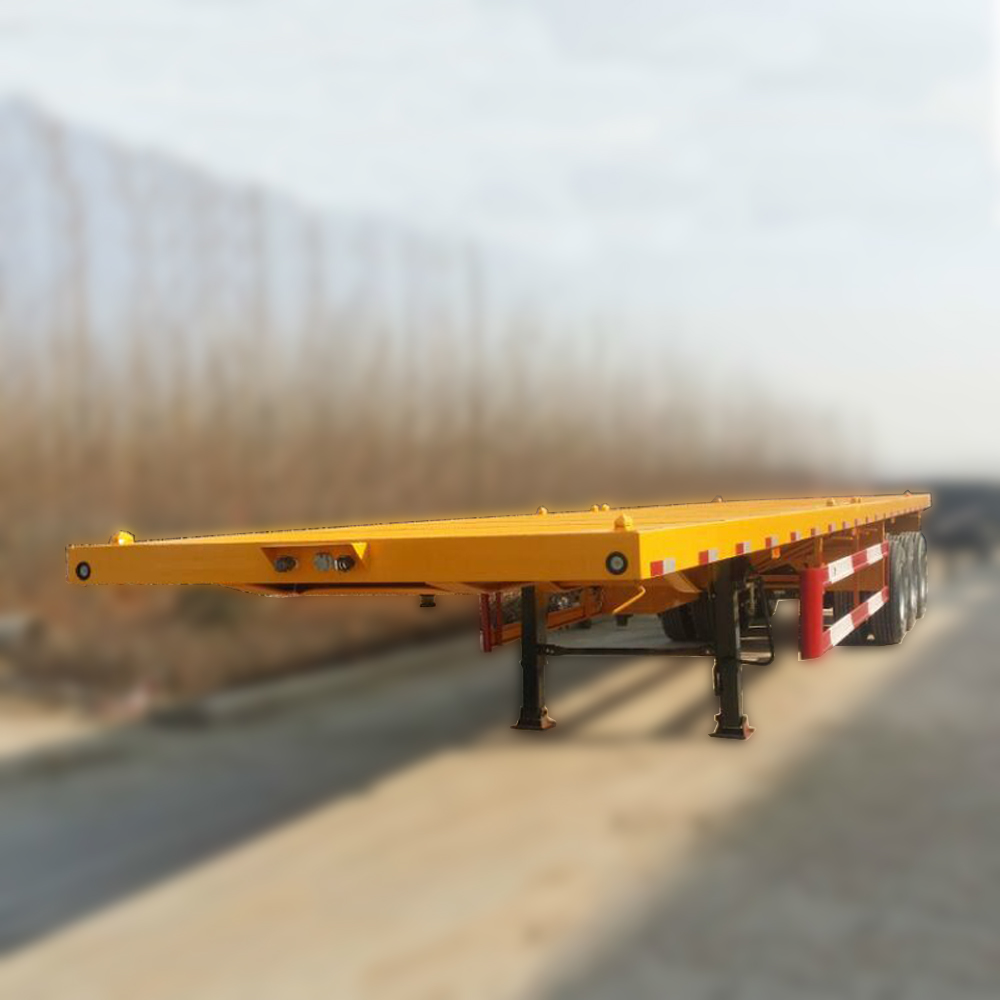

20ft 40ft 3 Axle flatbed semi trailer for sale
1.Product Information
Flat bed semi trailer is using on carring cargo or containers, such as 20ft,40ft, it loads up to 60tons, the body is heavy duty and extra durability designed l beam;opting for high tensile steel with T700, welded by automatic submerged-Arc processes. Very stability to transfort containers.
2.Technical Parameters
3.Related Products
4.Our Factory
Shandong HYCH Vehicle Co., Ltd is the leading manufacturer of semi-trailer in China, with over 20 years production experience, the durable quality, competitive price, reliable after-sale service for around world customers.
Currently we have 70 sets producing machines, 65000 square meter workshops, independent research & develop department, totally over 560 workers and 60 technicians, we are ability to design the satisfying products for you.
so far we already exports to 60 countries, such as: Argentina, Chile, the Philippines, Vietnam, Malaysia, Thailand, Kenya, Djibouti, Ethiopia, Malawi, Uganda, Zimbabwe, Zambia, Algeria, Sudan, Pakistan ect. Our goal is to achieve win-win cooperation!
5.Customer Visist
7.Spare Parts
8.Contact Us
Flat bed semi trailer is using on carring cargo or containers, such as 20ft,40ft, it loads up to 60tons, the body is heavy duty and extra durability designed l beam;opting for high tensile steel with T700, welded by automatic submerged-Arc processes. Very stability to transfort containers.
2.Technical Parameters
Dimension | ||||||||||
Tare weight |
7000kg |
Payload |
55000kg | |||||||
Overall length |
13000mm |
Overall width |
2500mm |
Overall height |
1500mm | |||||
SPECIFICATION | ||||||||||
Chassis |
Heavy duty and extra durability designed l beam;opting for high tensile steel Q345,welded by automatic submerged-Arc processes.Top flange 14mm,width 140mm;middle Flange 8mm;bottom flange 16mm,width 140mm | |||||||||
Axle |
Number |
3 |
Brand |
Optional upon choice |
Capacity |
13T | ||||
Suspension |
Mechanical suspension or air suspension | |||||||||
Leaf spring |
Leaf spring or air bag | |||||||||
Floor |
Checkered plate | |||||||||
Tire |
11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional | |||||||||
Wheel rim |
8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice | |||||||||
Kingpin |
2"/3.5" bolt-in king pin | |||||||||
Landing gear |
JOST Brand two-speed,manual operation,heavy duty landing gear | |||||||||
Twist lock |
12 no. of ISO twist lock for 1x20ft,2x20ft,1x40ft container | |||||||||
Vehicular |
Container (20ft,40ft...) transport | |||||||||
Braking system |
WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks. | |||||||||
Painting |
Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | |||||||||
Accessories |
1 standard tool box | |||||||||
Spare tire |
2 spare tire carrier without spare tires | |||||||||
4.Our Factory
Shandong HYCH Vehicle Co., Ltd is the leading manufacturer of semi-trailer in China, with over 20 years production experience, the durable quality, competitive price, reliable after-sale service for around world customers.
Currently we have 70 sets producing machines, 65000 square meter workshops, independent research & develop department, totally over 560 workers and 60 technicians, we are ability to design the satisfying products for you.
so far we already exports to 60 countries, such as: Argentina, Chile, the Philippines, Vietnam, Malaysia, Thailand, Kenya, Djibouti, Ethiopia, Malawi, Uganda, Zimbabwe, Zambia, Algeria, Sudan, Pakistan ect. Our goal is to achieve win-win cooperation!
