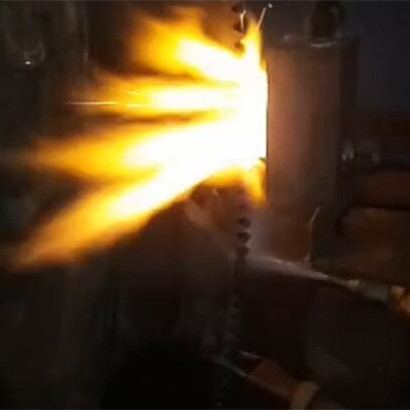

Flame hardening machine for increase circular saw blade teeth to 30-60HRC


1.Brief Introduction:



for tooth tip heat treatment of saw blade diameters 1200-2500 mm,



Thickness: 8 -16 mm with flame hardening



2.Techincal parameters:

Saw blade size	1200 x 8 mm 2500 x 16 mm
Method of heat treatment	Flame hardening
Capacity: approx	10-30 saw blades per 8h shift
Dimensions	2500 x 1200 x 2000 mm
Weight	Approx. 1500 kg
Total installed capacity	1 kW/380 V/50 Hz
Compressed air supply	Approx. 4-7 bars





3.Performance features:

Extremely robust structure for long lasting, trouble free operation with minimum maintenance requirements because of a sturdy machine frame made as a welded assembly.



Easiest adjustments and operation with no particular skills required



Unique burner design warrants reliable warming of the tooth tip to the spot with excellent visibility to the conversion process



Quick machining of the saw blade given by high cycle and advance speeds



Reliably prevents surface hardening of the tooth gullets and ensures reproducibly high hardening results (substantially superior to the induction hardening process)
