| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | one year |
| Weight: | 24000kg |
| Dimension(L*W*H): | 3290 *1370 *2875 mm |
| Brand Name: | QIANHUI |
| Certification: | ISO9001-2008 |
| Power(W): | 11kw |
| Voltage: | 380/415/220/440 |
| Model Number: | BG137x270x15L |
| Place of Origin: | China (Mainland) |
| Type: | |
| Condition: | New |
Quick Details
Specifications
through many years' practice and continuous improvement, we introduced newest model veneer drying hot pressing machine with the advantages of much more convenient, high efficience and energy-saving. It is generally used in core veneer's dehumidification, drying an leveling.
Production of plywood veneer dryer is the main equipment.

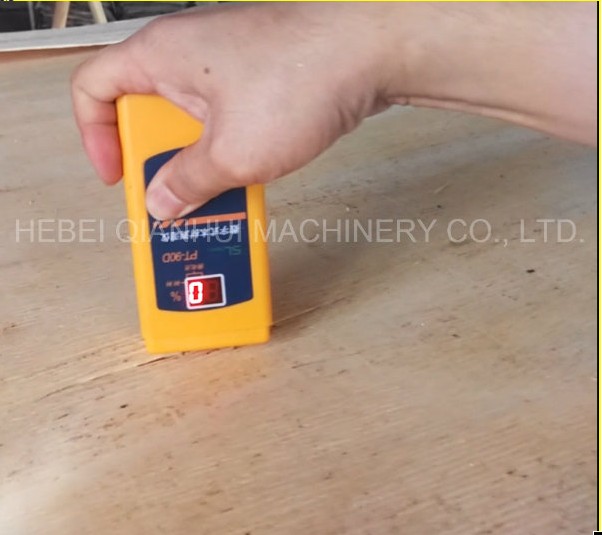

Just peeling off the veneer moisture content is very high, veneer drying machine is mainly used for drying veneer, which is based on the economy, the loss of the smallest on the plate means to reduce the moisture content of the board to reach process requirements.
Specification:
15 Layers Veneer Dryer Machine (with Synchroniz Closing System)
No. of Layers: 15 Layers
Layer Distance: 60 mm
No. of Hot Platens: 16 pcs
Hot Platens Size: 1370 x 2700 x42 mm (Solid Platens)
Cylinder Size: 180 x 900 mm
Cylinder No.: 2 pcs
Nominal Gross Pressure: 1000 KN
Motor Power: 11kw
Closing Time: 10 s
Hydraulic System Pressure: 8 Mpa
Heating Medium: Thermal Oil / Steam Water
Dimension: 3290 x 1370 x 2875 mm
Weight: 24000 kg

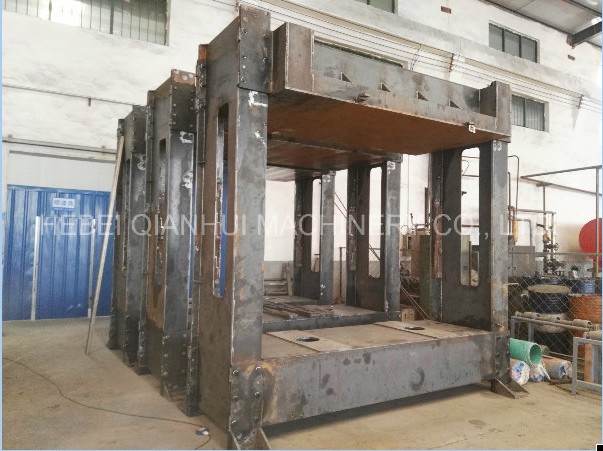

Detailed Photos:
Production of plywood veneer dryer is the main equipment.
Just peeling off the veneer moisture content is very high, veneer drying machine is mainly used for drying veneer, which is based on the economy, the loss of the smallest on the plate means to reduce the moisture content of the board to reach process requirements.
Specification:
15 Layers Veneer Dryer Machine (with Synchroniz Closing System)
No. of Layers: 15 Layers
Layer Distance: 60 mm
No. of Hot Platens: 16 pcs
Hot Platens Size: 1370 x 2700 x42 mm (Solid Platens)
Cylinder Size: 180 x 900 mm
Cylinder No.: 2 pcs
Nominal Gross Pressure: 1000 KN
Motor Power: 11kw
Closing Time: 10 s
Hydraulic System Pressure: 8 Mpa
Heating Medium: Thermal Oil / Steam Water
Dimension: 3290 x 1370 x 2875 mm
Weight: 24000 kg
Detailed Photos:
Key Features

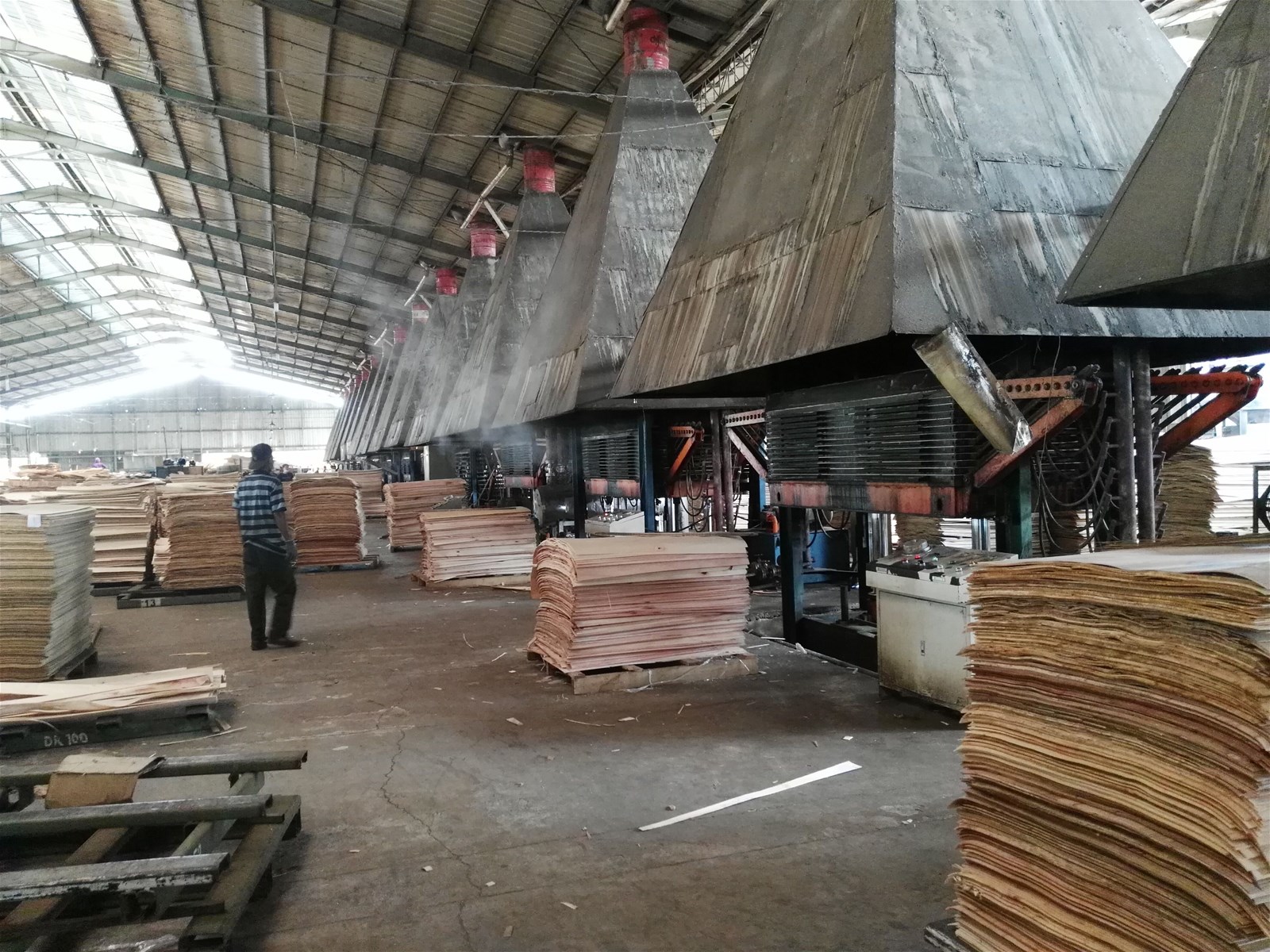

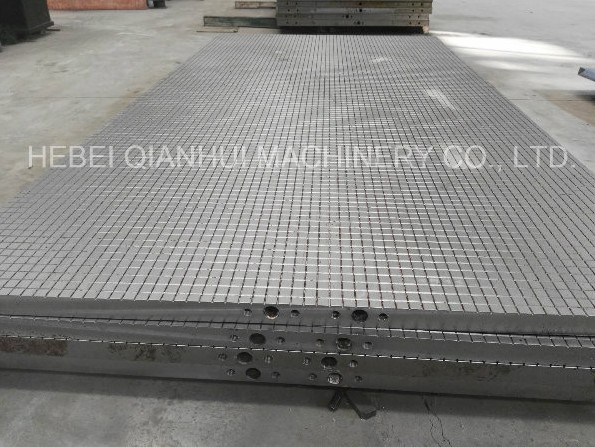

1. this is hot press breath type veneer dryer,the Hot platens are solid platens like hot press machines,and the surface of the Platens are milled with grooves,so the water will come out soon after press . this structure makes it very efficient and productive,its drying Capacity is 35m/ day 24 hours.We have many customers in Indonesia and India Using this type dryer.
2. Its motor power only 13kw,average electricity Consumption only 5kw/ hour,so the drying cost is very low.
3. It can be heated by steam water or oil,so you can Use steam boiler or oil boiler,and you can burn waste wood to heat the boilers. Cost is very low.
4. as the veneer is pressed by solid hot platens When working, so veneer will because very flat after dry, and the veneer spoil Rate is very low.
5.It is equipped with the pinion and rack balancing System to keep the machines runs smoothly
6.Synchronize close system used,to guarantee that
All the layers close at the same time
