| Item Type: | Laser Flashlight |
|---|---|
| Model Number: | H93808100L110-AL01A |
| Unit Type: | piece |
| Package Size: | 23cm x 18cm x 2cm (9.06in x 7.09in x 0.79in) |
| Package Weight: | 0.1kg (0.22lb.) |
Quick Details

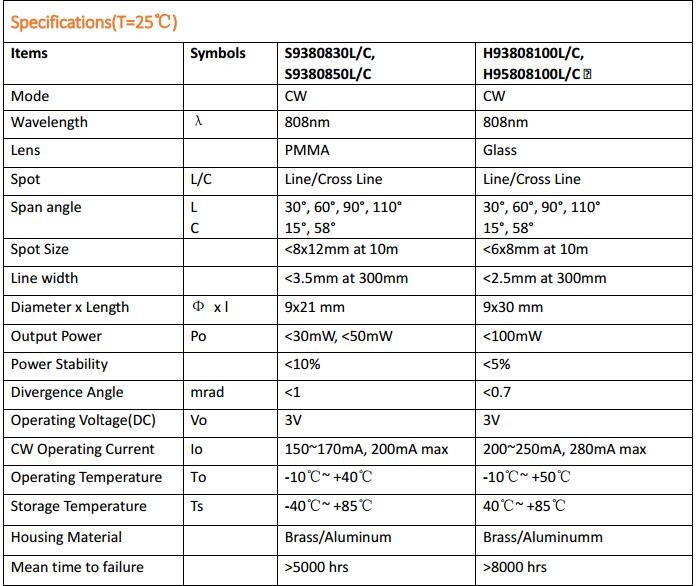

Specifications
High-End 9mm 808nm 100mw 110 degree line (H93808100L110-AL01A)
Application
Industrial areas / Medical / Biochemical / Laser Tag

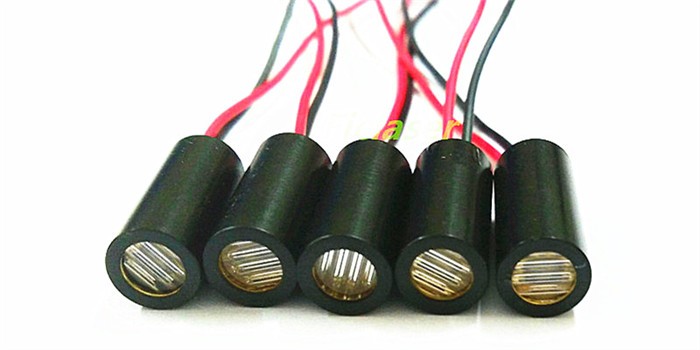

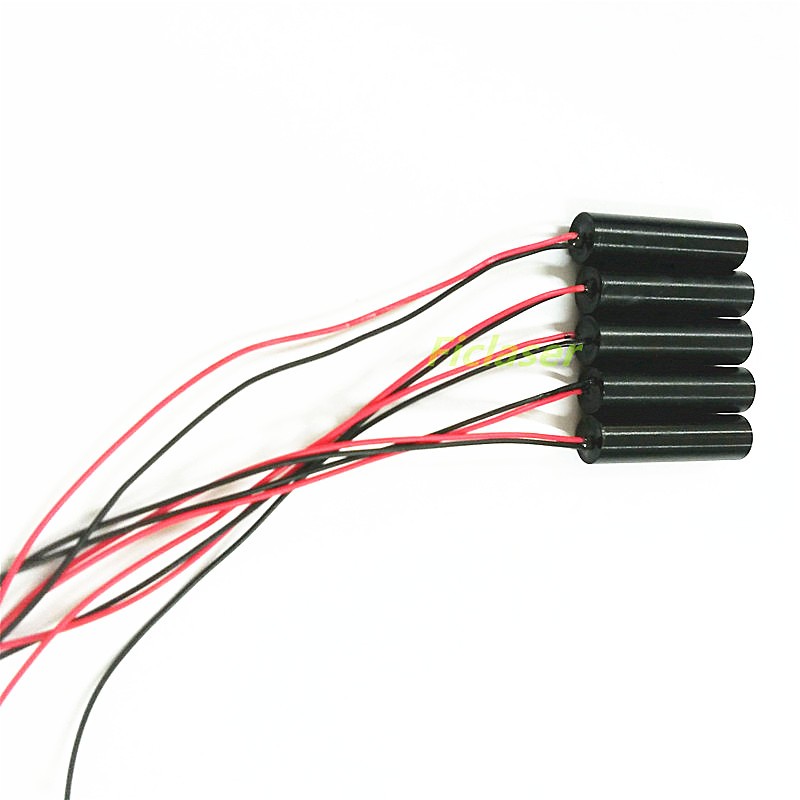

Item Pictures
Cstomized Laser Moudle
Any part or specification of each module can be modified.
We divide a laser diode module structure into 4 main sections:
- a laser diode
- an optical lens
- a laser driver circuit
- optical and mechanical properties
1. Laser diode:
-Main characteristics of laser diode: wavelength, output power, and operating temperature
2. Optical Lens:
- Main characteristics for the beam collimation: divergence angle, laser spot size

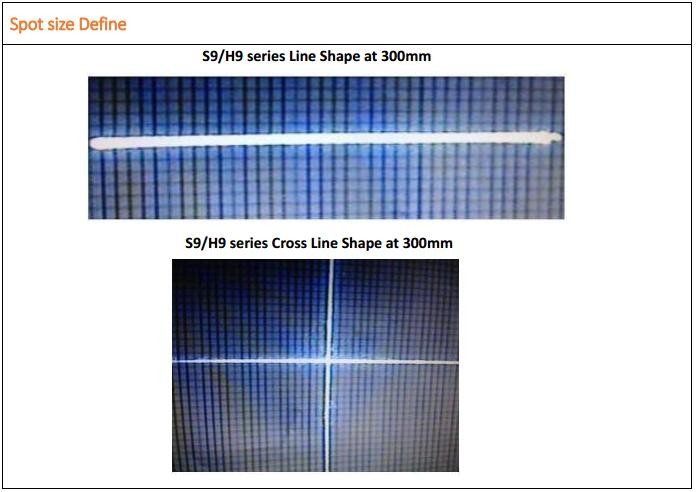

- Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE
3. Laser Driver Circuit:
The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).
An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.
An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.
4. Optical and mechanical properties:
-Main characteristics for mechanical requirements: dimension requirements, boresight or called coaxial angel accuracy of laser module.
