| Item Type: | Indicator Lights |
|---|---|
| Model Number: | AD22-22ES Indicator Lights |
| Brand Name: | sweideer |
| In: | 20mA |
| No: | AD22-22ES |
| Mounting size: | 16mm |
| Life of continuous working : | 30000h |
| Unit Type: | lot (50 pieces/lot) |
| Package Size: | 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in) |
| Package Weight: | 1.0kg (2.20lb.) |
Quick Details
Specifications
Red 10Pcs
Green 10Pcs
Yellow 10Pcs
Blue 10Pcs
White 10Pcs
Place an order note: Voltage
(AC/DC 380V 220V 110V 36V 24V 12V)
Specification
1. Model:
AD136-22ES Signal lamp (indicator light, pilot light)
2. Features:
LED round flush lens.
High brightness LED lighting
Fast and easy to install
Mounting size:Φ22/25mm common use
Protection degree of the top part: IP65. IP67 is available on request.
Color: R-red, Y-yellow, B-blue, G-green, W-white
Rated Voltage:6V, 12V, 24V, 110V – AC/DC
220V, 380V, 440V AC
3. Application
This series signal lamp (indicator light, pilot light) are used as indicating, accidental signals and other pilot signal of instrument circuit in the areas of electric power, telecommunication, machinery, marine, textile, printing, mining etc.
4. Technical Parameters
Life of continuous working ≥ 30000h
Allowable instantaneous voltage fluctuation: ±20%
Comparative tracking index (CTI)≥100,flame retardant
Power frequency withstand voltage:2.5kV
Insulation resistance:≥50MΩ

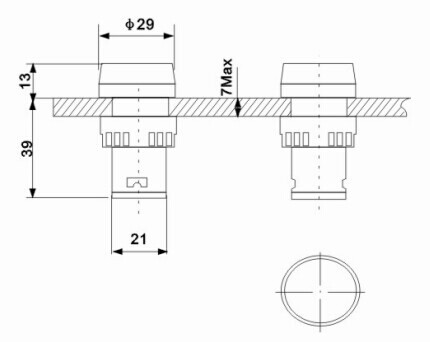

5. Dimension
