Product Main

Quick Details

Brand Name: plusobd
Remote Controlled: No
Type Of Accessory: Special Parts Of Anti-Theft Device
Type: Anti-Theft Device Two-Way
Feature: Gsm Network Remote Real-Time Monitoring
Type Of Remote Control: Without LCD Remote Control
color: black
car maker: for benz A Class W176 B Class W245/246
function: prewarm and precool car
related product: car dvr for benz
language: English, chinese
type: remote engine starter
keyword 1: remote starter
keyword 2: remote car starter
keyword 3: engine preheater
control method: car remote control
Unit Type: piece

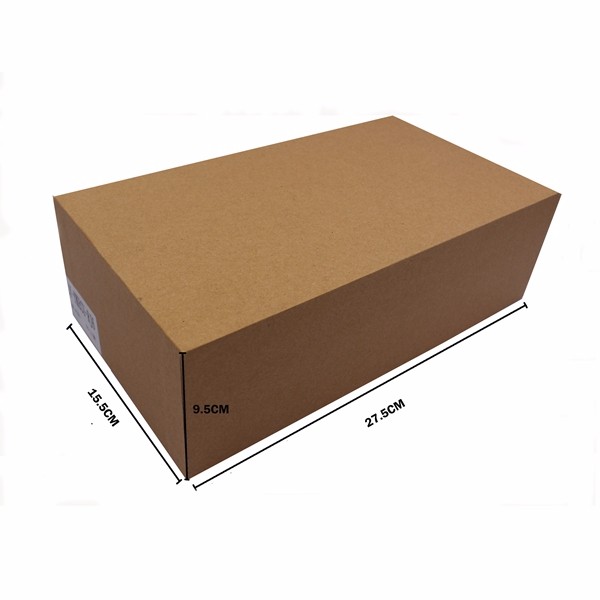

Package Size: 28cm x 16cm x 10cm (11.02in x 6.30in x 3.94in)
Package Weight: 1.0kg (2.20lb.)

Specifications

Car Remote Starter Engine For Benz A Class W176 B Class W245/246 Start W176 For Mercedes Start Stop Car Air Conditioning System

Note: this model is for benz A Class W176 B Class W245/246, please make sure it match your car, or contact us to confirm. thanks.

Please tell us your car model before place ordering, it is specific for certain car model.

For this remote engine starter, it has 2 configurations: one is controlled by original car key, with function of remote engine start(air-conditioning system remote start for preheating and precool), remote engine off. The other configuration is controlled by mobile phone app with multiple functions, which can control your car without distance limitation. This kind is with sim card, so please offer us the APN, user name and password of the sim card you will use on our remote start module. It is important, so we can set it beforehand for your direct use.

Product Description

Functions:

1. remote engine start

The Remote Engine Start is a great feature to have on those hot summer days and cold winter mornings. Using your original car key/ mobile app, you can start engine and A/C system away from the vehicle (at home or in the office). No more having to warm up the vehicle’s engine before driving in the morning or sitting in a hot stuffy car waiting for the A/C to cool it down. Simply get into the vehicle and drive at a comfortable temperature.

Just click" start", your car will be turned on, you can set the time that the engine can turn on( 6-30 minutes).

The air-conditioner have to be pre-set before using remote control.

It is intolerant and unhealthy to get into car in hot summer. It may cause death sometimes( it is not a joke).

In bitter winter, do you want to shiver with cold even get into  car for long time?

With our device, you can restarter your car air conditioner to the comfortable temperature before you get into car, no need to bear severe cold or burning hot.

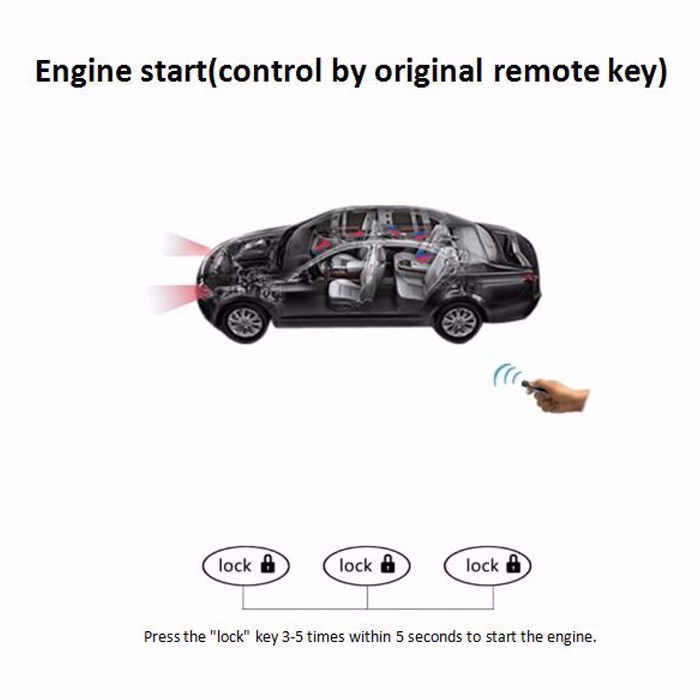

engine start

2016 New Car Accessories For Benz W212 E300 Car Remote Start Engine Preheat Car In Winter And Precool Car In Summer

















































































2016 New Car Accessories For Benz W212 E300 Car Remote Start Engine Preheat Car In Winter And Precool Car In Summer



















































































2.Remote engine turn off

Just click " stop" , the engine will be turnned off

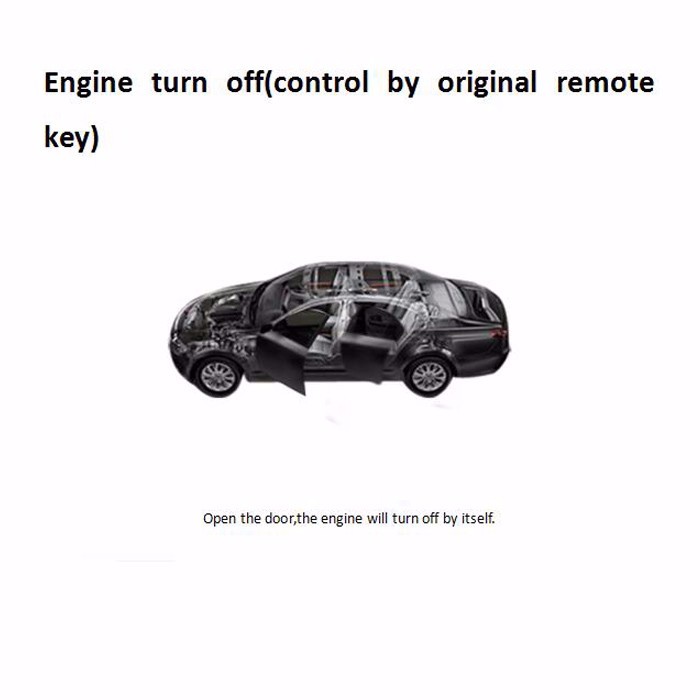

engine turn off



How to work--Button For Start and Exit

Start: Press the lock button on original key for 3 times within 5 seconds, then the remote start engine device start to work. The car alarm light will flash and the horn will ring shortly. The engine will be flameout automatically after 15 minutes. Also, if start car door after the device start working , it also flameout.



Personal choosing button

Horn sounds before starting: turn the dial switch “1” to “ON”, it means to close horn sound, otherwise the sound is on default.

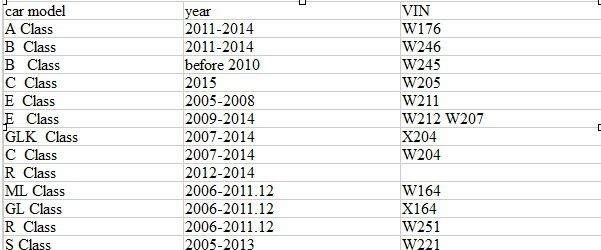

Car coverage:




Working environment:

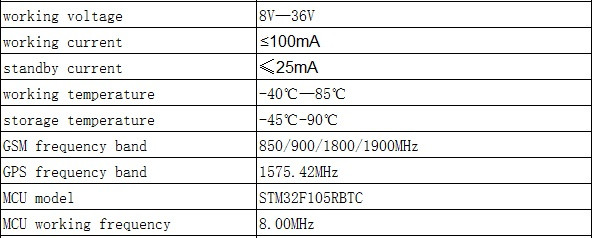

parameters

How to Install:

For your safety and prodct normally work, we strongly advice you to install it by some professional people.

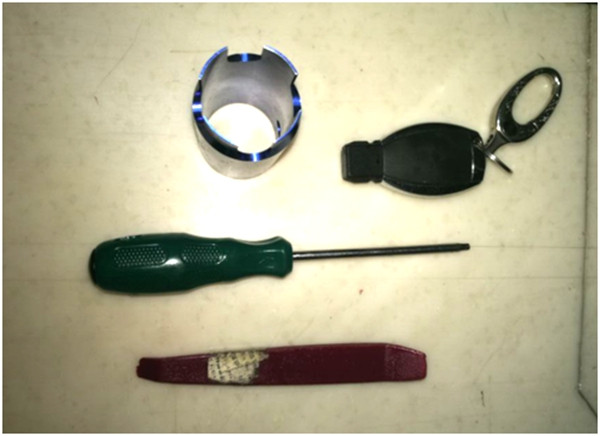

The professional tools you need for install:

1. a pc of 20 spline  2, EIS lock tool 3, a set of special rocker, 4. towels

professional tools

Wiring Diagram:

benz remote control connection

Install steps:

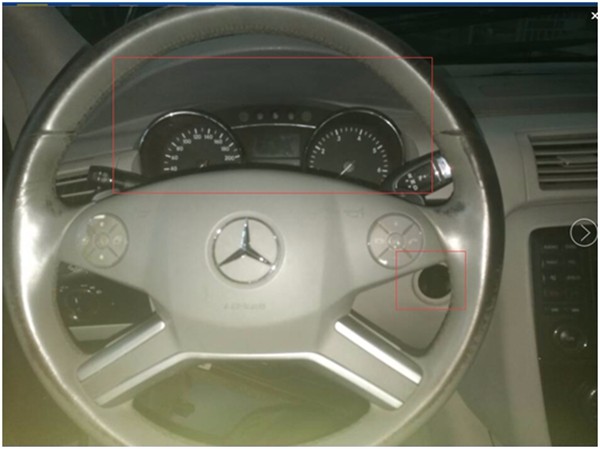

1. The overall instrumentation diagram

1

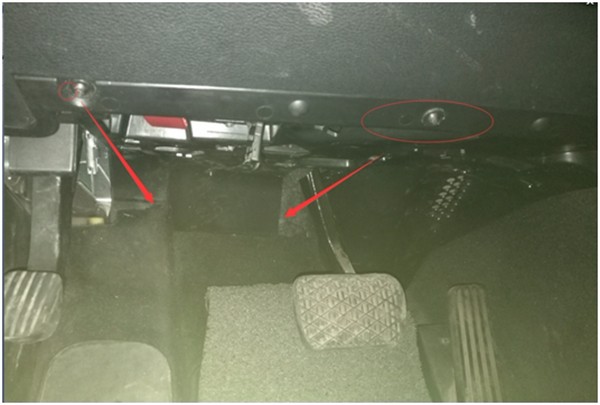

2.Demolition of the driver plate
(Note: remove the screw on the floor , be careful of the OBD line)

2

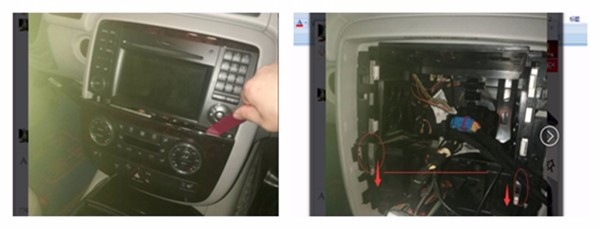

3. Open the host ( Note: there are concealed button)

3

4. Install the module, determine the module installation location (Note:  plug to be in place)

4

5. check if the line and card of the module has been well plugged in



Packaging & Shipping

 Host

3 general converter boxes

Wiring harness

Manual

Warranty card

Certification card

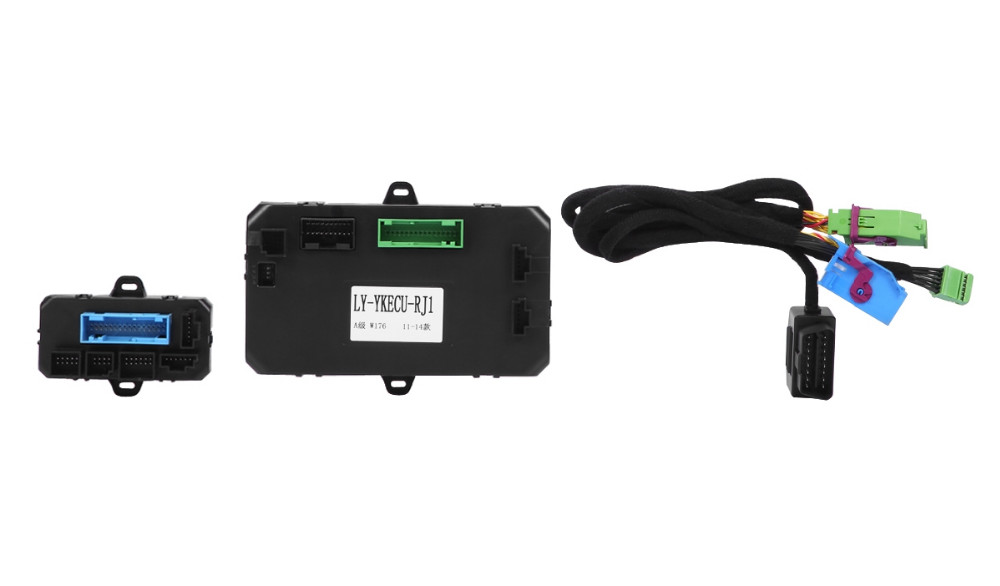

IMG_3943-YKRJ1
