| Item Type: | Starters |
|---|---|
| Warranty: | 7 |
| Peak Voltage: | AC 220V 50 / 60Hz |
| Capacitor: | as description |
| Model Number: | AC 220V |
| Features: | conveniently to let the light auto on/off |
| Brand Name: | MUQGEW |
| Non-Reclosed Voltage: | as description |
| Starter Bulb: | as description |
| Certification: | CCC |
| Start Time: | 5s30s1Min3Min5Min8Min |
| Connection Mode: | As picture |
| Unit Type: | piece |
| Package Size: | 20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in) |
| Package Weight: | 0.05kg (0.11lb.) |
Quick Details
Specifications
AC 220V Infrared PIR IR Motion Sensor Switch For LED Light Bulb 800W Max
Feature:
-
100% brand new and high quality
-
Quantity:1pcs
-
Color: White
-
Material: plastic
-
Type: PIR Switch
-
You can conveniently to let the light auto on/off .The switch can detect human body's infrared , and use infrared to control the load
-
Power supply: AC 180-240V 50/60Hz
-
Load power: less than 800W
-
Sensor distance: 5-8m
-

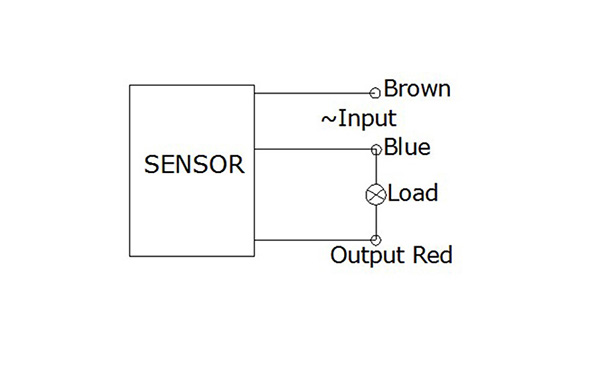

Connect brown and blue with power,Connect red and blue with load
-

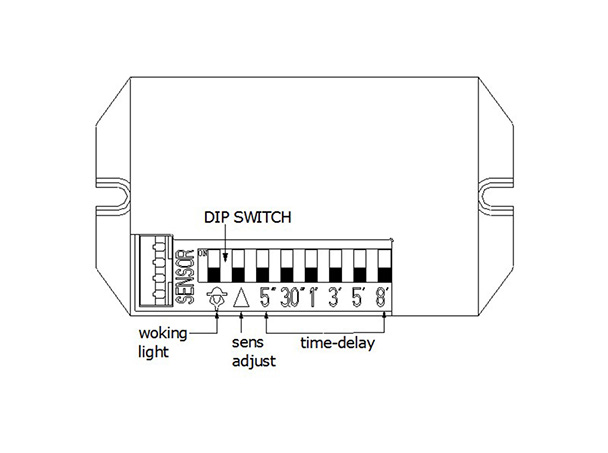

You can select working light to work only in the light below 10lux or in any light
-
Adjustable sensitivity
-
Choose working time-delay of the load: 5s, 30s, 1Min,3Min, 5Min, 8Min
-
The time that the load work can delay automatically: it re-computes time after the last sensing
-
Out connect infrared detector and sensitization resistor
-
Simple structure and using convenient
-
Working Temperature: -20℃- +50℃
-
illumination: Working light : <10LUX~2000LUX
-
When someone enters the sensing range, the switch will automatically turn on , lights, people do not leave the sensing range of activities,
Will continue to turn people away from the sensing range , the switch will automatically turn off delay , lights out, the product of high sensitivity, reliability
Strong, suitable for ceiling tools, warehouse, garage , corridor , factories, corridors , etc
-
Delay range: 5s.30s.1Min.3 Min.5 Min.8 Min
-
Sensor degree: 100° Cone angle.
-
Good solution for energy save.
-
Dimension: Approx 5.6*3.5*2.5cm
-
Cable length: 16cm
-
Working Humidity: <93%RH
-
Applications: Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads
-
Easy to install and simple to use
Package Include:
1 x AC 220V PIR IR motion Sensor Switch (without retailed package)
Note: Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures,but not the same performance on different bodies as on the model.
