| Type: | Window Rollers |
|---|---|
| is_customized: | Yes |
| Model Number: | KSF-22 |
| Brand Name: | AHCELL |
| Material: | Carbon steel |
| Main ball size: | 22mm |
| Main ball material: | Bearing steel |
| Suggested loading capacity: | 70kgs |
| Max. loading capacity: | 80kgs |
| Feature: | Spring shock loading |
| Spring shock loading capacity: | 60kgf |
| Unit Type: | piece |
| Package Size: | 5cm x 5cm x 6cm (1.97in x 1.97in x 2.36in) |
| Package Weight: | 0.45kg (0.99lb.) |
Quick Details
Specifications

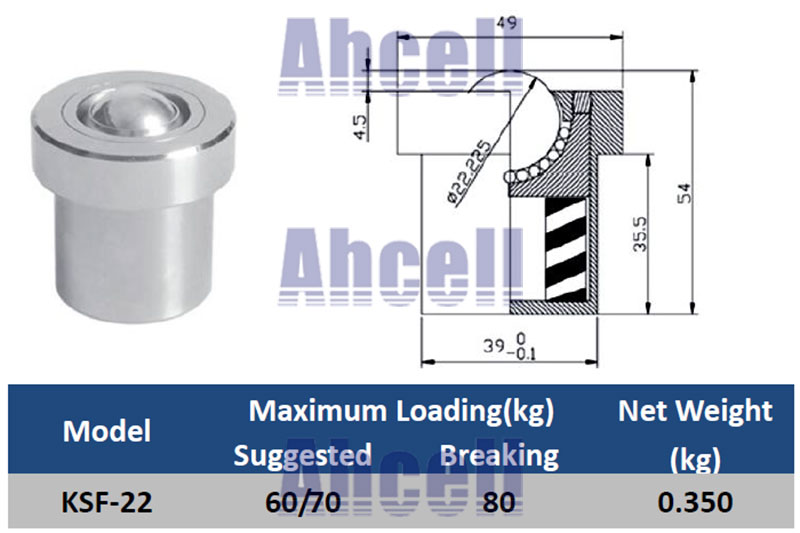

KSF-22 22mm base mounting carbon steel 70/80kgs ball bearing with 60kgf Spring Loading Capacity Ball Transfer Units
This series units are special designed for spring loading using with a receiprocating distance inside.
You can choose SP sereies for normal usage.
Also there are other models for choosing from:
