| Certification: | CE ROHS |
|---|---|
| Package: | Yes |
| Model Number: | PL-PSE1005DI-A1-V |
| Function: | Stackable,VLAN Support,POE |
| Switch Capacity: | 1Gbps |
| Transmission Rate: | 10/100Mbps |
| Switch Type: | Fast Switch |
| Brand Name: | XTDP锛峀ink |
| Communication Mode: | Full-Duplex & Half-Duplex |
| VLAN: | yes |
| customize: | OEM |
| Each port output: | 12V |
| Port: | 4 POE+1 Uplink |
| color: | black |
| power supply: | 4/5+ 7/8- |
| Power adapter: | 12V 5A |
| feature: | poe switch 12v |
| material: | plastic |
| net weight: | 0.13kg |
| Products Status: | Stock |
| Unit Type: | piece |
| Package Size: | 16cm x 10cm x 3cm (6.30in x 3.94in x 1.18in) |
| Package Weight: | 1.0kg (2.20lb.) |
Quick Details
Specifications
Definition

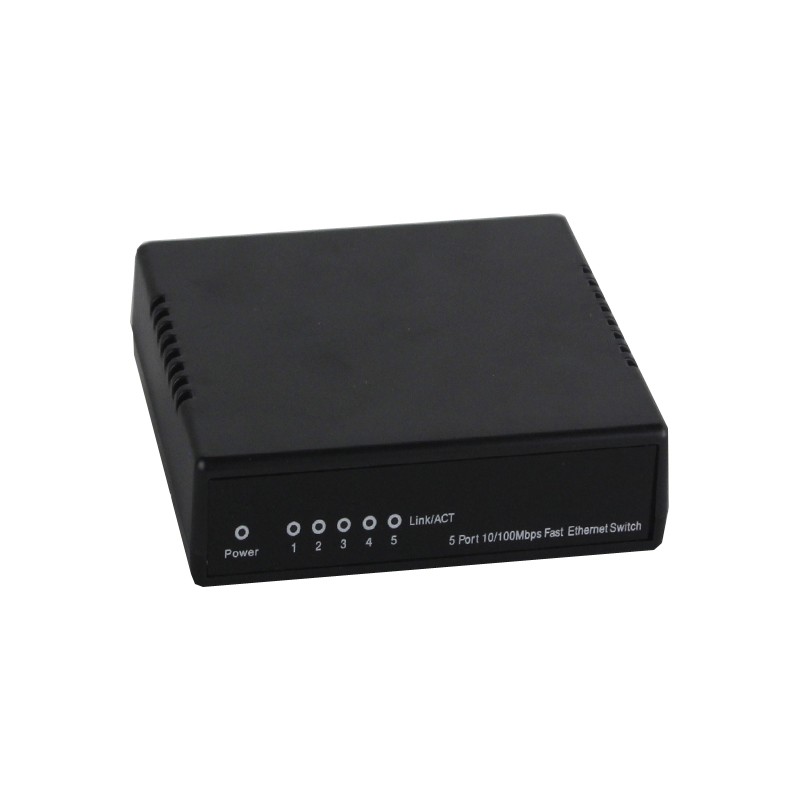

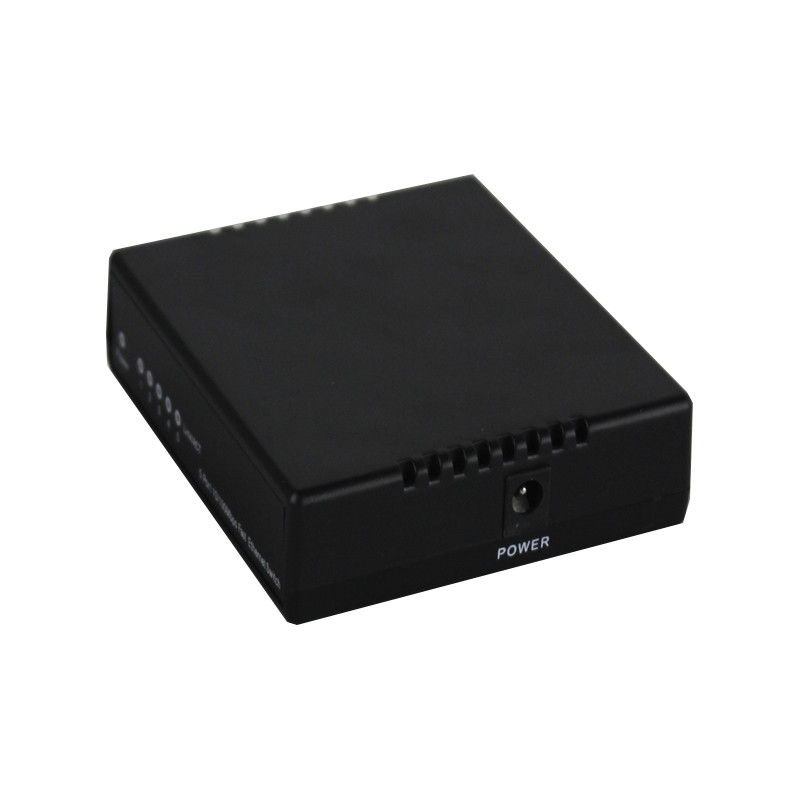

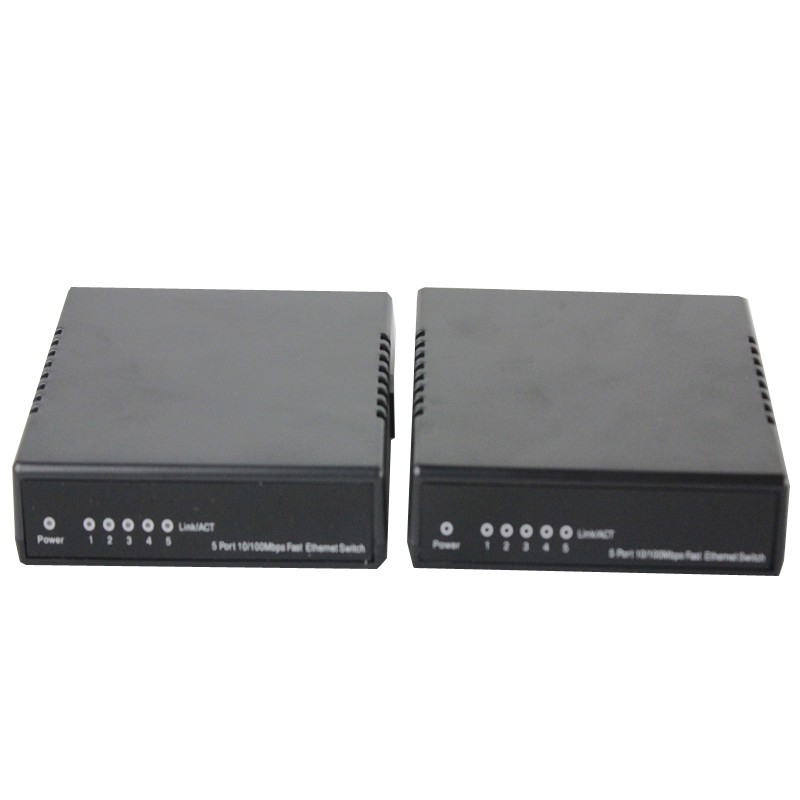

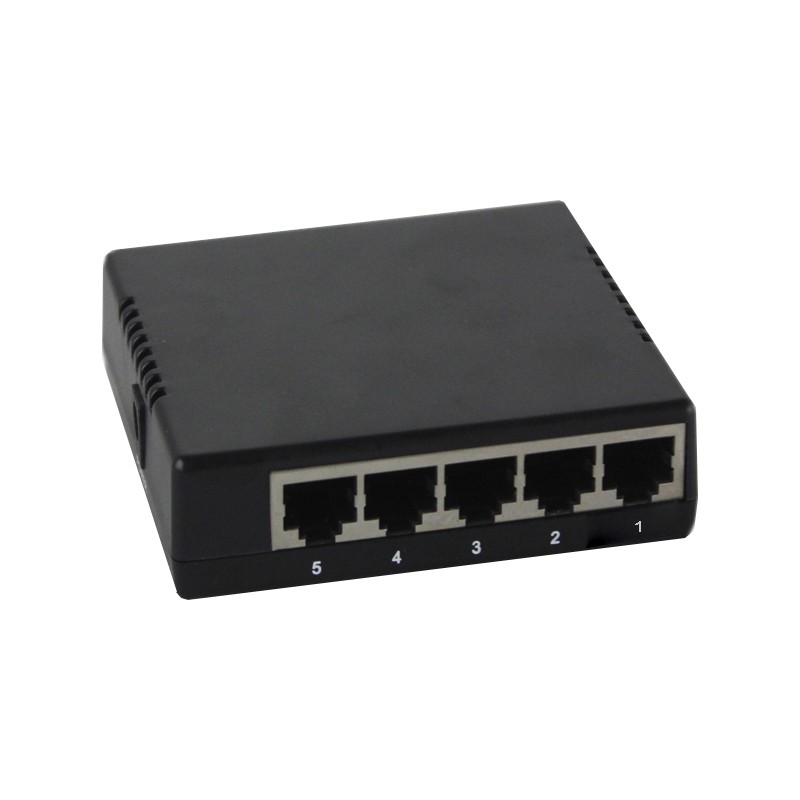

PL-PSE1005DI-A1-V 5Port POE Switch 12V
Description
it is a professional to reduce the network congestion, support long distance network power supply, realize the data conversion POE Switch, it has the basic function of switch and at the same time support POE supply power, each POE port can provide maximum 5W, can for the wireless AP, IP camera, network remote equipment supply, plug and play, provides a low cost and high performance network solution
Applications
Used for wireless AP, network camera, IP telephone, wireless bridge, IP print server, equipment
Features
Complies with IEEE 802.3 IEEE 802.3u standards
4 POE Ethernet power supply port, each port can provide 5W power, Cable power supply distance of 100M
5 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
UTP port support automatic negotiation function, automatic adjustment transmission mode and transmission rate
compatible with Ethernet application, Internet system, reduce the cost of network
Specifications
| Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3x flow control |
| protocol | CSMA/CD |
| Transmission Rate | Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port |
| Topology | Star |
| Network Medium | 10Base-T:Cat 3 or above Cat.3 UTP(≤100m) 100Base-TX:Cat 5 UTP(≤100m) |
| Number of Ports | 5 10/100M RJ45 ports |
| POE Ports | 4 POE Ports |
| UPLINK | 1 UP-Link port |
| Transmits Method | Store-and-Forward |
| Over Voltage/Current/Short Protection | The output can be shorted permanently without damage |
| Temperature | Operating Temperature -5°C~65°C Storage Temperature -40°C~85°C |
| Humidity | Operating Humidity 10%~90% non-condensing Storage humidity 5%~95% non-condensing |
| Switch capacity | 1G |
| LED Indications
| 1* power LED(Power: Green) 5* port LEDs(Link/Act: Green) |
| Power adapter | 12V5A |
| Dimension(W x H x D) | 92x 84x 27mm |
| Case Material | Steel case |
