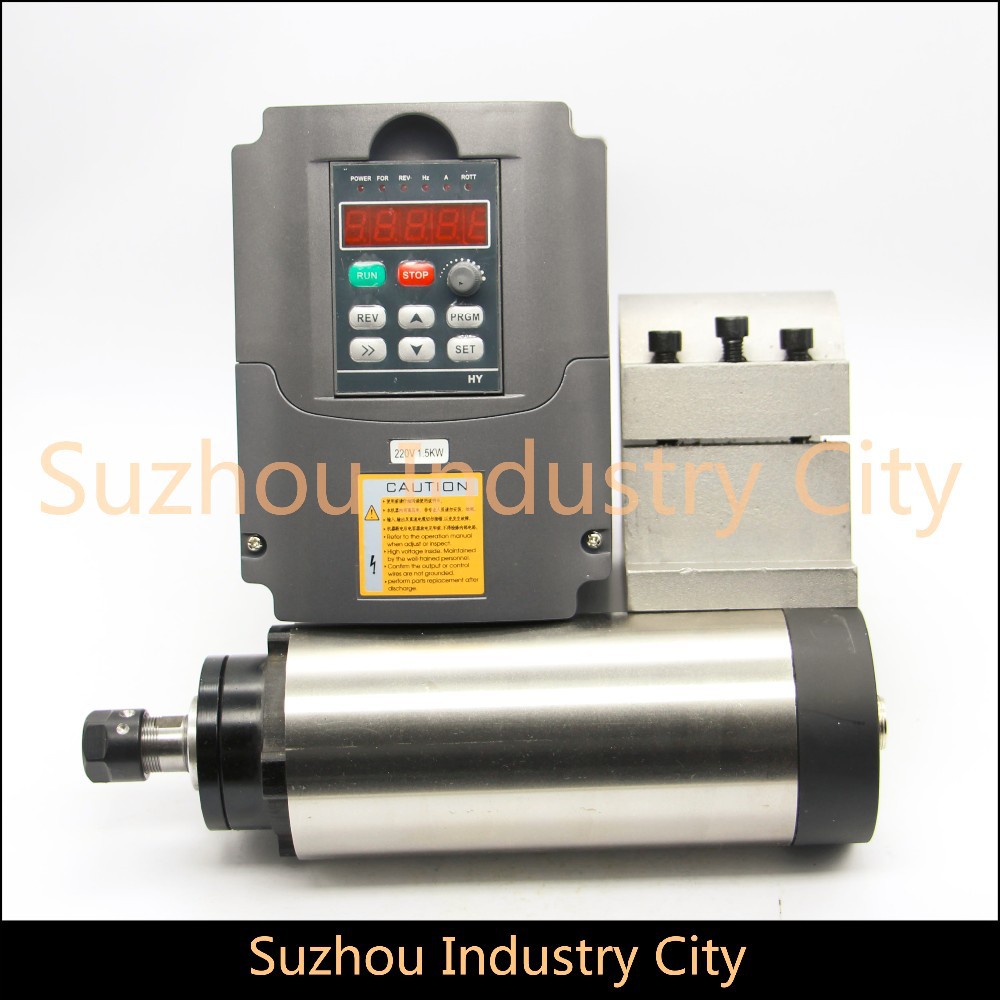

1 X 1.5KW Air Cooled Spindle ER16  220V 4 Bearing

1 X  1.5 Kw Inverter 220V

1 X  80mm Cast Aluminium Clamp

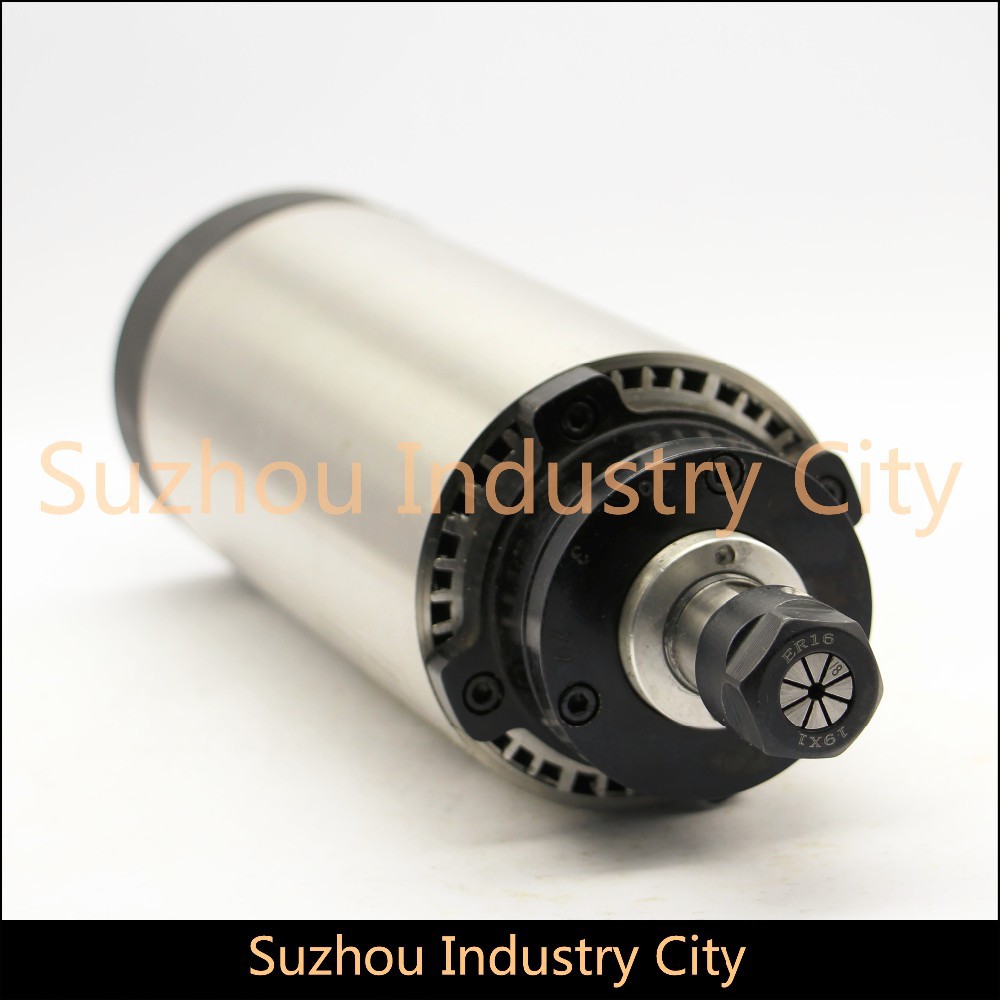

Spindle Motor : 220V 1.5KW ER16

Basic Parameters :

• Size:80x197mm(Middle body diameter:80mmxLength:197mm)

• Material: 304 stainless steel jacket, water jacket is 45 # steel, copper coil!

• Speed ways: through the inverter output voltage and adjust the operating frequency can be achieved 0-24000 stepless

• Cooling: air cooling mode

• Power Interface: Optional GX16 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground

• Power:1.5KW

• Voltage:220V

• Current:8A

• Frequency:0-400Hz

• Speed:0-24000rpm

• Runout off:less than 0.05mm

• Diameter(mm):80

• Bearing type:2X7004C P4 DT and 2X7002C P4

• Collet:ER16

• Clip knifediameter:Clip knifediameter:3mm,3.175mm,4mm,6mm,10mm

• Air Cooling ER16collet chunk

• Grease Lubrication

• Main application: engrave for Wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,

  duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,

  aluminium,Pb etc soft metal surface working,but not milling working

Advantage:

• Bearing is P4 grade,2×7004C P4 DT &2×7002C P4 DT,Increase spindle life

• High speed,high torque,low noise,low price.

• High precision,runout  off less than 0.01mm.Coaxial degree less than 0.0025mm

• Shipment within four days,there is no fake tracking number,make sure that you receive time

Structural features :

• Spindle speed according to different uses can be high-speed grease and oil mist lubrication two ways.

• Spindle speed rotation temperature rise caused by the use of coolant circulation system eliminated.

Care and maintenance :

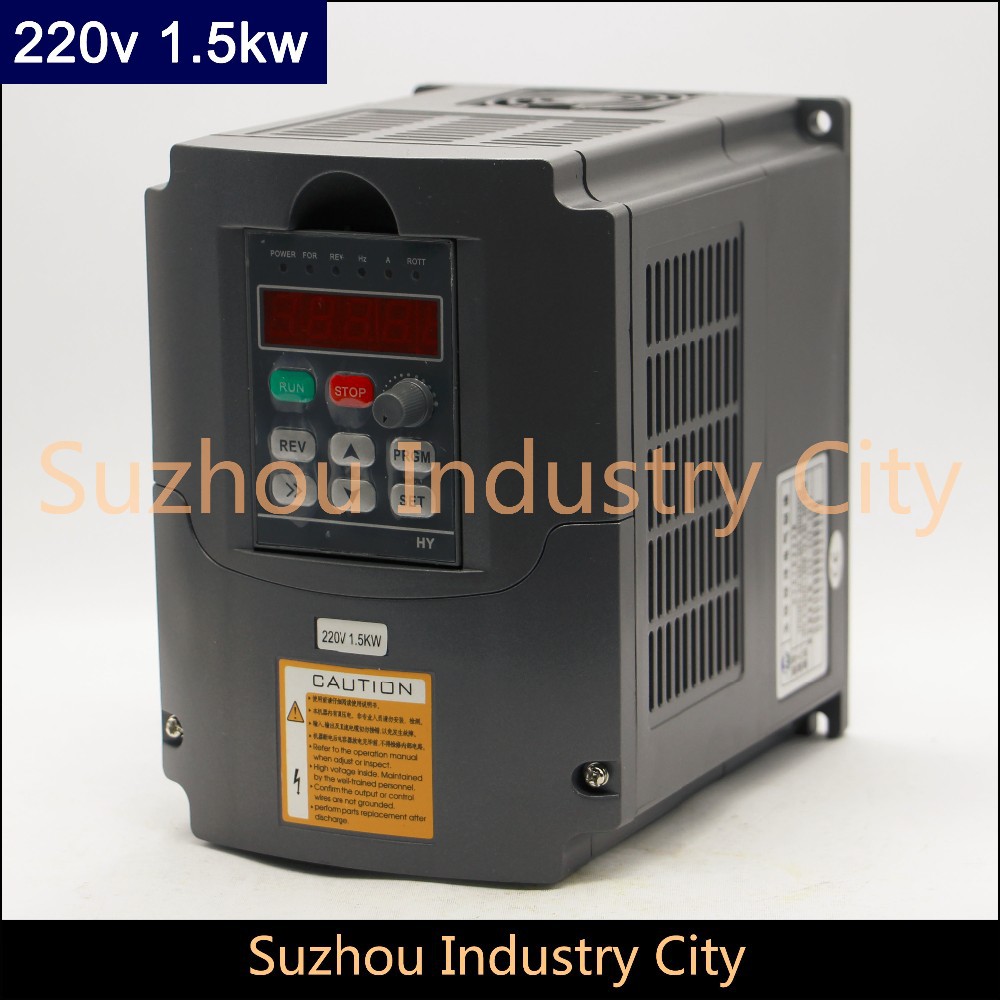

Inverter: 220V 1.5KW

Product Feature:

• PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

• Easy PLC function can realize 16 legs of speed and inverter control function;

• RS485 communication port, adopting standard international MODBUS main circuit control;

• With extremely strong anti-jamming capability

• Low output ratting torque0.5HZ-150%, low speed running ability;

• Carrier adjustable by 16KHZ, completely soundless working environment;

• Broad voltage working area, normal running in 304V-456V;

• Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

• Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

• With perfect error protection and short circuit starting protection capability;

Tech parameters:

• Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us for item stock.

• Output Voltage  220VAC

• Input Frequency: 48-63 Hz

• Output Frequency: 0-400 Hz

• Input Phase: 1 or 3 phase

• Output Phase: 3 phase

• Warranty: 1 year from the date you purchased

Advantage:

• Control Mode is SPWM,it is very easy to use and convenient

• Protection Functions are very strong,

• Fin over-heat protection,

• Overload Protection,

• Fuse Protection,

• Restart After Instant Stop,Stall Protection.

• Powful function

• Low price

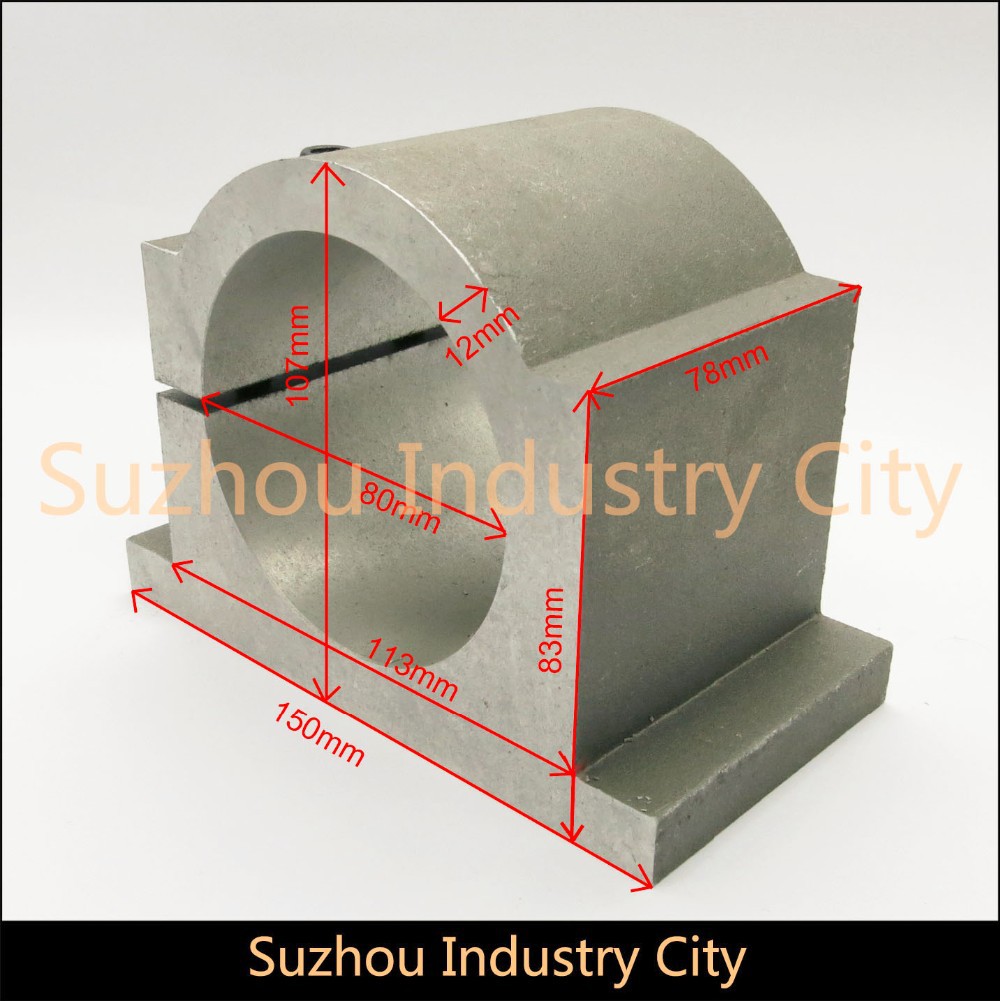

Spindle Clamping Bracket : 80MM









Diameter :80mm

Material: Cast Aluminium



Features:



• Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.

• Inner wall is very smooth,  outer walls is sandblasted, relatively fine uniform,  but not very smooth,.

• Cast aluminium fixture is much heavier than aluminium profile fixture





Product Description:



• Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.



Usage:



• Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error
