Quick Details

Certification: ROHS,CCC,CE,ISO,UL
Type: Hybrid
Model Number: NEMA17
Phase: 2
Brand Name: HANPOSE
Holding Torque: 4000g.cm(
Current / Phase: 1.7A
Step Angle(degrees): 1.8 degree
Oz.in: 65
is_customized: Yes

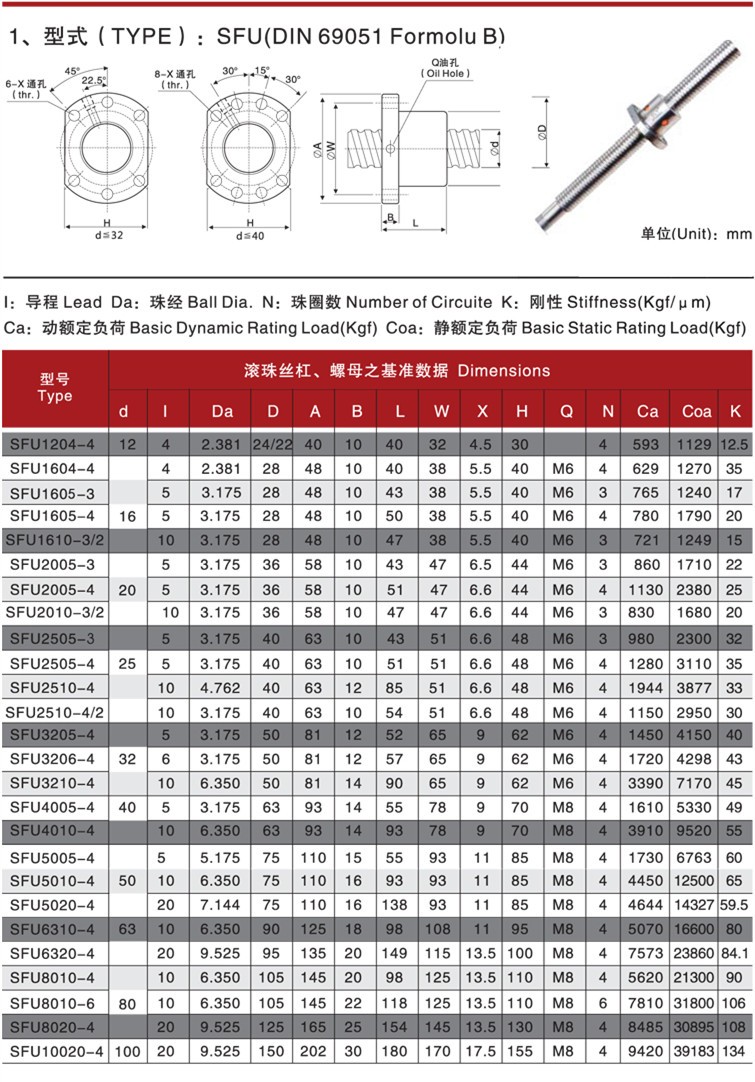

ballscrew: SFU1204 L 350MM
Unit Type: piece
Package Size: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
Package Weight: 2.0kg (4.41lb.)

Specifications


(2)



1pcs 17HS4401S ballscrew SFU1204 L350MM motor

with  1M Dupont line



(the ball screw Length can be cut, if necessary, please contact me)





Note: The ball screw can end processed, if necessary, please contact me, give me end processed drawings,thanks











General Specification:

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC













Insultion Strength--------500VAC for one minute





Datasheet(17HS4401S,1.7A, 65 oz-in  holding torque,5mm diameter shaft):



Model

Step Angle

(deg)

Motor Length

(mm)

Rated Current

(A)

Phase Resistance

(Ohm)

Phase Inductance

(mH)

Holding Torque

(N.cm)

Detent Torque

(N.cm)

Rotor Inertia

(g.cm2)

Lead Wire

(No)

Motor Weight

(g)





17HS4401S

1.8

40

1.7

1.5

2.8

45

2.65

65

4

300





Note:We can manufacture products according to customer's requirements.





Red: A+

Green: A-

Yellow: B+

Blue: B-

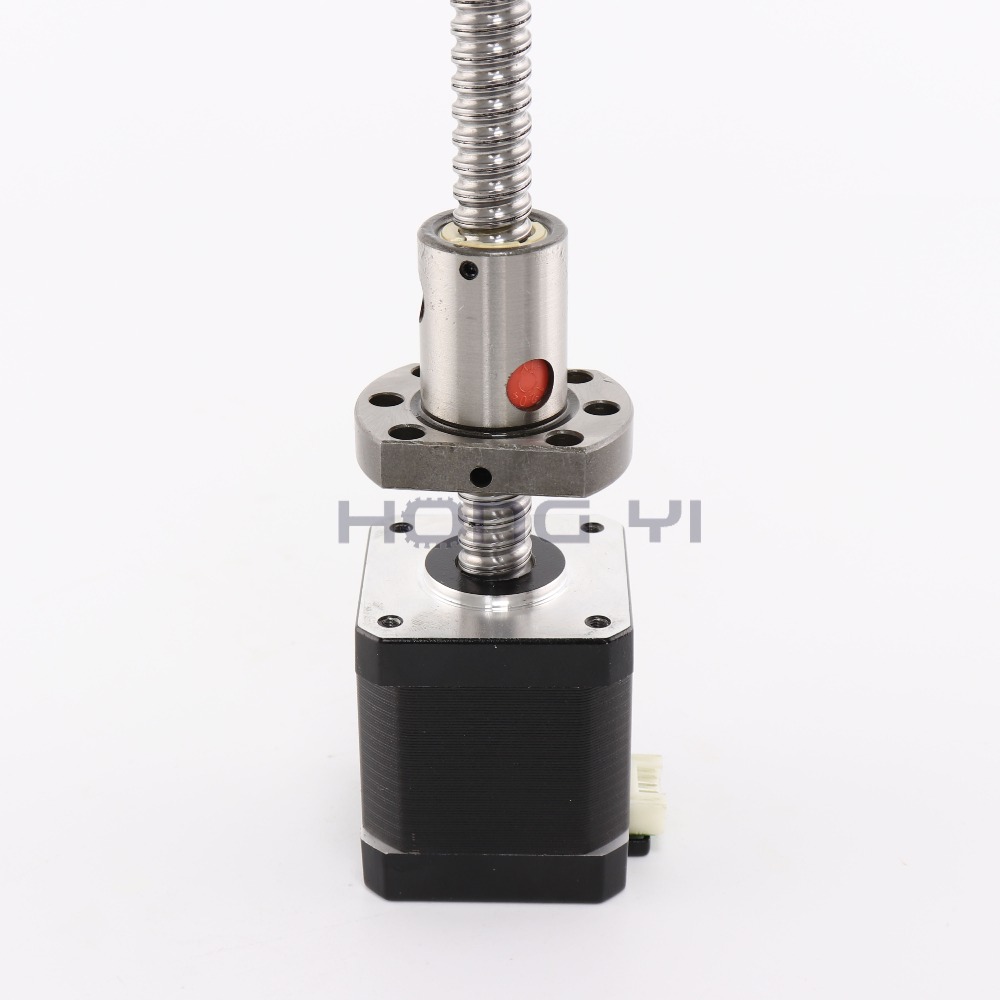

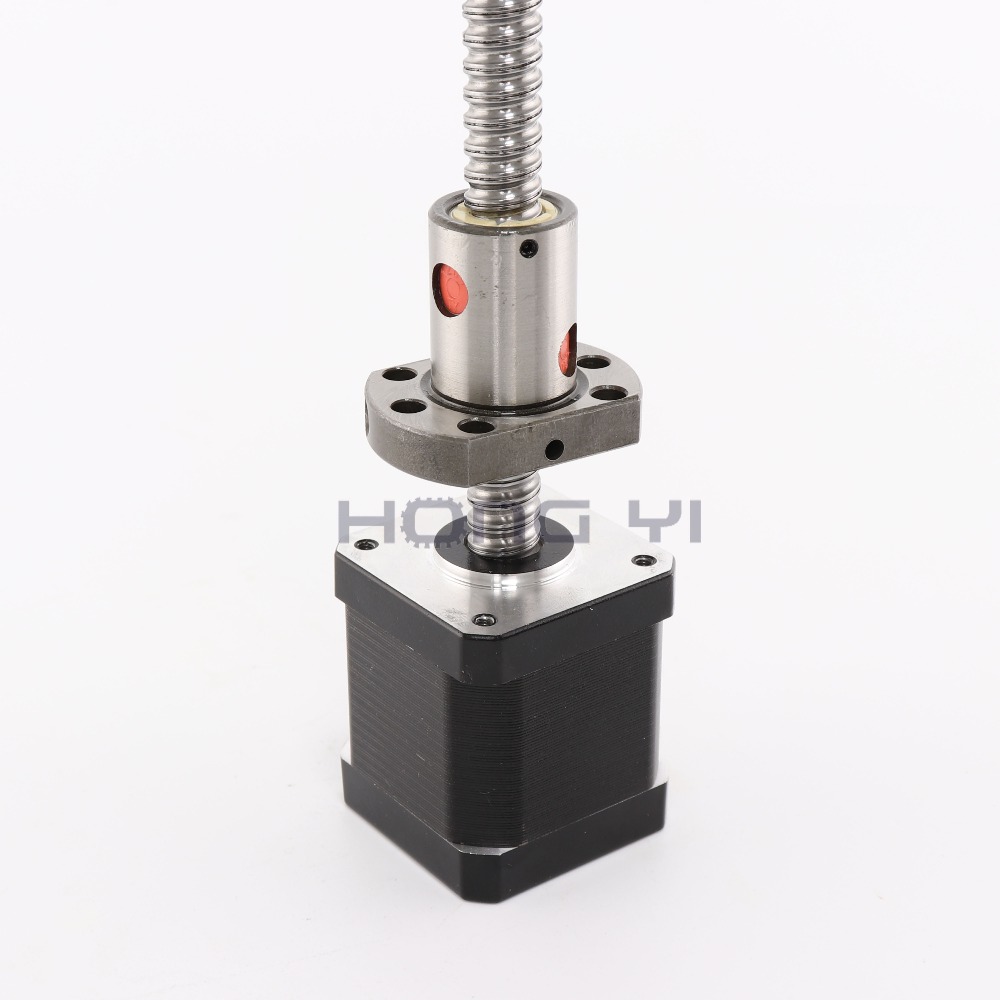

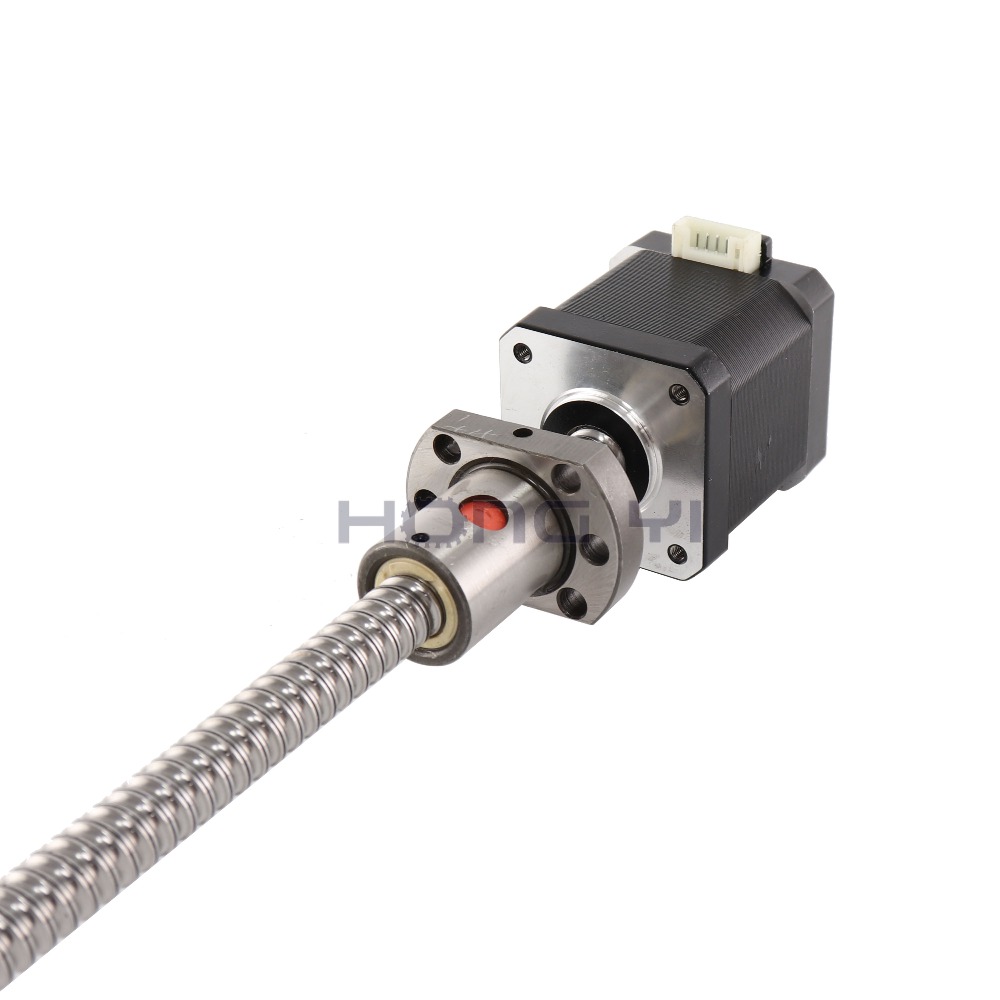

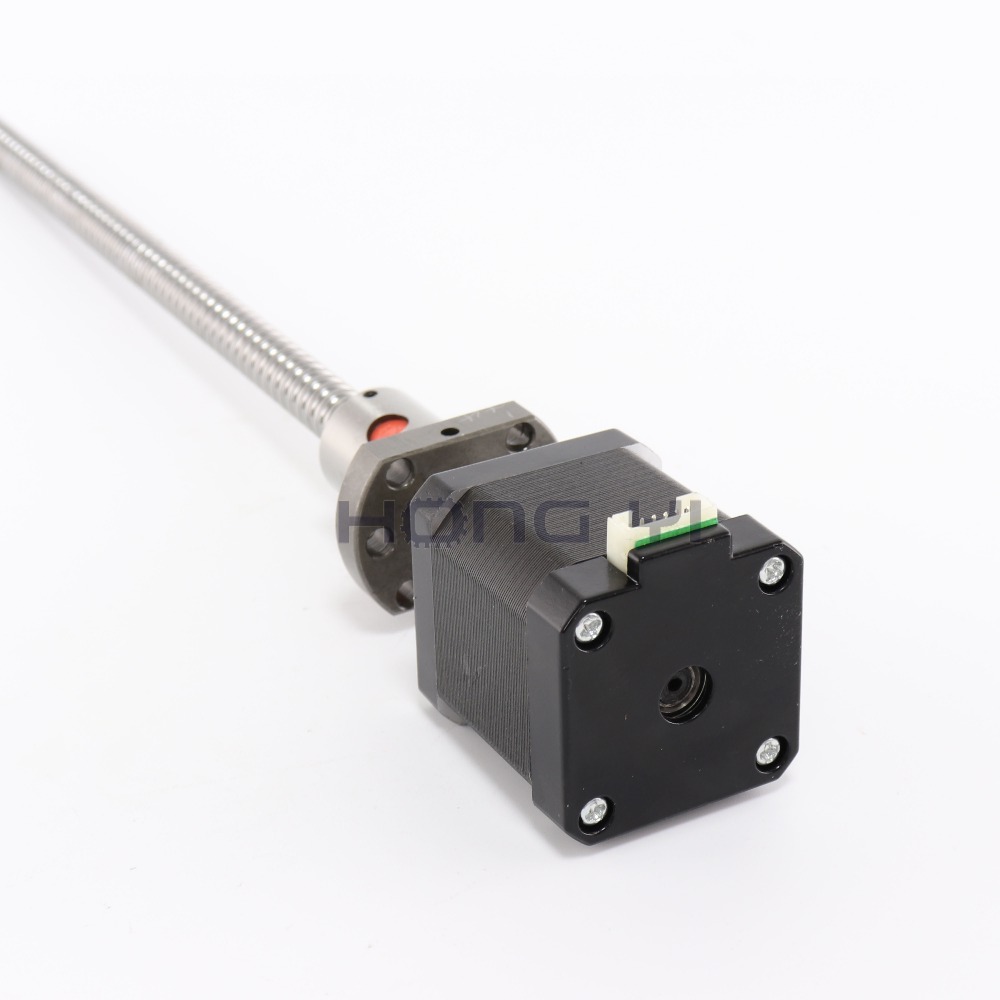

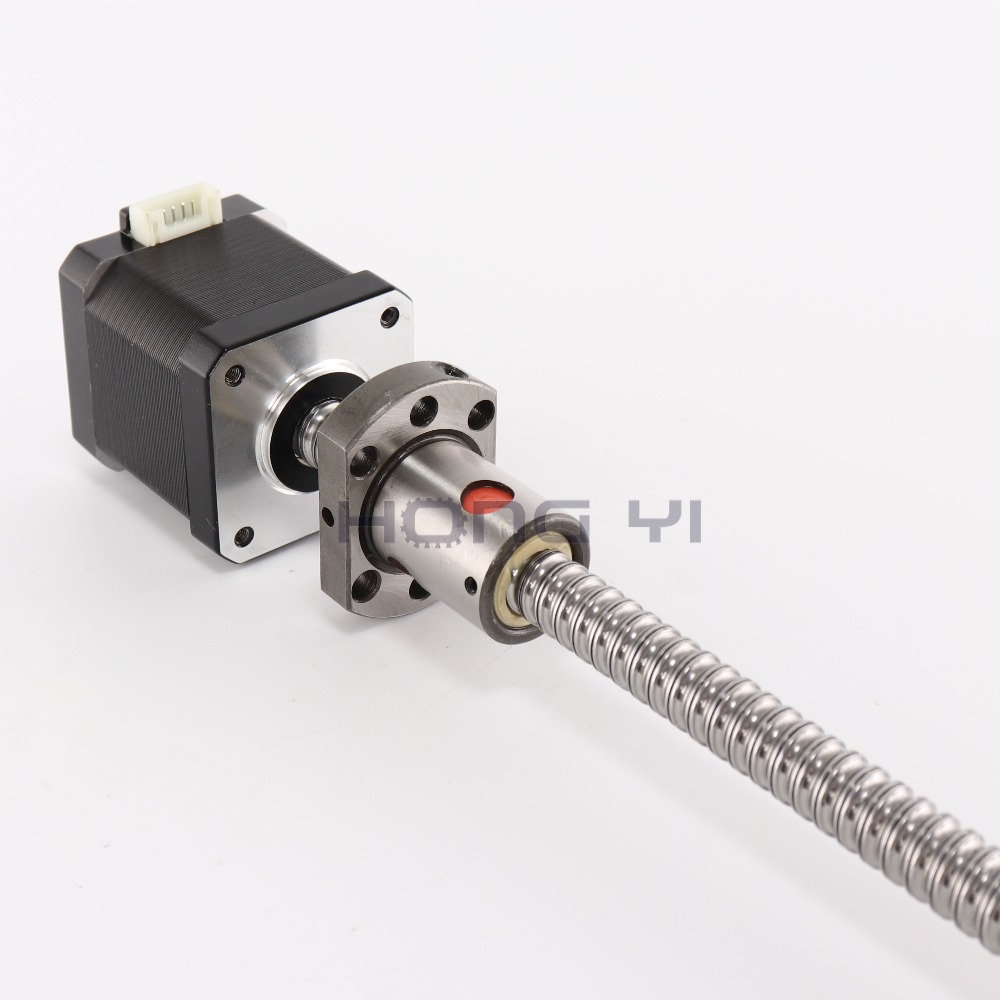

screwscrew4screw2screw3screw1
