| Certification: | ROHS,CCC,CE,ISO,UL |
|---|---|
| Type: | Hybrid |
| Phase: | 2 |
| Current / Phase: | 1.3A |
| Model Number: | 17HS3401 |
| Step Angle(degrees): | 1.8 |
| Holding Torque: | 28N.cm |
| Unit Type: | lot (50 pieces/lot) |
| Package Size: | 20cm x 20cm x 10cm (7.87in x 7.87in x 3.94in) |
| Package Weight: | 15.0kg (33.07lb.) |
Quick Details

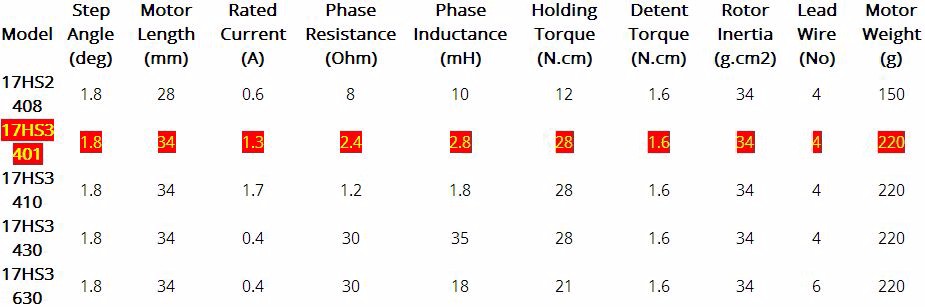

Specifications
Package include:

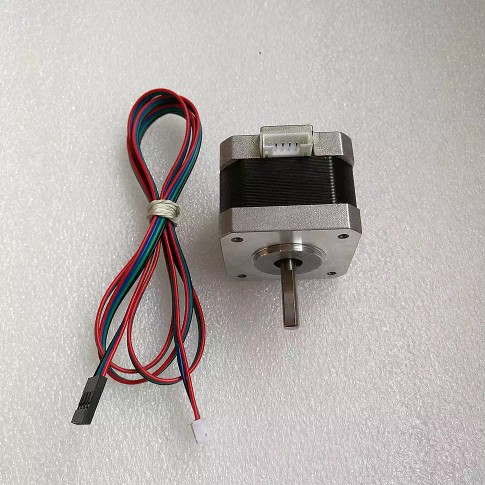

50pcs x 17HS3401 Stepper Motor
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute
This products are widely used in engraving machine, printer, medical equipment,
embroidery machine, stage lighting, textile automation, printing,packaging and
other industries automation equipment.
