| Brand Name: | ZHONG HUA JIANG |
|---|---|
| Certification: | ROHS,CCC,CE,ISO,UL |
| Type: | Hybrid |
| Phase: | 2 |
| Holding Torque: | 30kg.cm |
| Current / Phase: | 2.8A |
| Step Angle(degrees): | 1.8 |
| Model Number: | 23HS11528 |
| Unit Type: | piece |
| Package Size: | 20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in) |
| Package Weight: | 2.0kg (4.41lb.) |
Quick Details
Specifications
Package include:

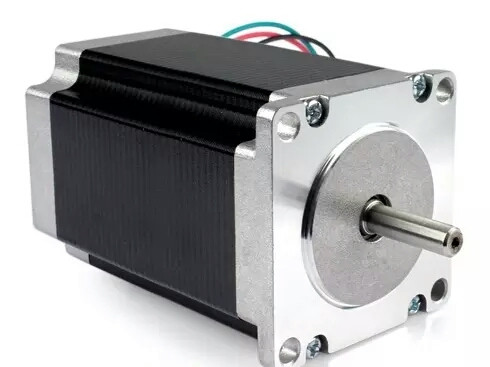

1pc x 23HS11528 Stepper Motor 8mm shaft.
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute
This products are widely used in engraving machine, printer, medical equipment,
embroidery machine, stage lighting, textile automation, printing,packaging and
other industries automation equipment.
