| Holding Torque: | 78 Oz-in / 48Ncm |
|---|---|
| Type: | Hybrid |
| Phase: | 2 |
| Current / Phase: | 1.8A |
| Certification: | CCC,CE,ISO,ROHS,UL |
| Step Angle(degrees): | 1.8 |

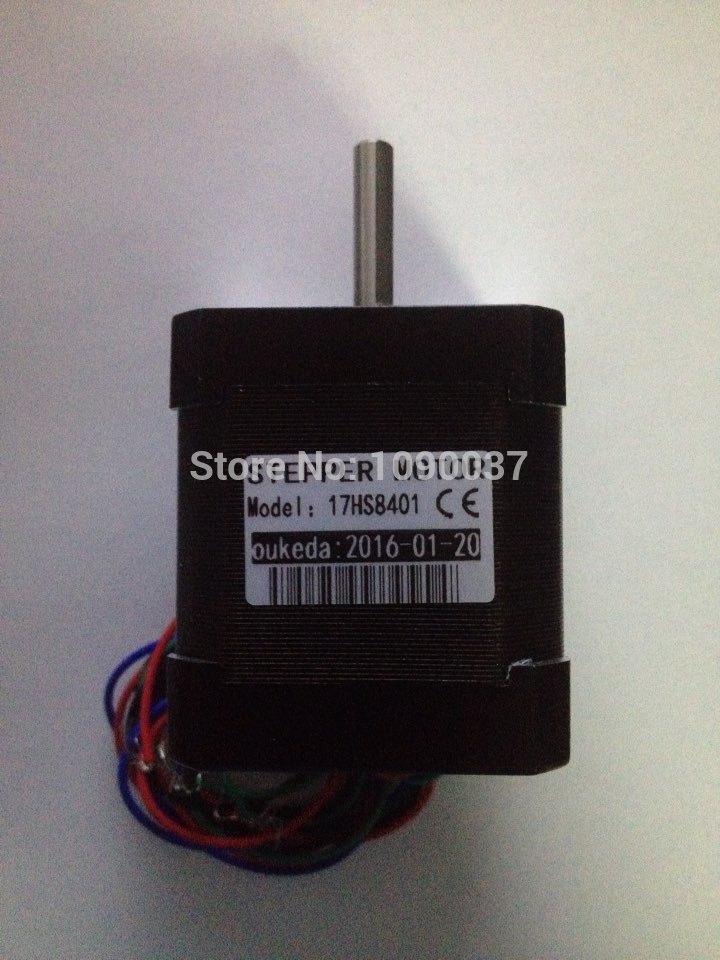

| Model Number: | 17HS8401 |
| Unit Type: | lot (20 pieces/lot) |
| Package Size: | 40cm x 40cm x 25cm (15.75in x 15.75in x 9.84in) |
| Package Weight: | 5.0kg (11.02lb.) |
Quick Details
Specifications
Package include

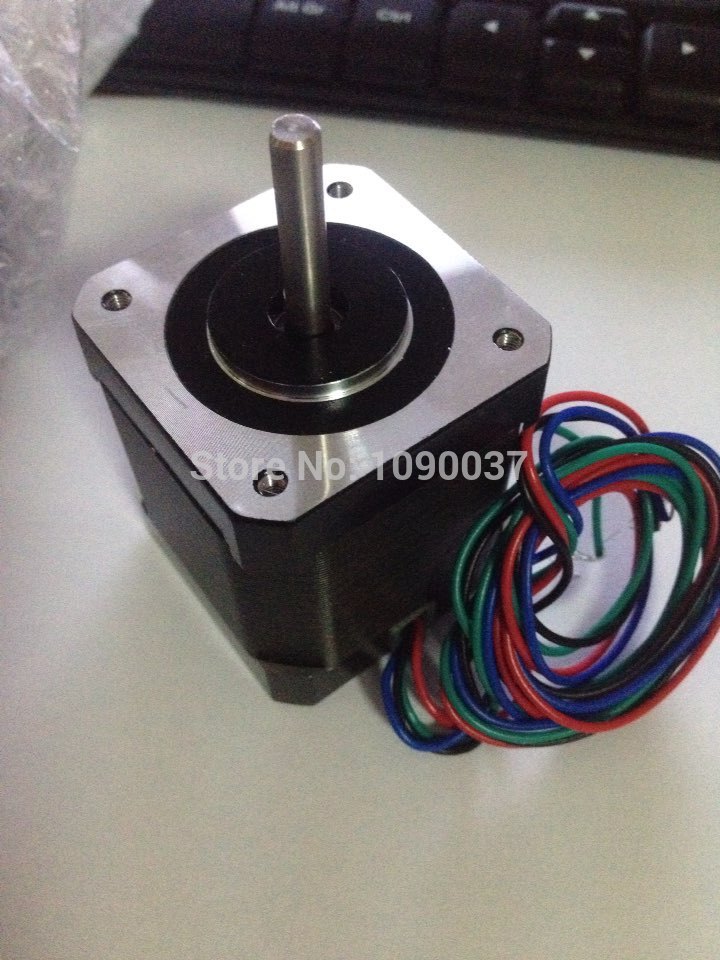

20pc X 17HS8401 Stepper motor
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute

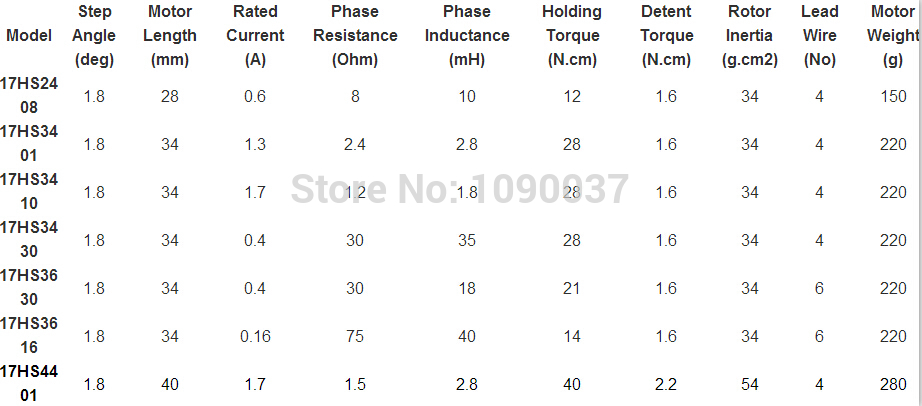

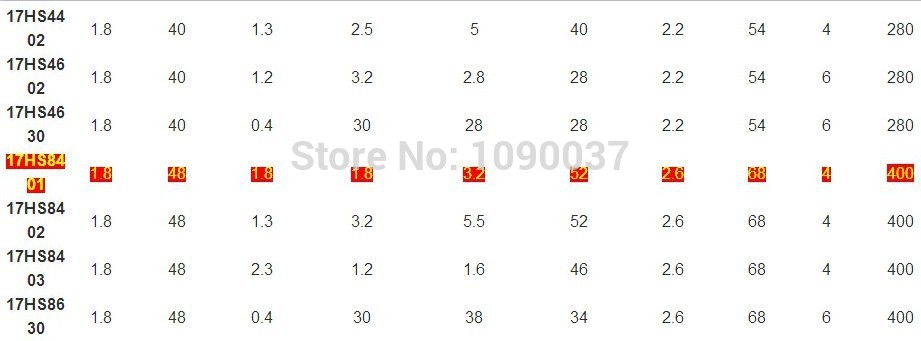

Datasheet(17HS8401,1.8A,78 oz-in or 4.8kg.cm holding torque,5mm diameter shaft):
Shipping
- Please open the package and check if there are some damages before sign, if there are some damages , please do not sign and contact us immediately
- We will choose the best way send the goods to you if the courier you choosed it not good to Clearance
- We ship to worldwidebut If your country's custom is strict, please contact us before you bid to check detail and confirmed.
Payment
- We accept bank TT,western union,moenybook,moenygram etc
- Payment must be made within 48hours of the auction end time
- Import duties, taxes and charges are not included in the item price or shipping charges. These charges are
