| Certification: | ROHS,CCC,CE,ISO,UL |
|---|---|
| Type: | Hybrid |
| Phase: | 2 |
| Holding Torque: | 18.9kg.cm |
| Model Number: | 23HS7628 |
| Current / Phase: | 2.8A |
| Step Angle(degrees): | 1.8 |
| Unit Type: | lot (4 pieces/lot) |
| Package Size: | 20cm x 40cm x 20cm (7.87in x 15.75in x 7.87in) |
| Package Weight: | 4.8kg (10.58lb.) |
Quick Details
Specifications
Package include

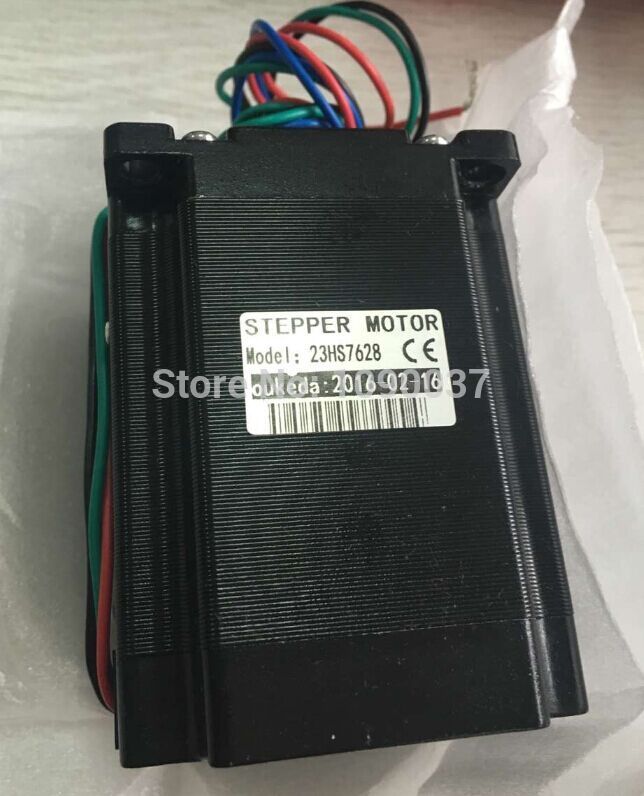

4pc X 23HS7628 Stepper motor
Tips:shaft 8mm or 6.35mm,please choose which one you need,default is 8mm.
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute
Note:We can manufacture products according to customer's requirements.
Red: A+
Blue: A-
Green: B+
Black: B-
