| Certification: | ROHS,CCC,CE,ISO,UL |
|---|---|
| Current / Phase: | 0.6 |
| Type: | Hybrid |
| Holding Torque: | 1200 |
| Phase: | 2 |

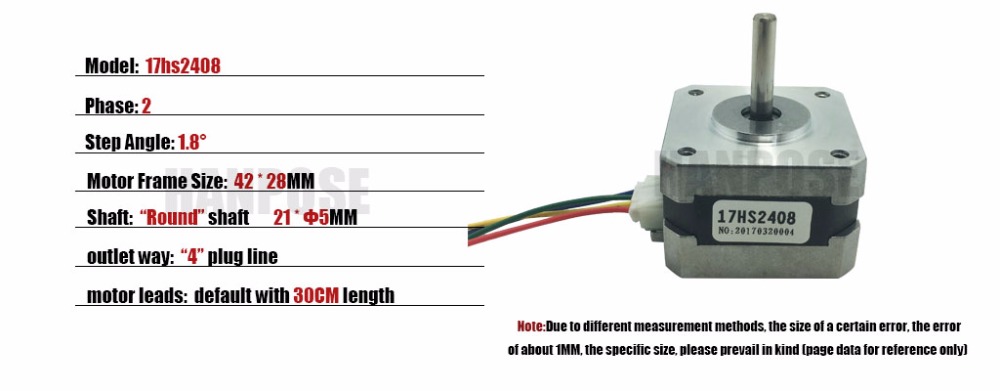

| Model Number: | NEMA17-2408 |
| Step Angle(degrees): | 1.8 |

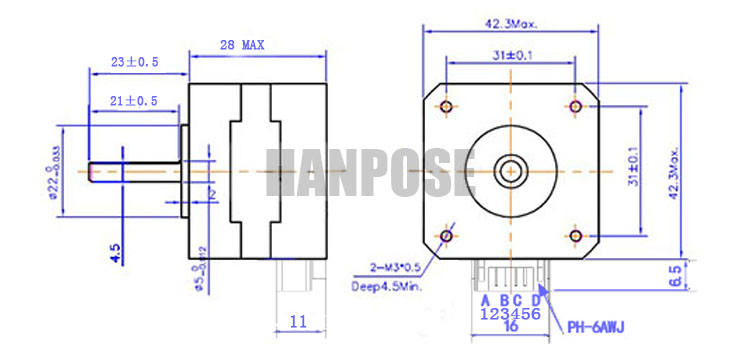

| motor length: | 28mm |
| line length: | 30cm |
| is_customized: | Yes |
| Unit Type: | lot (50 pieces/lot) |
| Package Size: | 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in) |
| Package Weight: | 13.0kg (28.66lb.) |
Quick Details
Specifications

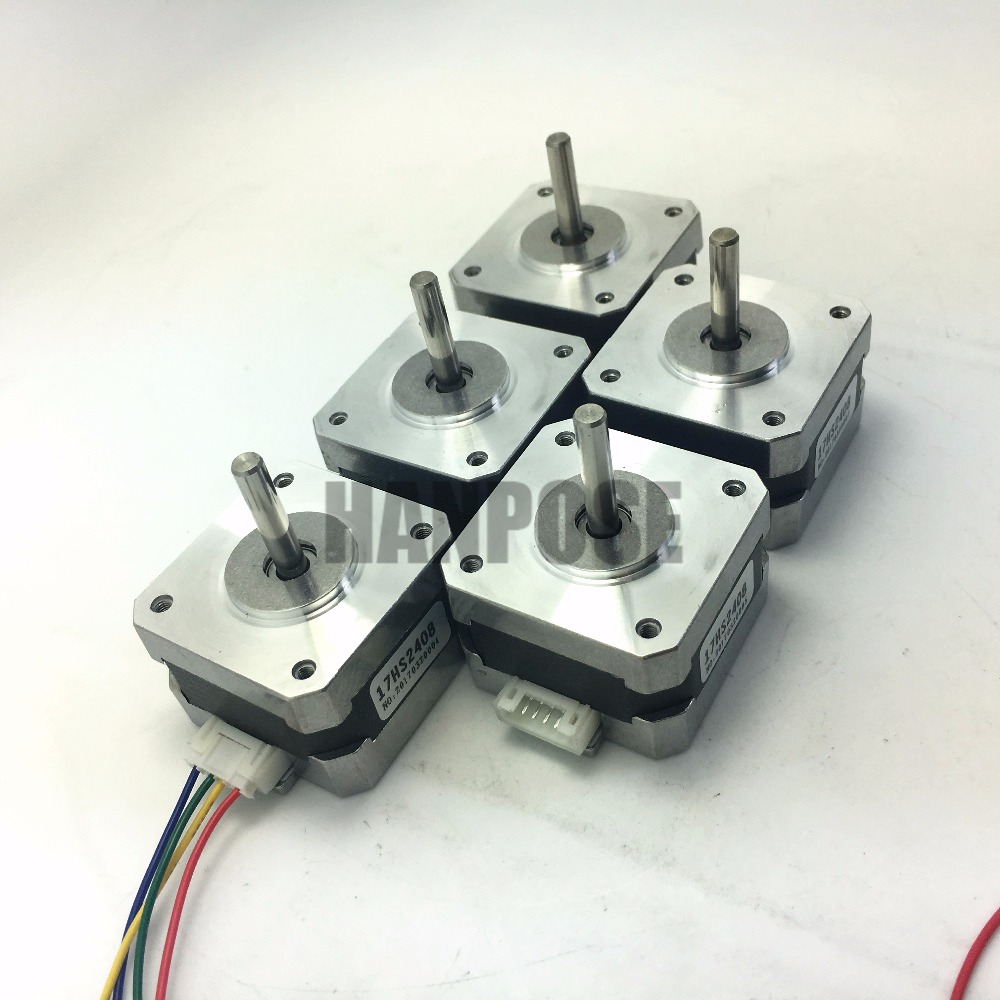

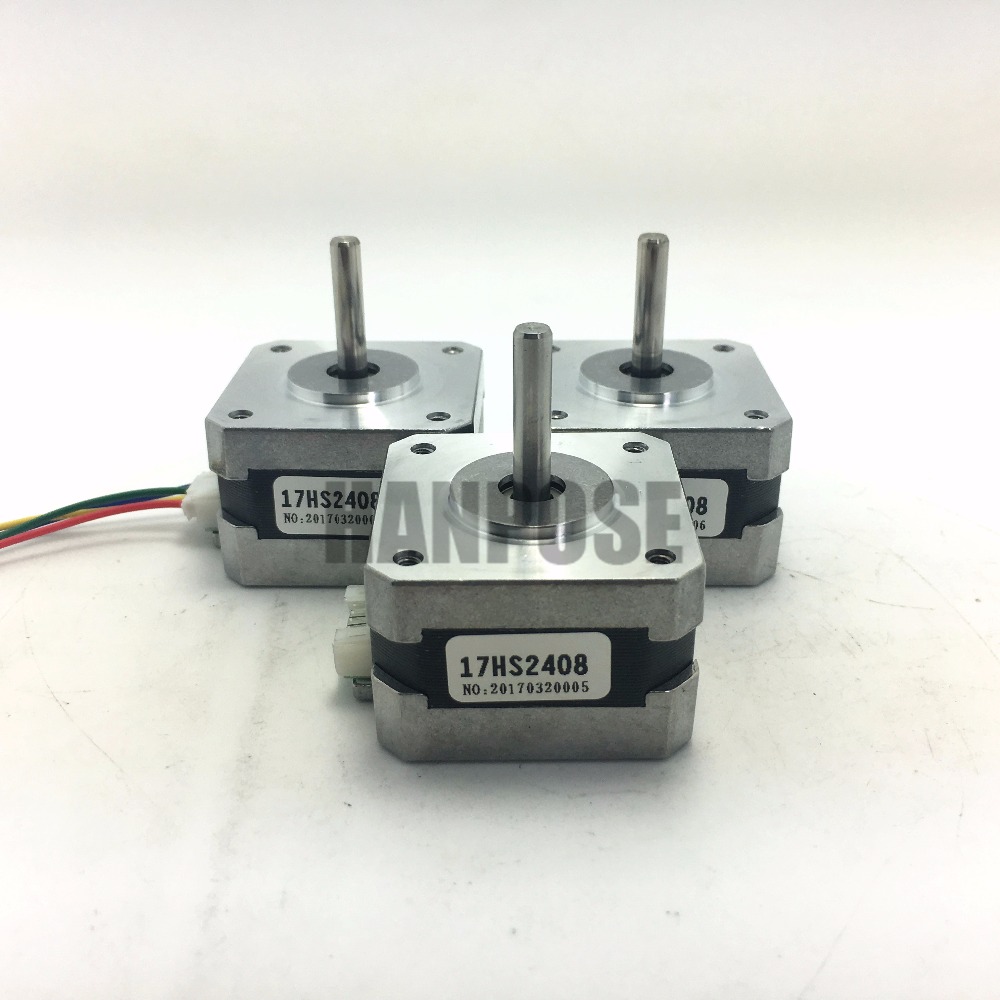

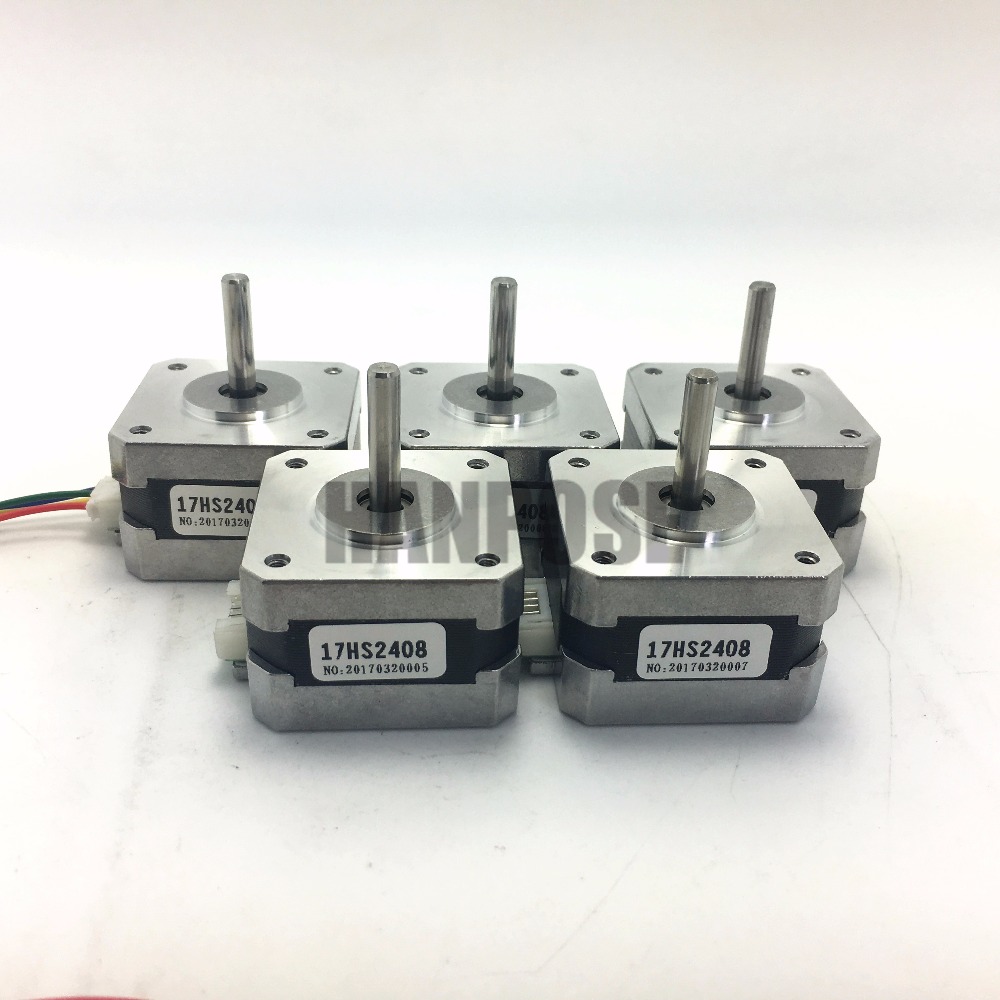

- 50pcs 17HS2408 motor
- 50pcs 30CM line length
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute
Datasheet(17HS8401,1.8A,78 oz-in or 4.8kg.cm holding torque,5mm diameter shaft):
| Model | Step Angle (deg) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ohm) | Phase Inductance (mH) | Holding Torque (N.cm) | Detent Torque (N.cm) | Rotor Inertia (g.cm2) | Lead Wire (No) | Motor Weight (g) |
|
| ||||||||||
| 17HS2408 | 1.8 | 28 | 0.6 | 8 | 10 | 12 | 1.6 | 34 | 4 | 150 |
|
| ||||||||||
| Note:We can manufacture products according to customer's requirements. | ||||||||||

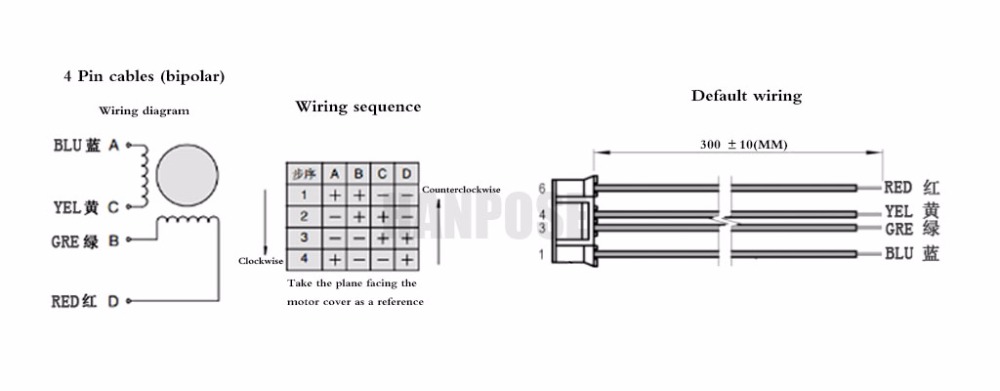

Red: A+
Green: A-
Yellow: B+
Blue: B-
|
|
