| Holding Torque: | 1200g.cm |
|---|---|
| Type: | Hybrid |
| Phase: | 2 |
| Current / Phase: | 0.6A |
| Certification: | CCC,CE,ISO,ROHS,UL |
| Step Angle(degrees): | 1.8 |
| Model Number: | 17HS2408 |
| Unit Type: | lot (10 pieces/lot) |
| Package Size: | 20cm x 10cm x 20cm (7.87in x 3.94in x 7.87in) |
| Package Weight: | 3.0kg (6.61lb.) |
Quick Details
Specifications
Package include:

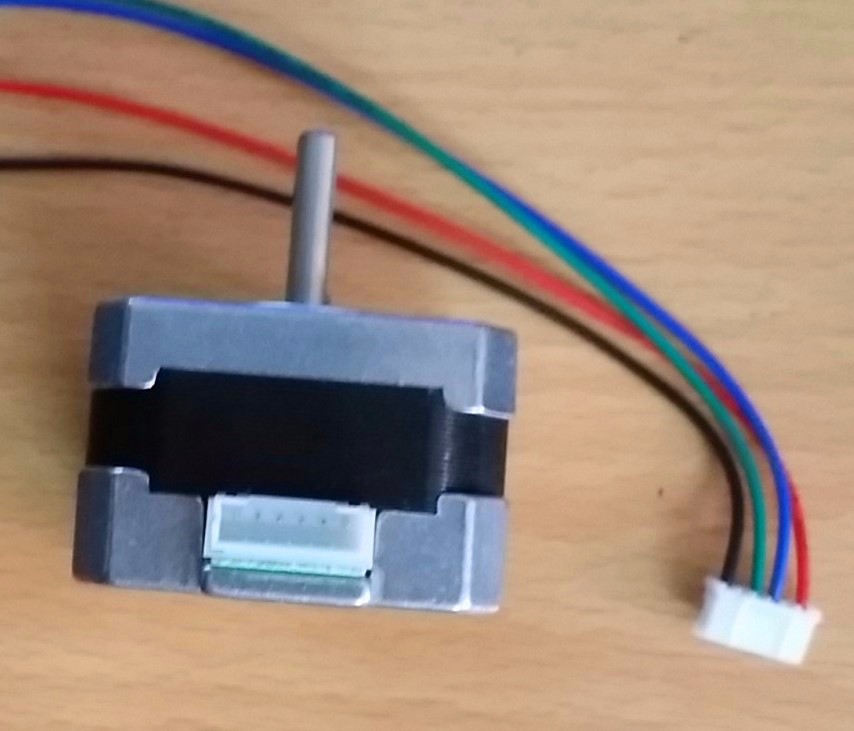

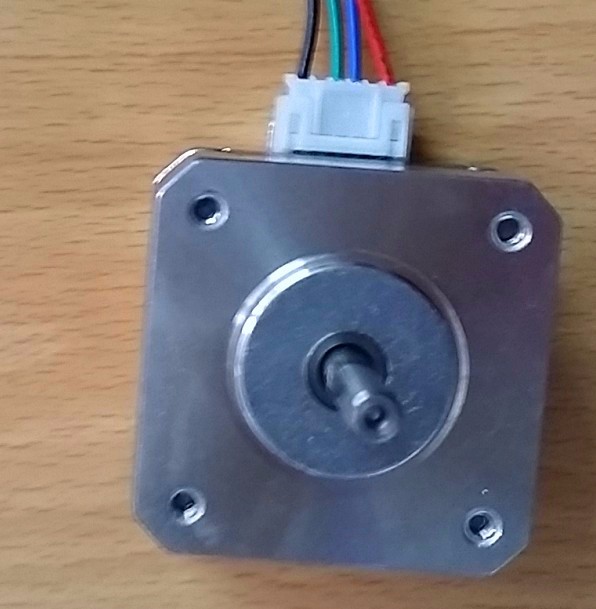

10pc x 17HS2408 Stepper Motor
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute
