| Type: | Hybrid |
|---|---|
| Phase: | 3 |
| Certification: | CCC,CE,ISO,ROHS,UL |
| Model Number: | HBS507+573HBM20-EC-1000 |
| voltage: | 36V -48VD |
| encoder: | 1000 lines |
| speed : | 3000RPM |
| frame: | NEMA 23 |
| shaft size: | 8 mm |
| Unit Type: | piece |
| Package Size: | 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in) |
| Package Weight: | 2.5kg (5.51lb.) |
Quick Details
Specifications

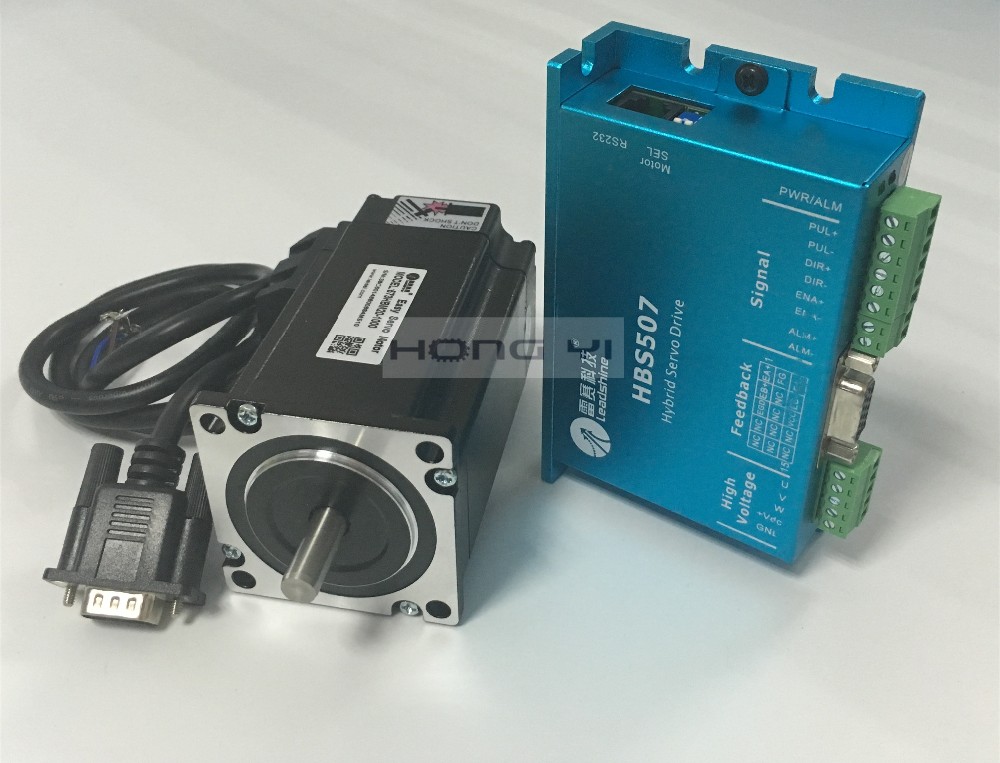

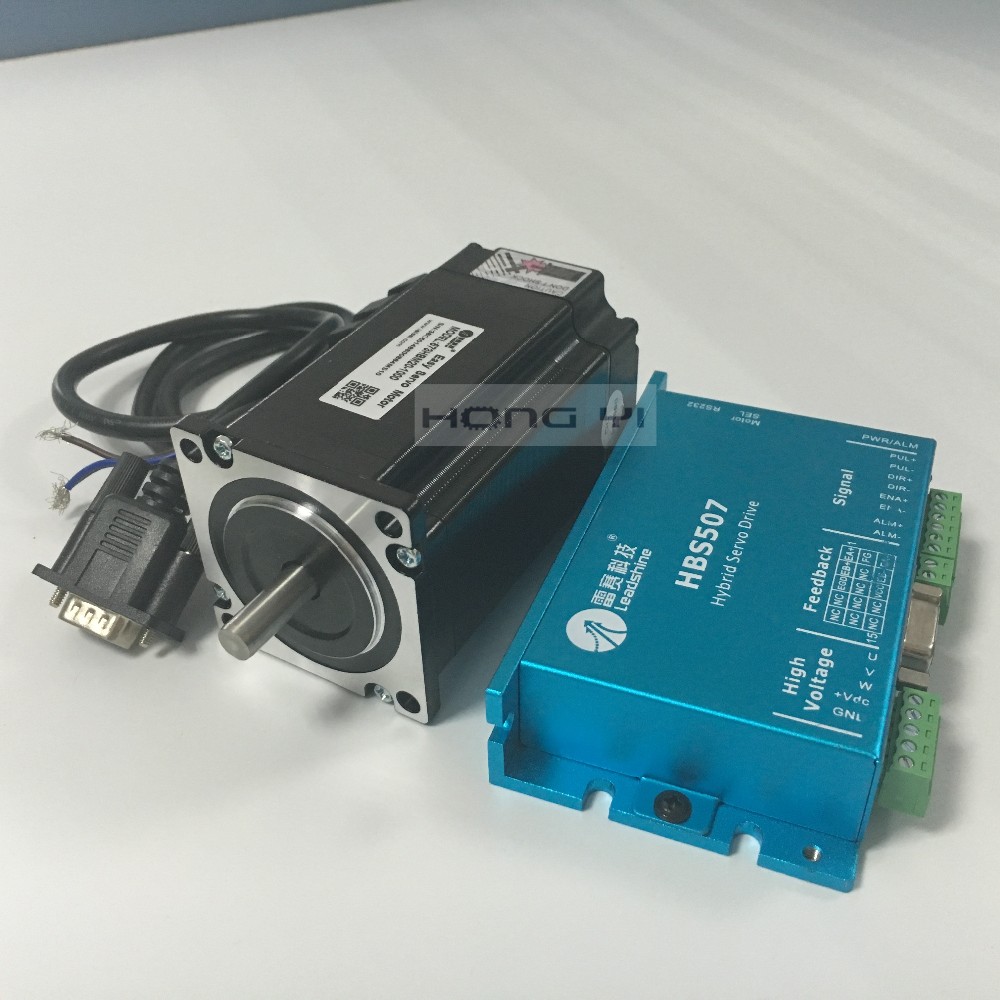

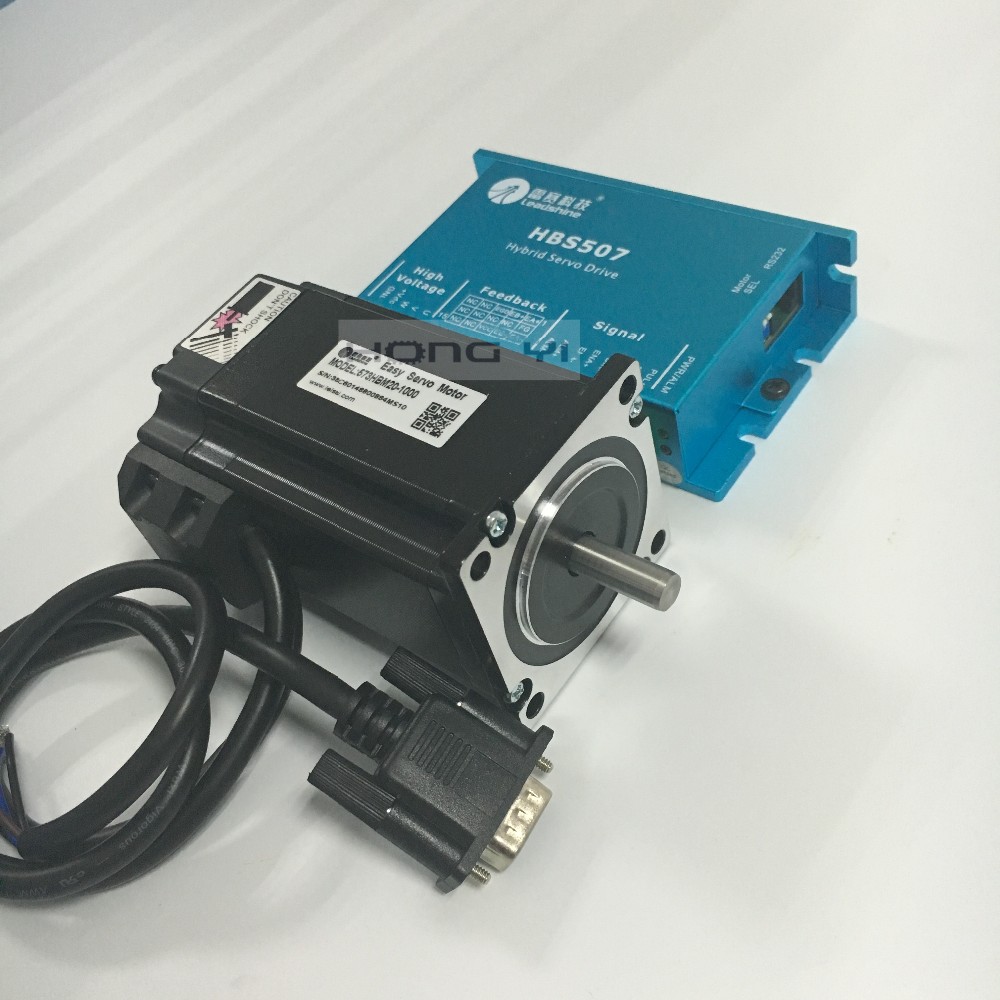

Package Contents:

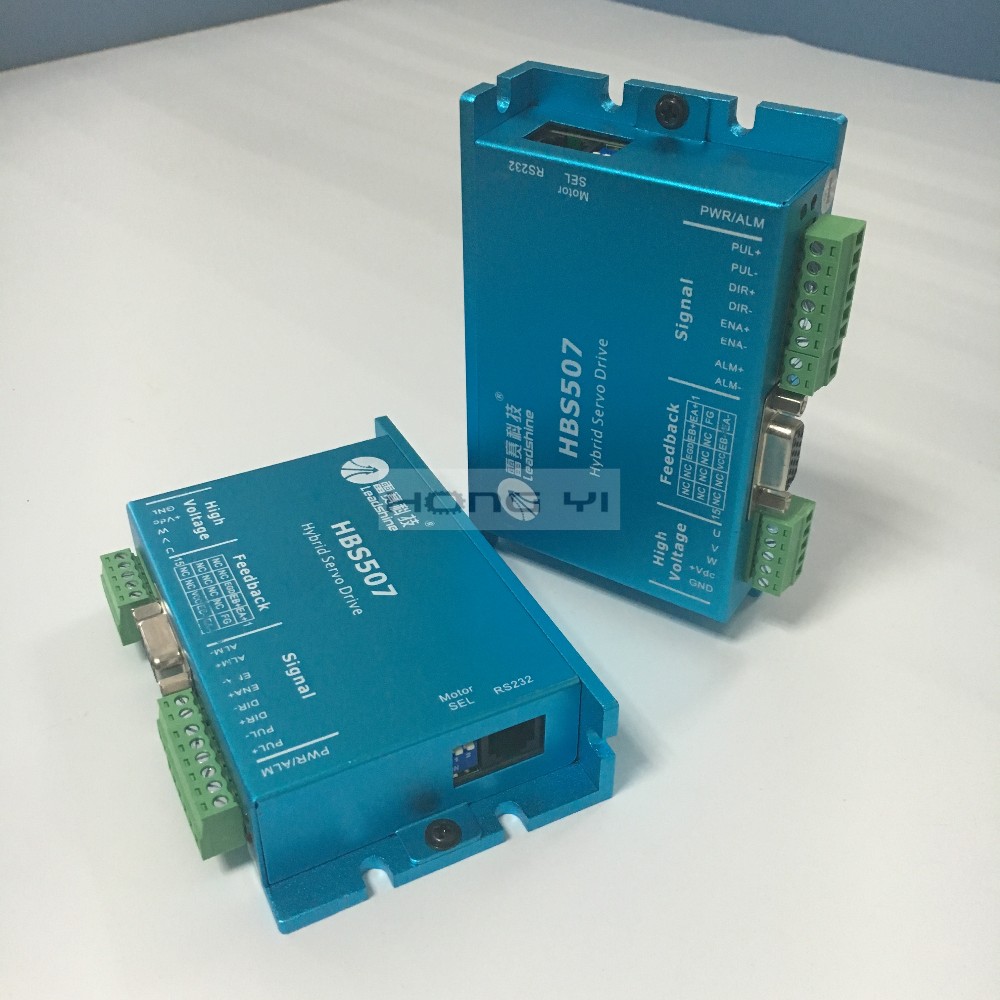

servo Drive HBS 507

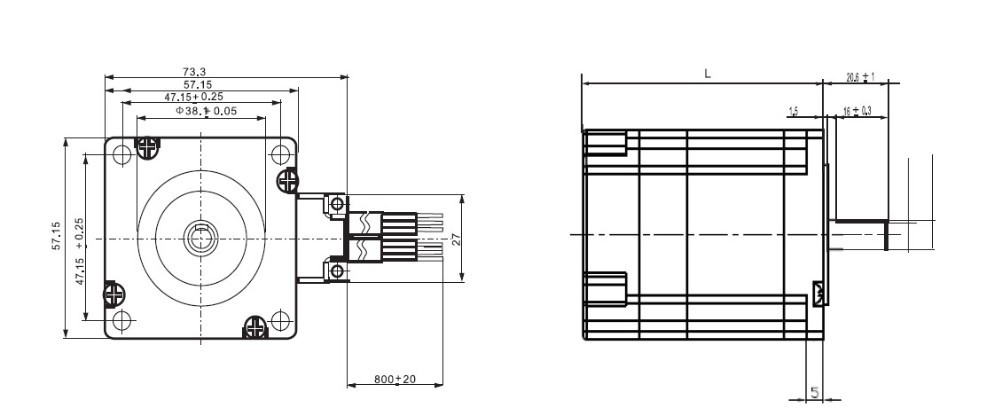

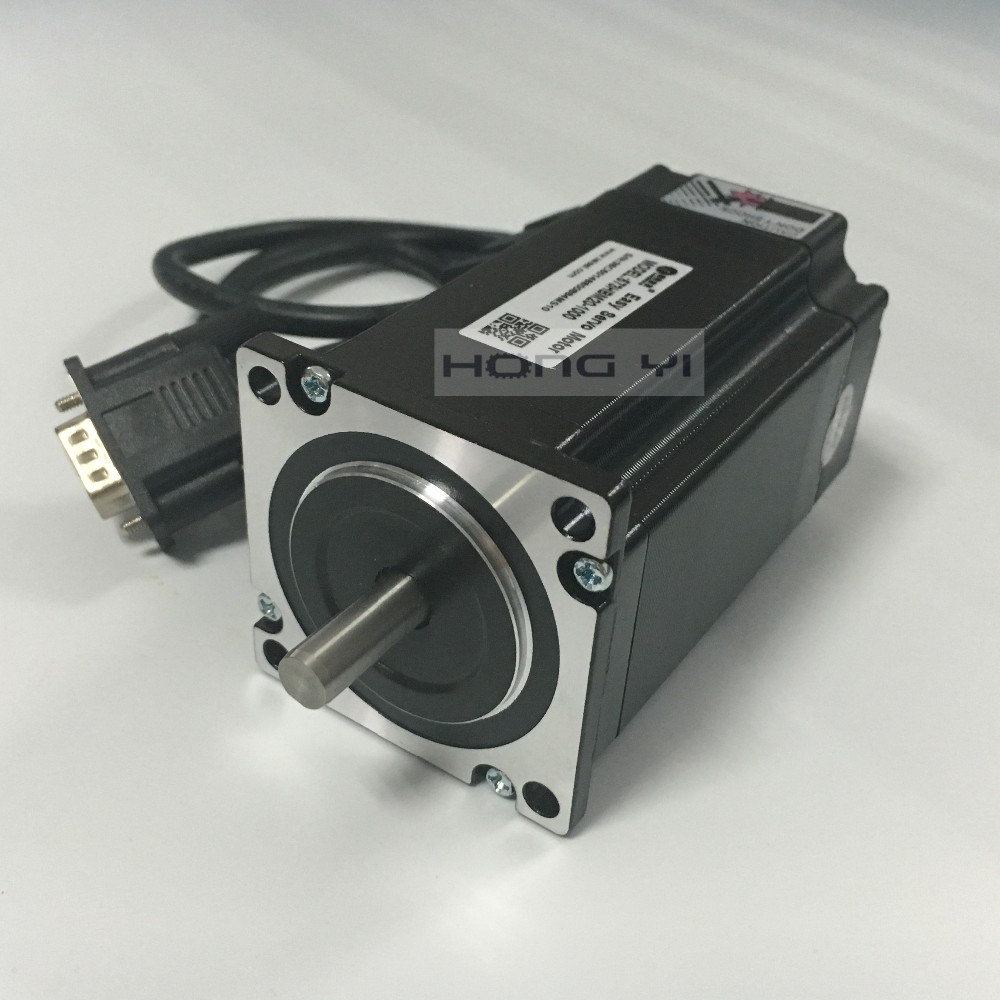

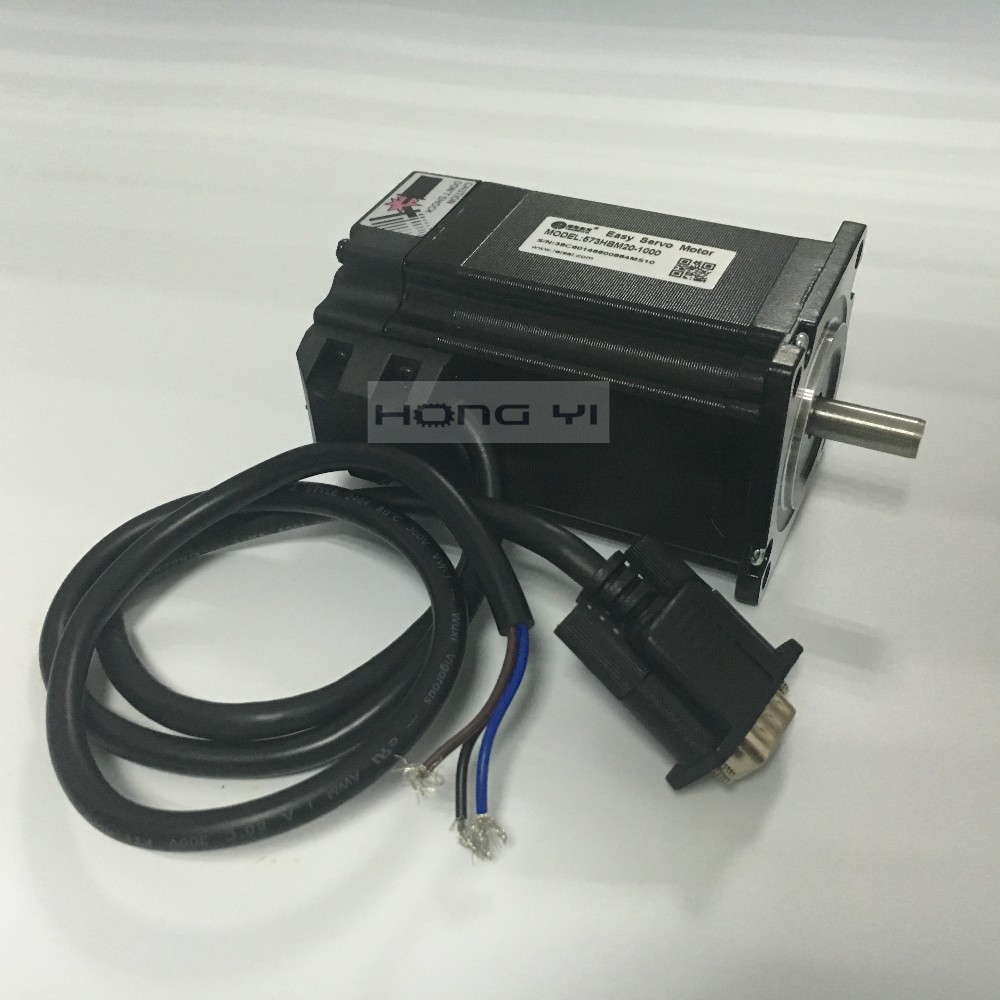

servo motor 573HBM20-EC-1000

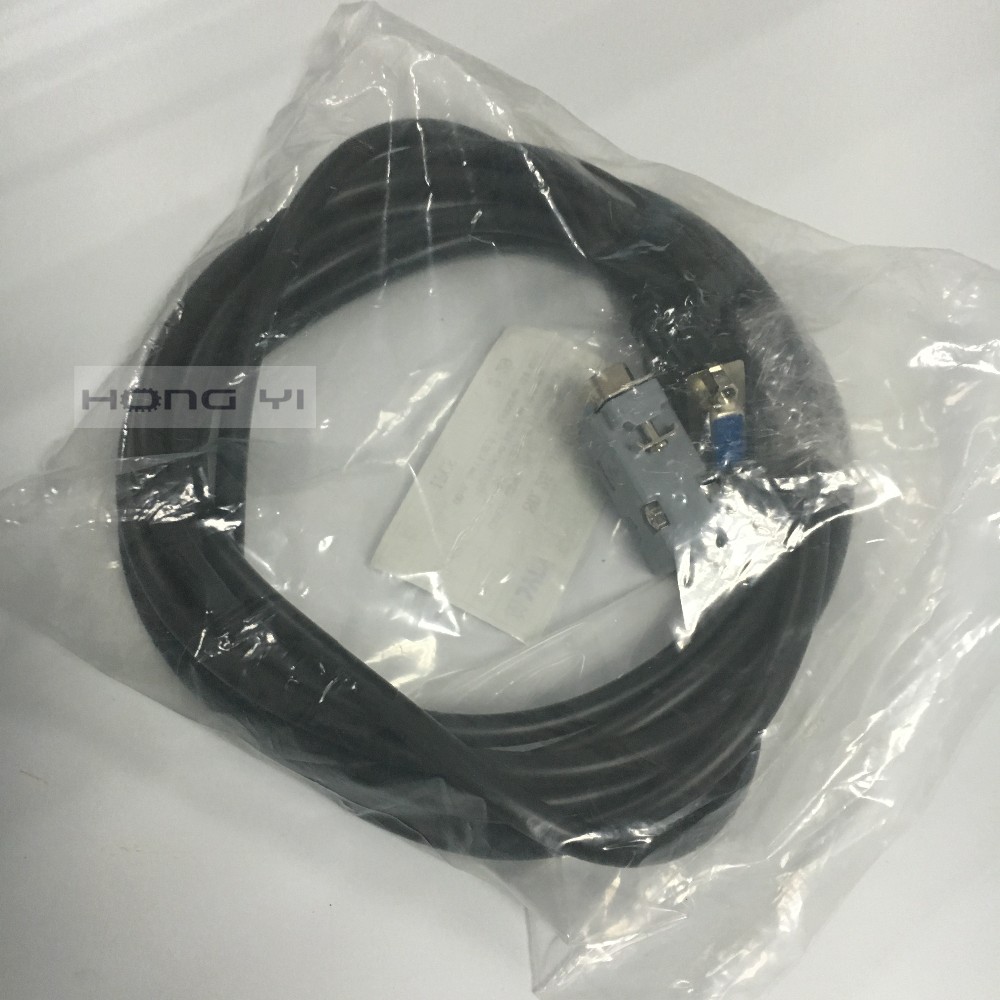

1000 line encoder HBS57
2016 New Year and New Price
This is Leadshine New model HBS507 ,and NEMA34 driver is HBS806
our store have many types of motion control products, including CNC products, if you are willing, please tell us what you need,we will find it for you ,Until you are satisfied ,we also have the technical Support ,so if you have any question ,please let us know ,then we can take the value suggest for you , thanks
Features
Closed-loop, eliminates loss of synchronization
Broader operating range – higher torque and higher speed
Reduced motor heating and more efficient
Smooth motion and super-low motor noise
Do not need a high torque margin
No Tuning and always stable
Fast response, no delay and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Lower cost
Introduction :
The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.
