| Application: | Lighting Controller,Solar System Controller,Thermal Controller,Charger Controller |
|---|---|
| is_customized: | Yes |
| Maximum Current: | 15mA |
| Model Number: | MT50 |
| Brand Name: | EPever |
| Rated Voltage: | 15V |
| Model: | MT50 |
| Is_customized: | Yes |
| Faceplate dimensions: | 98*98 mm / 3.86*3.86 in |
| Frame dimensions: | 114*114 mm / 4.49*4.49 in |
| Connector type: | RJ45 |
| Meter cable: | Standard 2m, max .50m |
| Meter weight: | 0.190 Kg |
| Self-consumption: | Backlight and acoustic alarm on<65mA Backlight on<23mA |
| Application : | Remote meter |
| Unit Type: | piece |
| Package Size: | 13cm x 13cm x 8cm (5.12in x 5.12in x 3.15in) |
| Package Weight: | 0.4kg (0.88lb.) |
Quick Details
Specifications
MT-50 Remote Meter for Tracer Series MPPT Solar Charge Controller and Program EPsolar Controller with LS-B,LS-BP,Tracer-A Series
>>Overview
The new-generation remote display unit MT50 for LSxxxxB(P), VSxxxxBN and TracerxxxxBN(P) controllers is an associated display device which supports both the latest communication protocol and the voltage technology standard of solar controllers.
>>Features
-
Automatic identify the controller, and display relevant parameter data
-
Large-screen informative LCD displays all the operating data and system working status
-
Simple and convenient operation
-
Real-time alarm of failure information
-
Longer communication distance based on RS485
-
Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control
-
Battery type selection: Gel, sealed, flooded and User(programable)
-
Programmable parameters
-
Automatic identify and display the type, model and relevant parameter data of controllers;
-
Energy statistics display function
-
Real-time display the operational data and working status of the connection devices in digital, graphic and textual forms by a large-screen multifunction LCD;
-
Direct, convenient and rapid operation of six navigation function keys;
-
Both data and power flowing on the same lead, no need for external power;
-
Real-time data monitoring and remote load switchover of the controllers, and data browse and modification of device parameters, charge control parameters and load control parameters;
-
Real-time display and acoustic alarm of failure information of the connection devices;
-
Longer communication distance based on RS485.
>>Specifications
| Self-consumption | Backlight and acoustic alarm ON<65mA Backlight ON<23mA Backlight OFF<15mA |
| Faceplate dimensions | 98×98 mm |
| Frame dimensions | 114×114 mm |
| Connector type | RJ45 |
| Meter cable | Standard 2m,Max 50 m |
| Meter weight | Simple package: 0.23 Kg Standard package:0.32 Kg |
| Ambient temperature | -20℃~+70℃ |

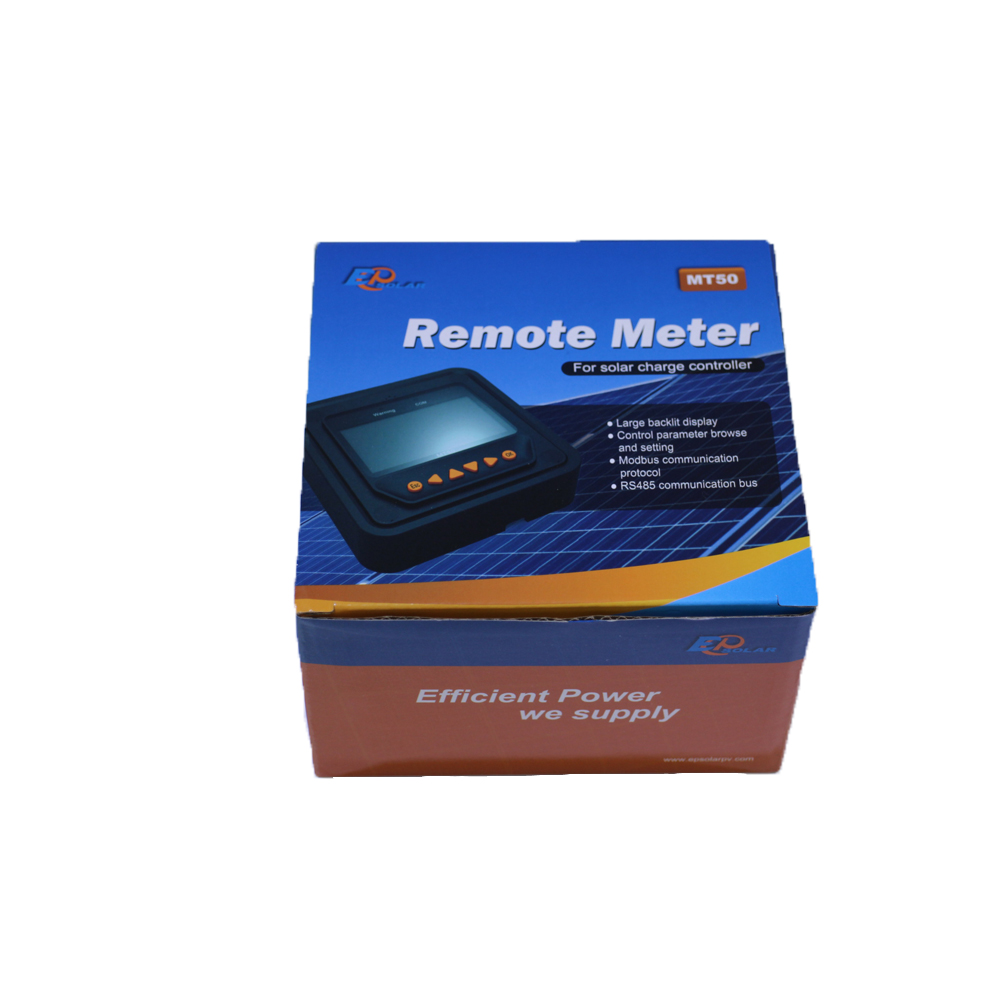

>>Product show
