10A Solar Lawn Light Controller 12V IP68 PWM Regulator with Load 8 hours Working after Sunset for 12V LED Lighting Outdoor

Item Description:

The CMP-03-Series solar charge controller applies a microchip for intelligent control.The charging efficiency can be highly increased by using dual-mos charging circuit ,compared to normal diode for reserve current protection. The controller can extend the battery life with build-in 4-stage PWM charging program.It is equipped with various of protection function such as over-charge protection,over discharge protection ,over-load protection,reverse current protection.

The Load is working 8 hours after sunset

Feature:

1.Build-in industrial micro controller.

2.LED display,auto memory function,IP68 protection.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual MOSFET Reverse current protection ,low heat production

Package Included:

1. 1x 10A Solar Contorller with Light and Timer Control

Function:

1. Prevent the battery from over charging, over discharging and Reverse discharging to solar panel during nights.

2. Controller will start the lighting system in the evening automatically according to the surrounding luminance.

3. Controller can automatically shut down the lighting system:

A: Automatically shut down the light at dawn when battery is full.

B: Automatically shut down the light when battery is low.

The mode has been set inside the controller before exit the factory.Do ask for further more information from your distributor.

Mode	Description
Charge only	Only use the charge function of the controller. Load output is forever closed
Light-open+delay	Load on after sunset and closed after 1-13hour
D2D	Dusk to Dawn(have delay)
System	Load always output(unless battery is low)
debug	Dusk to Dawn(no delay)

Parameter Table:

MODEL	CMP-03 10A
Batt voltage	12V/24V auto adapt
Charge current	10A
Discharge current	10A
Max Solar input	41V
Charge drop	<0.2V
Discharge drop	<0.25V
Equalization	14.8V
Bulk	14.5V
Acceptance	14.2V PWM
Float	13.8V
Charge reconnect	13.0V
Discharge stop	11.2V
Discharge reconnect	12.6V
Self-consume	<10mA
Voltage of open light	Solar panel 8V(delay 10s)
Voltage of close light	Solar panel 8V(delay 60s)
Temperature compensation	N/C
Operating temperature	-35~+60 °C
Size/Weight	82*45*21mm /120g

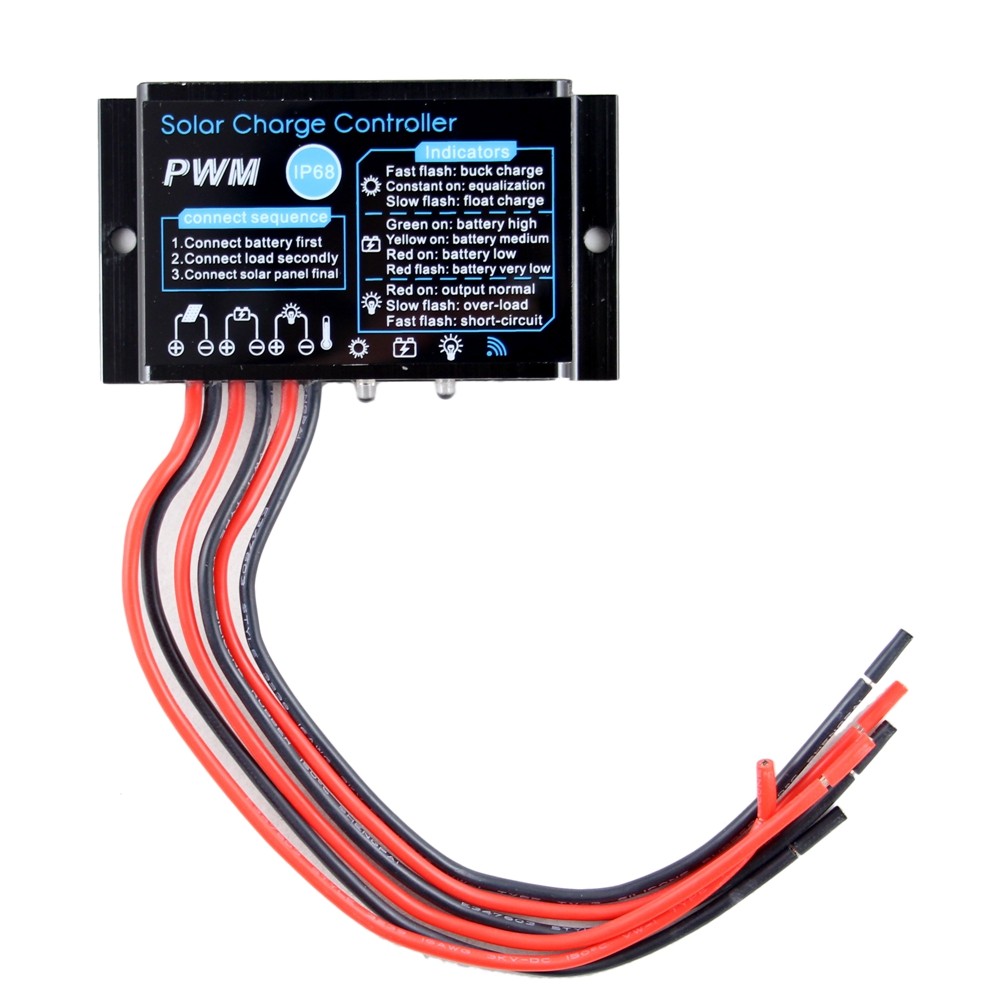

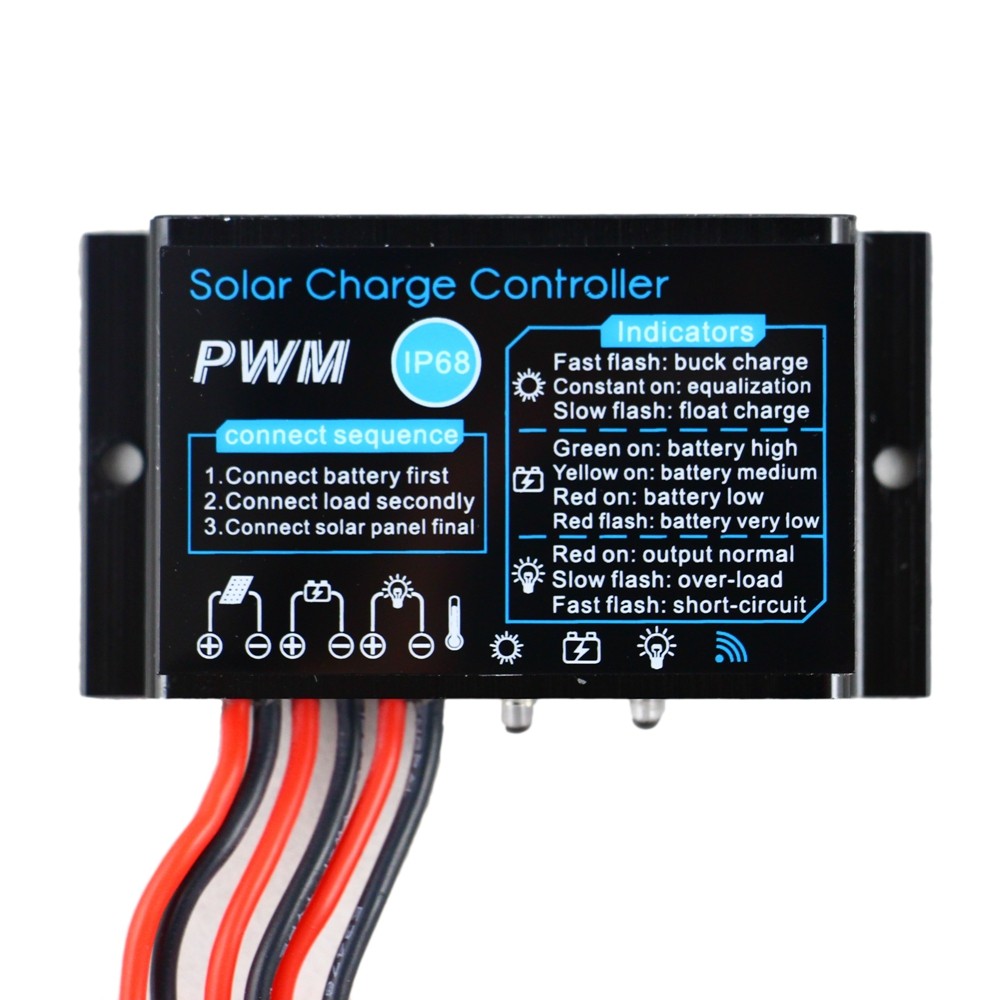

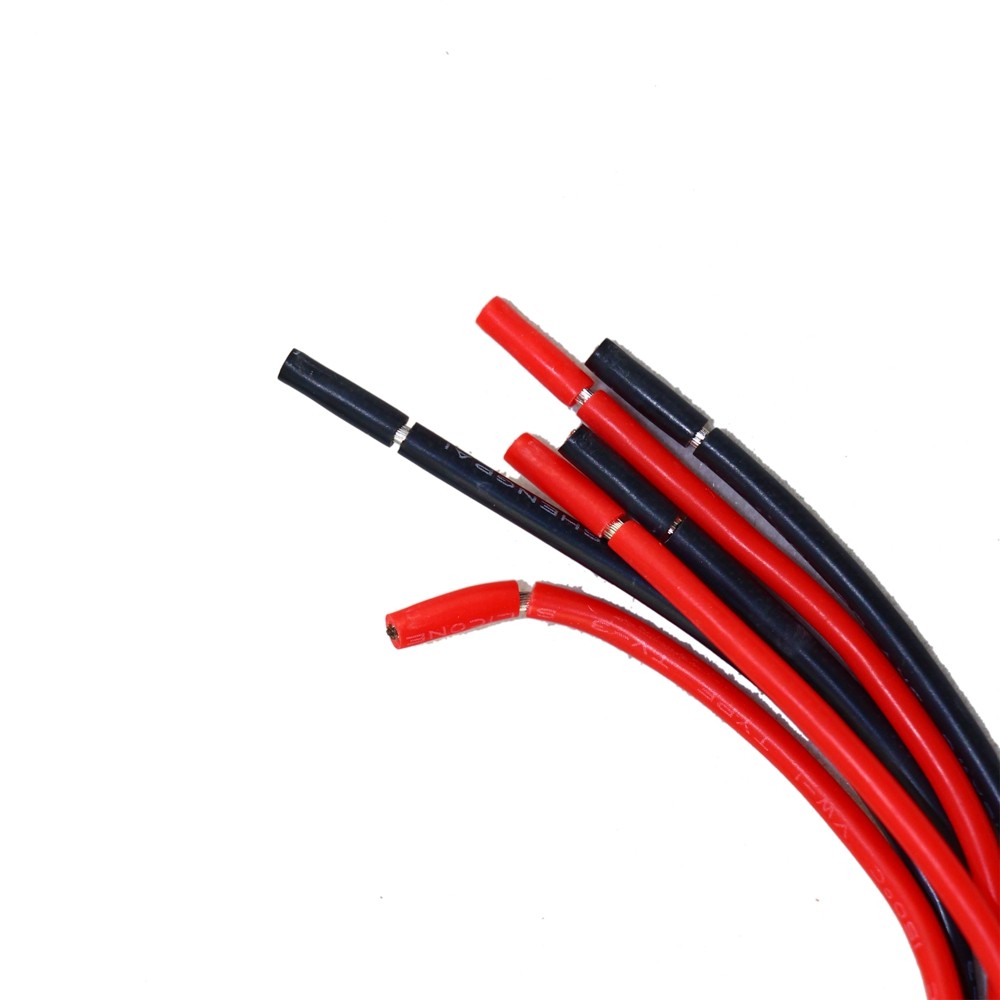

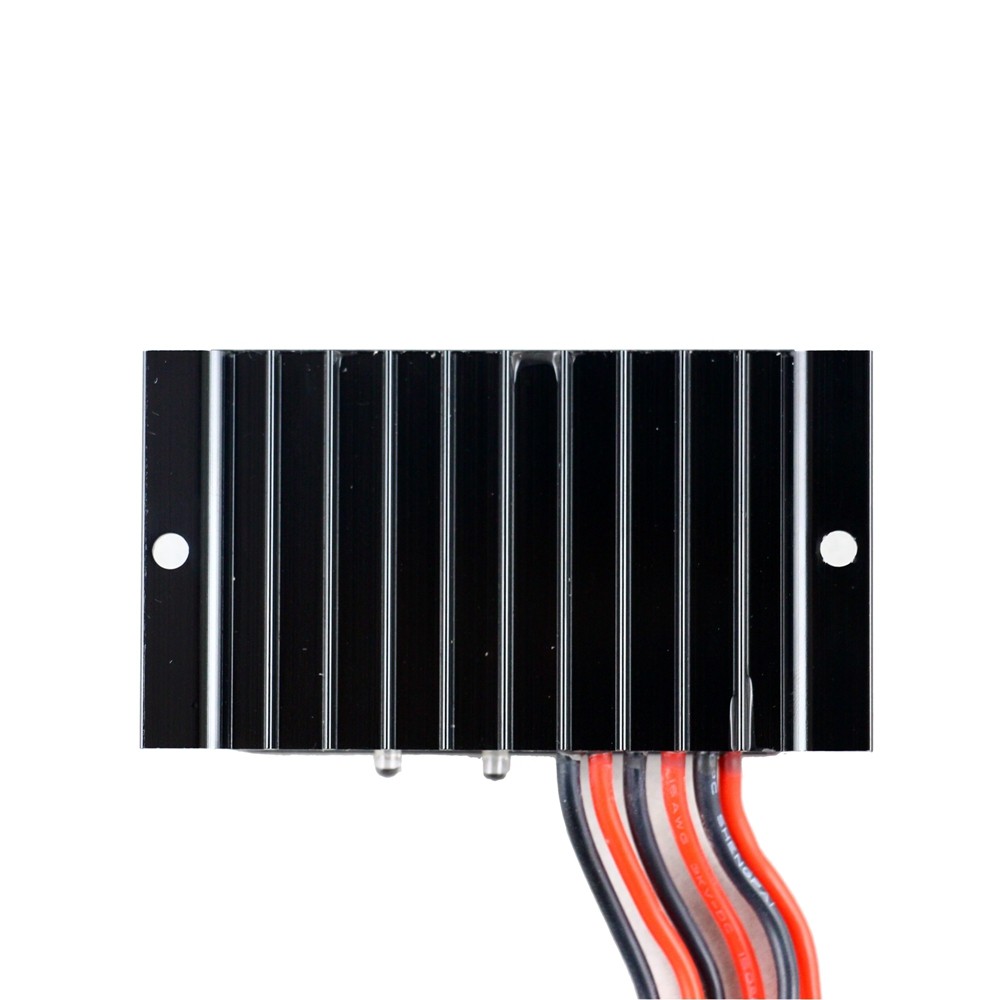

Item Picture:
