| Model Number: | OW-MTD209 |
|---|---|
| Warranty: | 2 years |
| Voltage: | 90-260V |
| Certification: | CE,RoHS,EMC |
| Power Source: | AC |
| Power Tolerance: | 6% |
| Brand Name: | JOHOLED |
| Is Dimmable: | No |
| Material: | Aluminum |
| Body Color: | White |
| Switch Type: | Knob switch |
| Light Source: | high quality led |
| Application: | Commercial application |
| Beam angle: | 30 degree |
| Installation: | Fixed mount on the ceiling( No need to cut a hole) |
| Finish: | Sand silver or Podwer coating |
| LED driver: | Built-in |
| Light source: | High power Epistar COB |
| Sizes: | See belowing table |
| CRI: | Equal or more than Ra80 |
| LED luminous efficancy: | 100-120LM/W |
| Color option: | White,Black,Silver |
| Unit Type: | piece |
| Package Size: | 20cm x 20cm x 25cm (7.87in x 7.87in x 9.84in) |
| Package Weight: | 2.0kg (4.41lb.) |
Quick Details
Specifications
Feature:

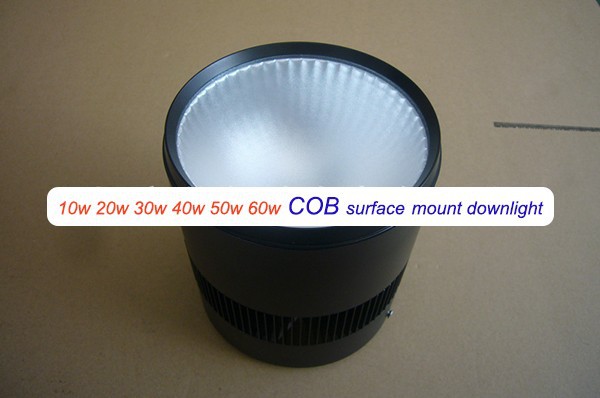

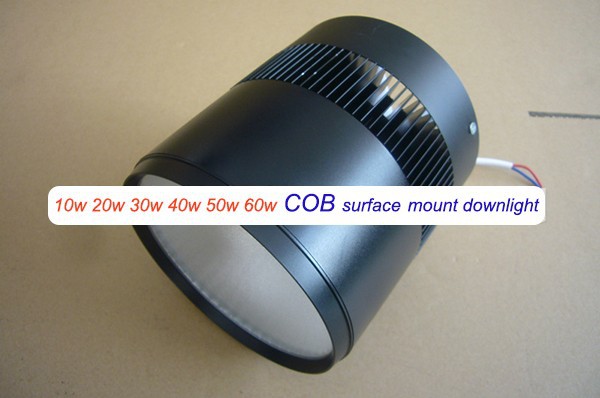

2015 New design super bright LED downlight used for areas where recessed mounting is not possible!
Adapt Epistar COB from Taiwan with high ratio of performance to price.
Using the fixture on the light, easy to install on the ceiling and no need to cut a hole on the ceiling.
Full of aluminum material to transmit the heat from inside lamp body.
Modern, simple and fashion design, perfect for indoor, porch, hallway, hall, cafe, hotel, motel, shop.
All drivers have been fulfilled the professional test to ensure the downlight can work in longtime, highly efficient and stable.
Super power Epistar COB 10w 20w 30w 40w 50w 60w to be optional.
Technical dates:
Product brand: OURWAYLED
Product model: OW-MTD209
Feature: High power fixed mount downlight
Main material: Aluminum

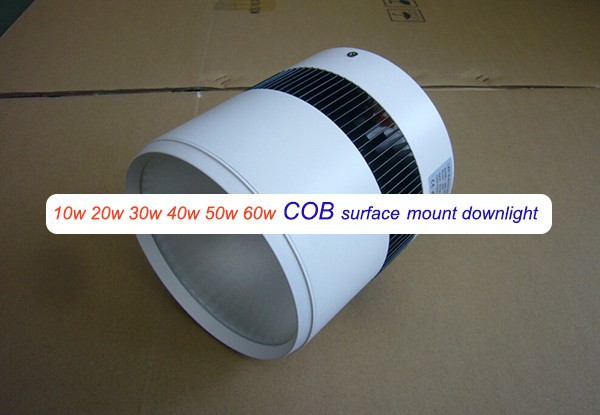

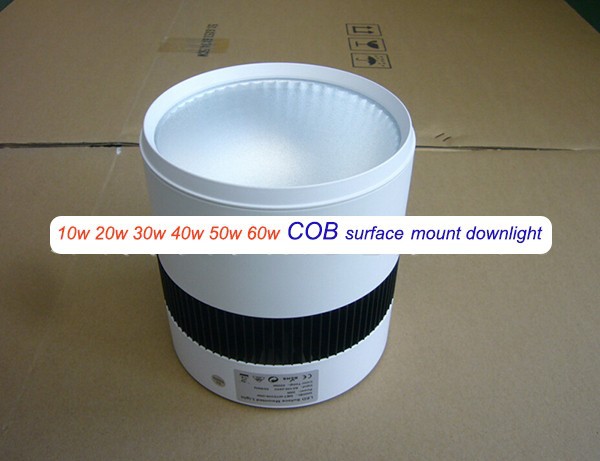

Color optional: Black/White
Connection: Wiring type
Installation: Fixed mount on the ceiling( No need to cut a hole)
Light angle: Non adjustable

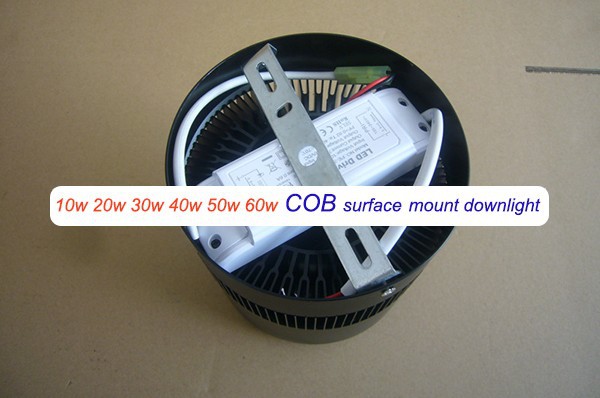

LED Diver: Isolated,constant current and Bulit-in
Protection: IP42
Country of origin: Shenzhen China
Ambient temperature: -20 - +45 degree Celsius
Quality Assurance: 2 years
Life time: More than 35,000 hours
Thechnical dates:
Power consumption:10w 20w 30w 40w 50w 60w
Input Voltage: AC85~265V 50/60Hz
Power factor: More than 0.9
Light source: Epistar Cob from Taiwang
Luminous efficancy: 80LM/W
Color temperature: 3000k/4000k/5700k
CRI: Ra80
Emitting light angle: 30 degree
Finish: Sand silver or Podwe coating
Dimensions:
10W Φ80mm x H135mm
20w Φ105mm x H145mm
30w Φ146mm x H165mm
40w Φ146mm x H200mm
50w Φ146mm x H200mm
60w Φ146mm x H200mm
Test item of finish LED downlight before shipping:
1.Load test(Electrical spec.test)

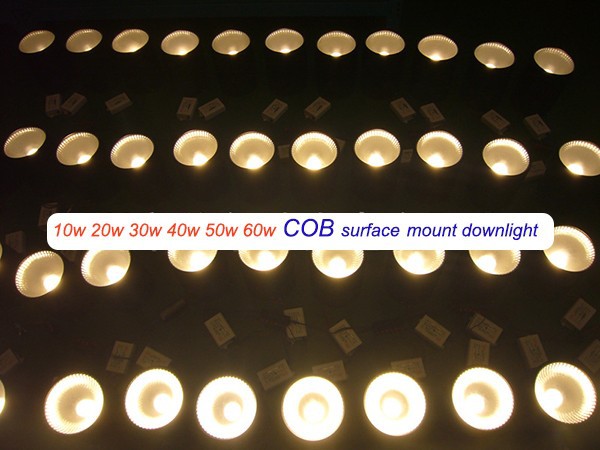

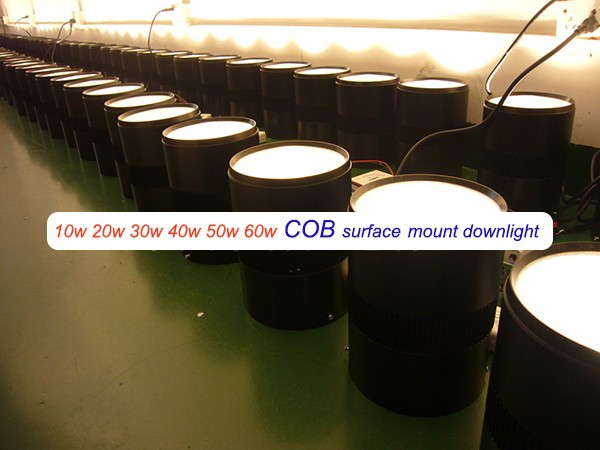

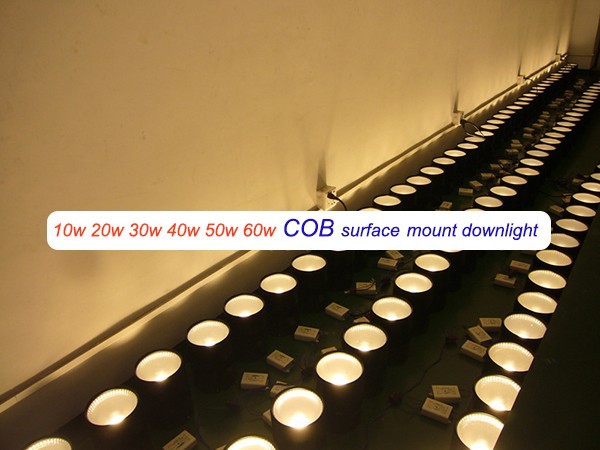

2.Aging test
3.High-pot test
4.Grounding conduction test
5.Install test
6.Adhesion tes
Notes: Not designed for pendant or cord mounting
How to install for the down light:
Be sure the safety and power off before installling this lamp
1.Use a screwdriver to screw out the bolts which connected the mounting base and main fixture.
2. Fix the mounting base on the ceiling.
3. Connect the power cords of the lamp to the 110V or 220V circuits.
4. Put the main fixture onto the mounting base, aim at the bolt hole, then fix the screws.
