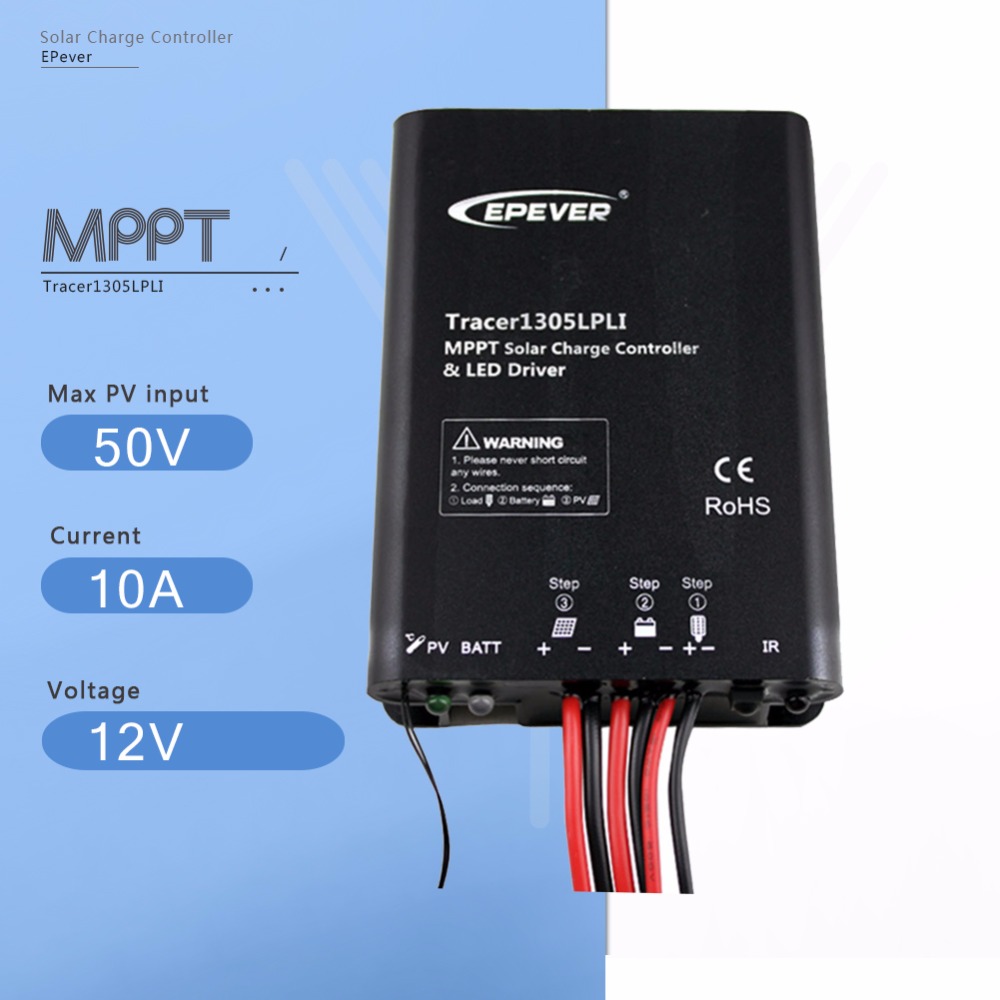

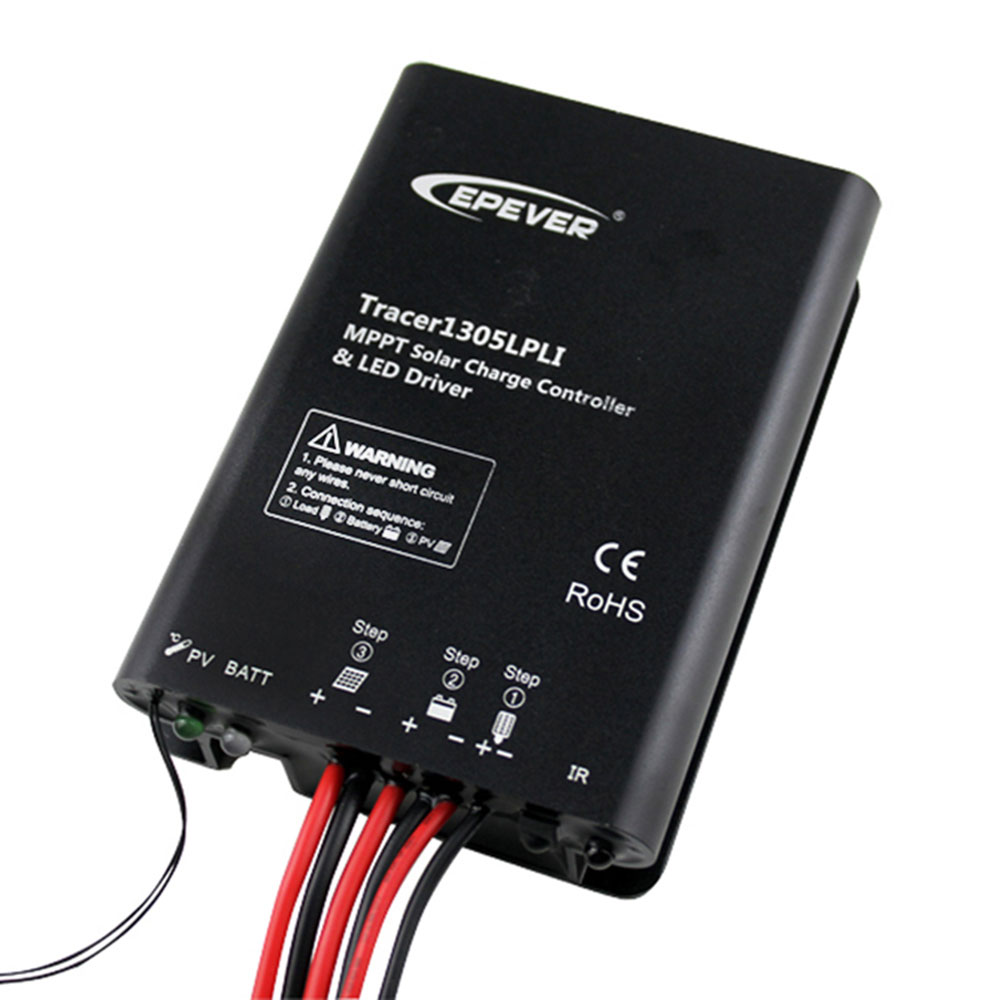

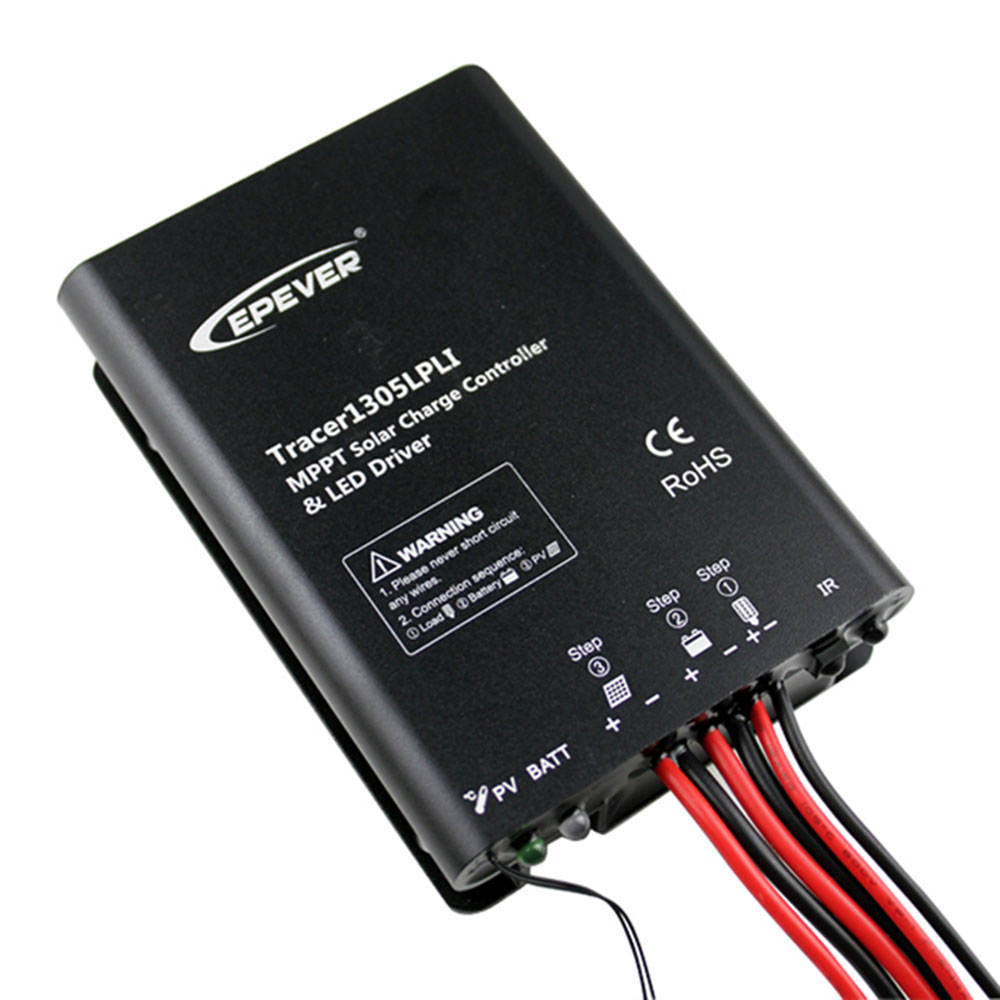

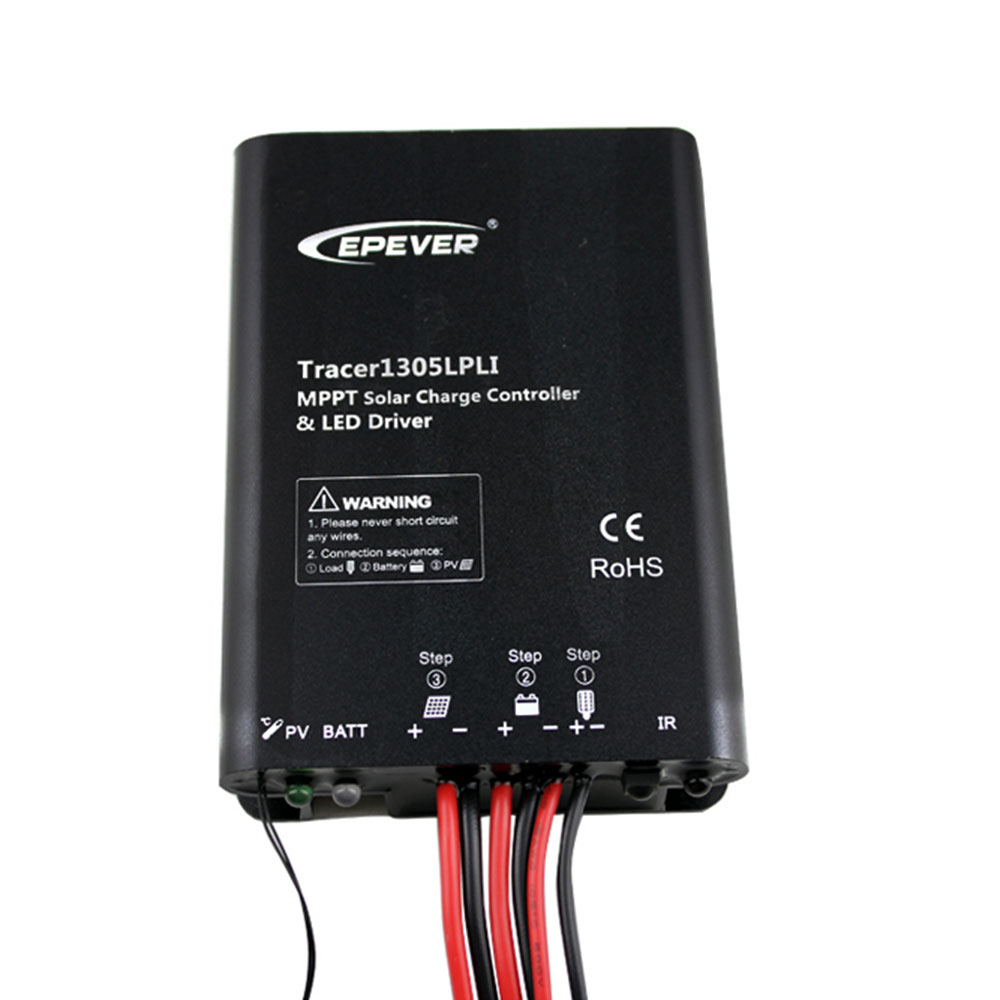

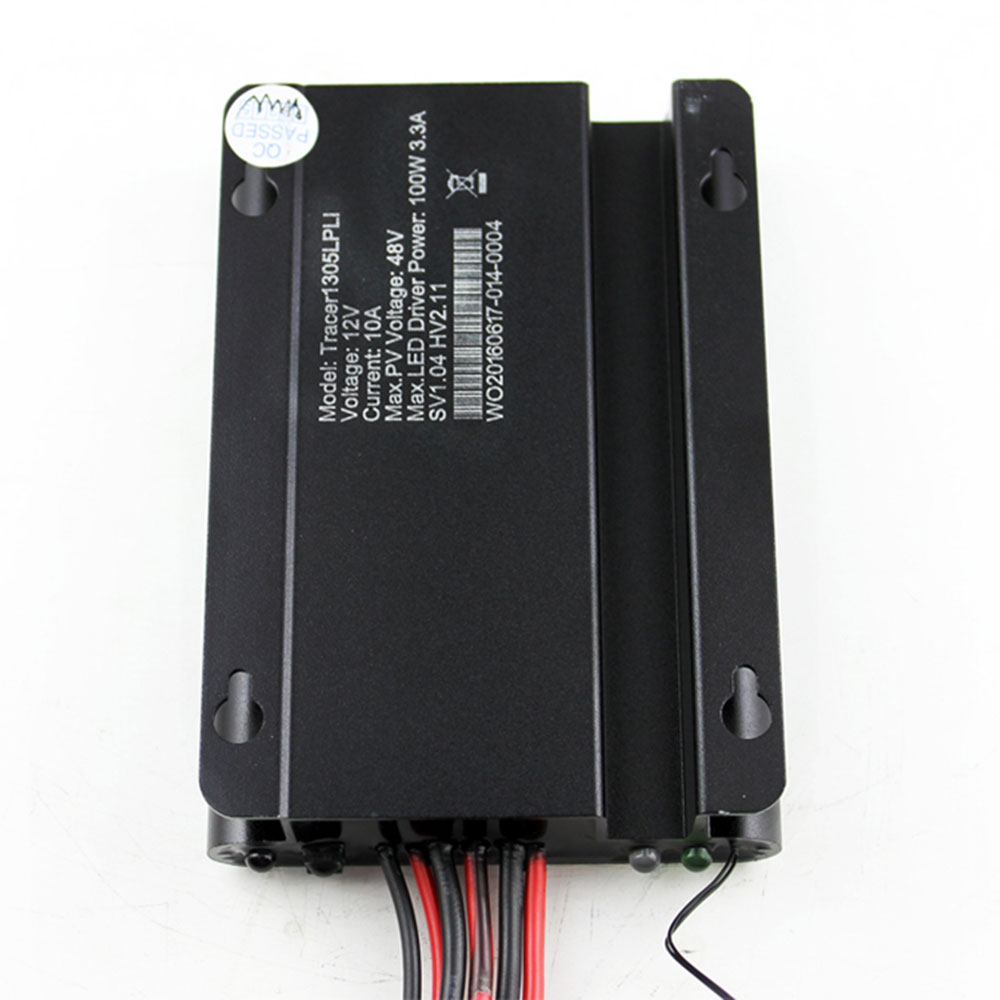

Tracer1305LPLI 10A MPPT Solar Charge Controller 12V Lithium Battery Solar Charge Regulator with Timer LED Driver Programmed App



>>Overview



The Tracer LPLI series lithium battery MPPT solar charge controller combines solar charge

controller and LED constant current driver into one unit which is ideal for solar LED Lighting,

especially when dimmer function is needed. The advanced Maximum Power Point Tracking

charging methods enables the system charging and discharging management to obtain the

most radical optimization. Increase the system flexibility, yet lower down the system cost.



?>>Fetures



•   Adopt high quality components of ST,IR and Infineon, make sure product using lifespan

•   Wide working environment temperature(-40℃～60℃)

•   Apply to lithium battery

•   Lithium battery self-activating function

•   Lithium battery low temperature protection function

•   Load reduce power automatically

•   Maximum conversion efficiency of 98%

•   Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99.5%

•   Ultra-fast tracking speed and guaranteed tracking efficiency

•   Accurately recognizing and tracking of multiple power points

•   12/24VDC automatically identifying system voltage or user-defined working voltage

•   Digital precision constant current control and the control accuracy are less than ±2%

•   Maximum output efficiency of 96%

•   PV and Load power limitation function

•   The output current can be adjusted among the rated power and current range

•   Monitoring and setting parameter via Mobile APP, PC Monitor setting software with RS485 communication interface.

•   Aluminum housing for better cooling

•   Real-time energy statistics function

•   IP68 waterproof degree

•   Long lifespan design,five years warranty



>>Electronic protections



•  PV reverse polarity protection

•  Battery reverse polarity protection

•  Battery over voltage protection

•  Battery over discharge protection

•  Battery overheating protection

•  Load short circuit protection

•  Lithium battery Low Temperature(Default 0℃) protection



>>Load working mode



•   Manual Mode

•   Light ON/OFF(Default)

•   Light ON + Timer

•   Real-time Control

•   Intelligent Power Mode



>>Technical specifications



?Model	Tracer1305LPLI
Nominal system voltage	12V
Rated battery current	10A
Rated charge power	130W/12V
Max. PV open circuit voltage	50V(Min.Temp.)  45V(25℃)
MPP Voltage range	( Batteryvoltage +2V)～36V
Max. output current	3.3A
Max. output power	100W
Output voltage range	( Max. battery voltage+2V)～ 46V
Load open circuit voltage	46V
Load over voltage protection	50V
Maximum output efficiency	96%
Output current control accuracy	≤2%
Battery Type	LiFePO4 / Li-NiCoMn / User
Boost charging voltage*	LiFePO4:14.6V / Li-NiCoMn:12.51V / User:9-34V
Float charging voltage*	LiFePO4:14.4V / Li-NiCoMn:12.39V / User:9-34V
Low voltage reconnect voltage*	LiFePO4:12.0V / Li-NiCoMn:10.8V / User:9-34V
Low voltage disconnect voltage*	LiFePO4:10.6V / Li-NiCoMn:9.3V / User:9-34V
Self-consumption	≤15mA/12V;≤22mA/24V
Communication	IR communication
Overall dimension	124×89×30mm
Net weight	0.52kg
Enclosure	IP68(1.5m,72h)
Working environment temperature	-40℃～+60℃

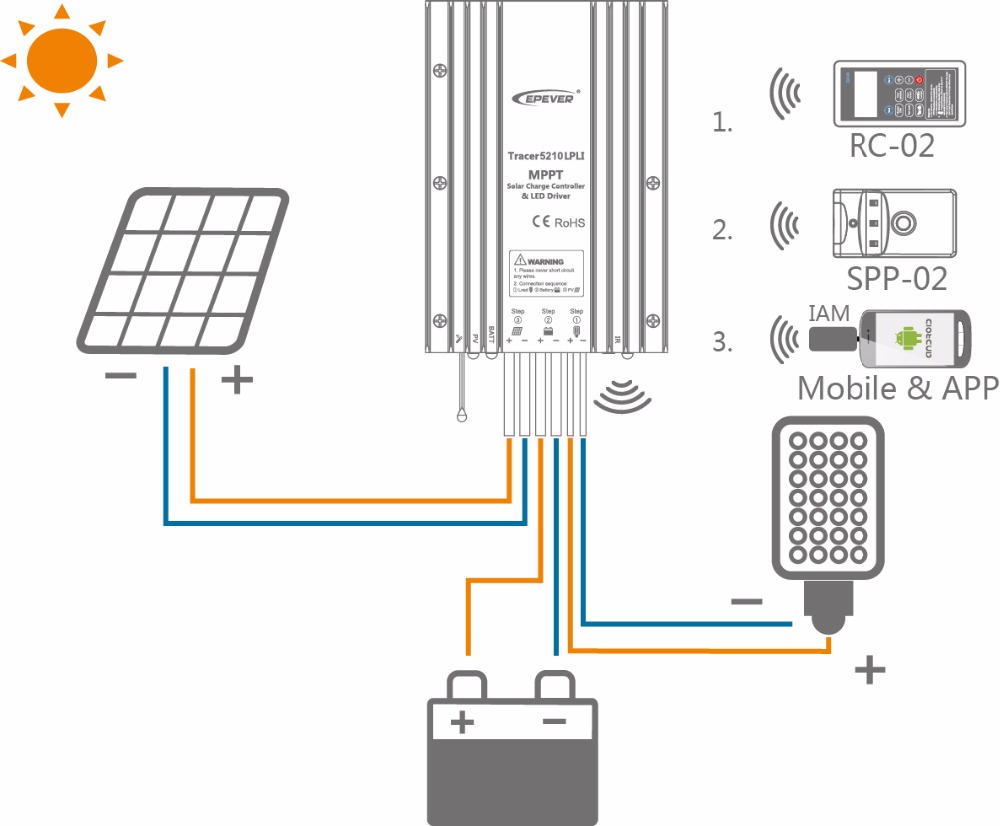

* Programmable voltage value by SPP-02 , RC-02 and APP.
