| Application: | Water Heater Controller,Thermal Controller |
|---|---|
| Brand Name: | FuWell |
| is_customized: | Yes |
| Maximum Current: | Other |
| Rated Voltage: | Other |
| Voltage: | 220V 380V |
| Thread Size: | 1.5inch DN40 47mm |
| Power: | 3KW 6KW 9KW 12KW |
| Material: | 304 Stainless Steel |
| Heater Thread Diameter: | 10mm |
| Function 1: | Heater for water liquid |
| Function 2: | Heating for Solar water Tank, Water heaters, |
| Function 3 : | Heating Element for boiling water, self-made water tank |
| Notice 1 : | no dehydrate use |
| Notice 2 : | No for acid, alkali, oil, groundwater, deep water and corrosive liquid |
| Unit Type: | piece |
| Package Size: | 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in) |
| Package Weight: | 1.0kg (2.20lb.) |
Quick Details
Specifications

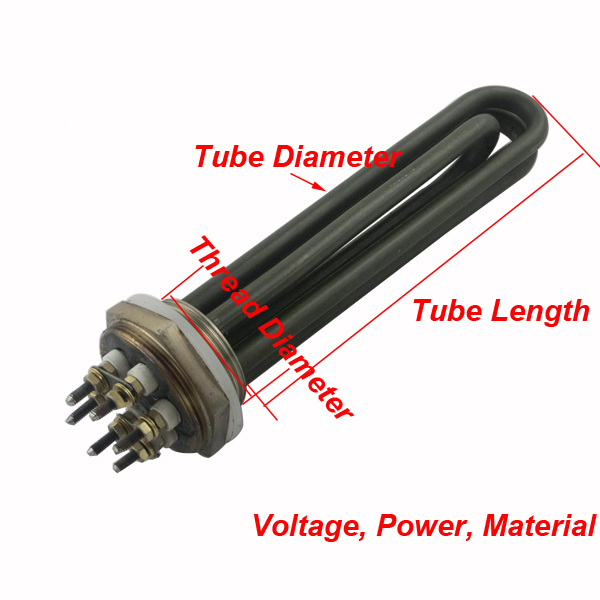

Heater Ectricity Pipe 1.5 inch Electric Heating Tube DN40 Water Tank Heating Rod 220V 380V 3-6-9-12kw 304 Stainless Steel
| Tube Length | Tube Dia. | Thread Dia. | Voltage | Power | Material | |
| 200mm | 10mm | DN40 | 220V | 3KW | 304 SUS | 304SUS |
| 200mm | 10mm | DN40 | 380V | 3KW | 304 SUS | 304SUS |
| 230mm | 10mm | DN40 | 220V | 4.5KW | 304 SUS | 304SUS |
| 230mm | 10mm | DN40 | 380V | 4.5KW | 304 SUS | 304SUS |
| 260mm | 10mm | DN40 | 220V | 6KW | 304 SUS | 304SUS |
| 260mm | 10mm | DN40 | 380V | 6KW | 304 SUS | 304SUS |
| 300mm | 10mm | DN40 | 220V | 9KW | 304 SUS | 304SUS |
| 300mm | 10mm | DN40 | 380V | 9KW | 304 SUS | 304SUS |
| 350mm | 10mm | DN40 | 220V | 12KW | 304 SUS | 304SUS |
| 350mm | 10mm | DN40 | 380V | 12KW | 304 SUS | 304SUS |
Please note: Under the confidtion of insulation, the International Starndard for the heater power accept allowance -10%~+5%. If you care about it, please do not make order. Thanks.
