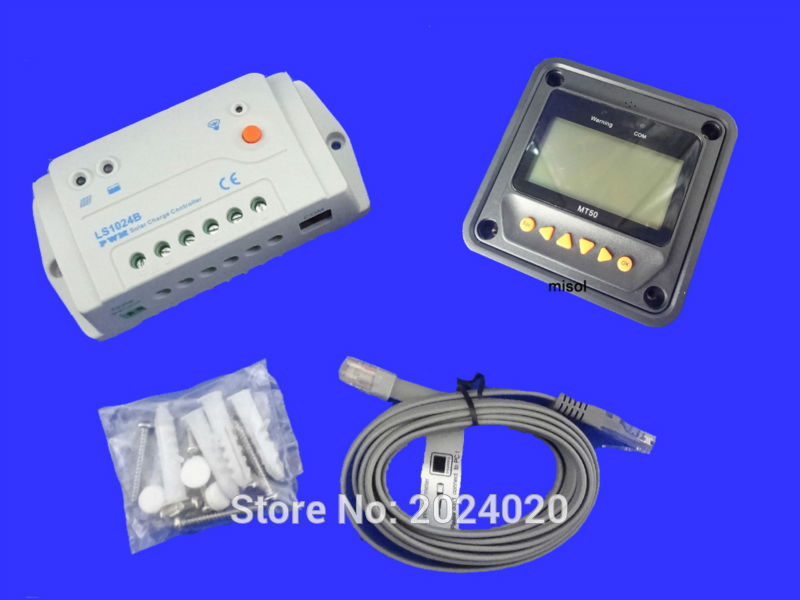

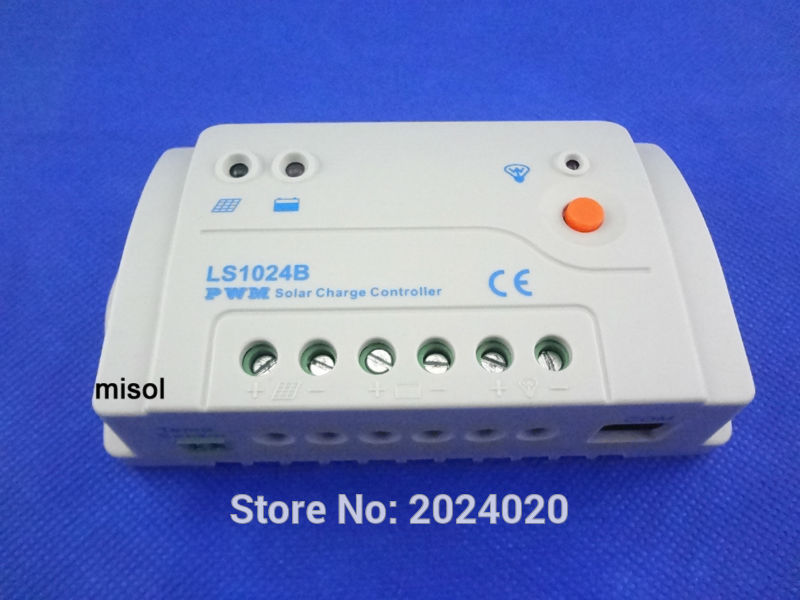

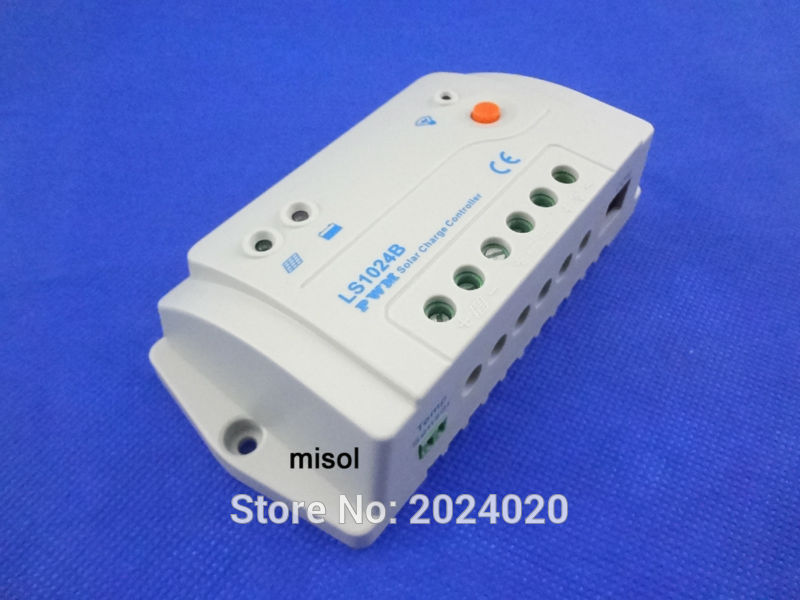

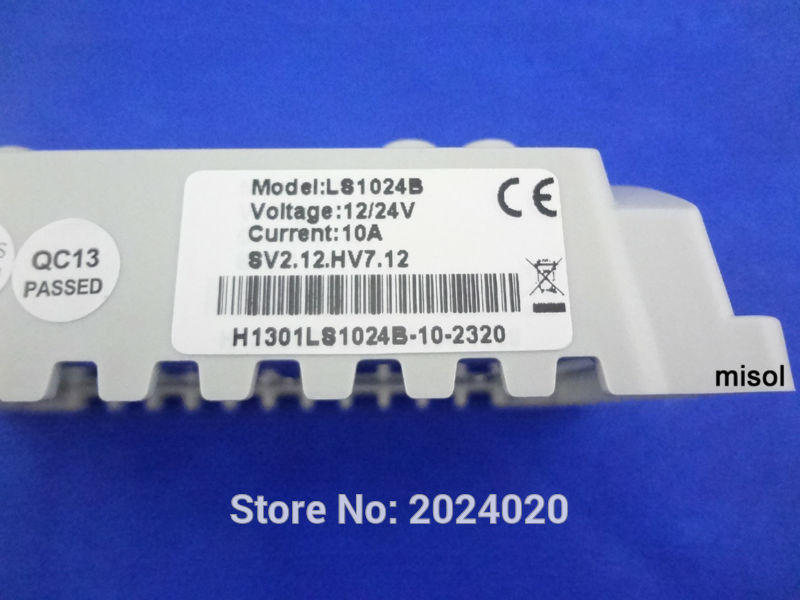

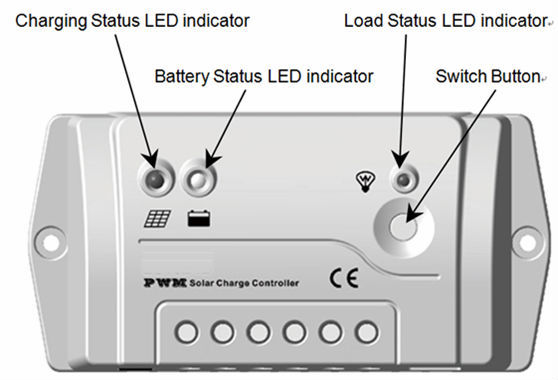

This listing includes: 1 unit of solar regulator 10A, 12/24V.(LS1024B), and 1 unit of remote meter (MT50)
?Manual in English
Package included:
Solar regulator: 1 unit
Manual: 1 unit

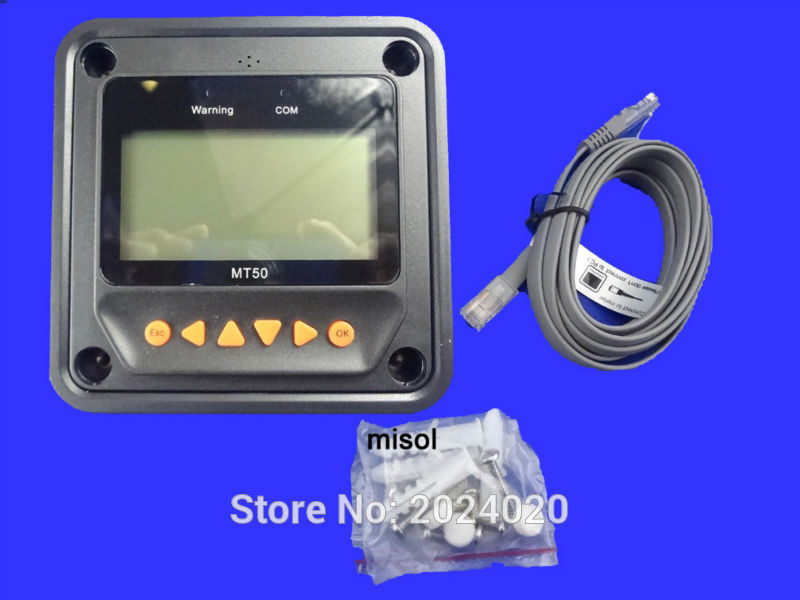

Remote meter 1 unit

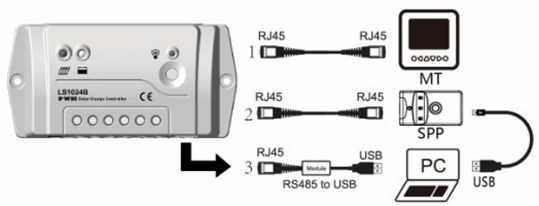

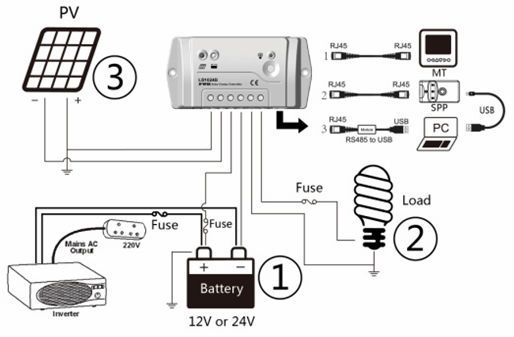

Three methods to program the controller:

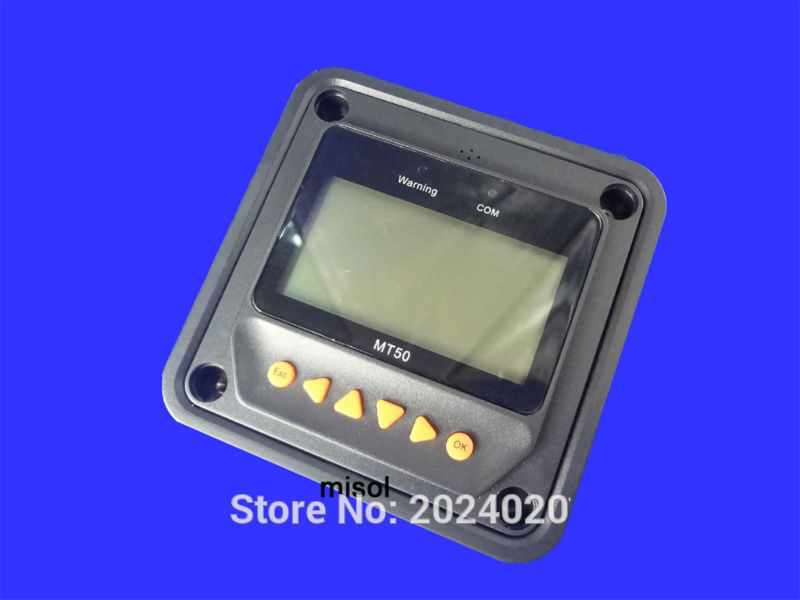

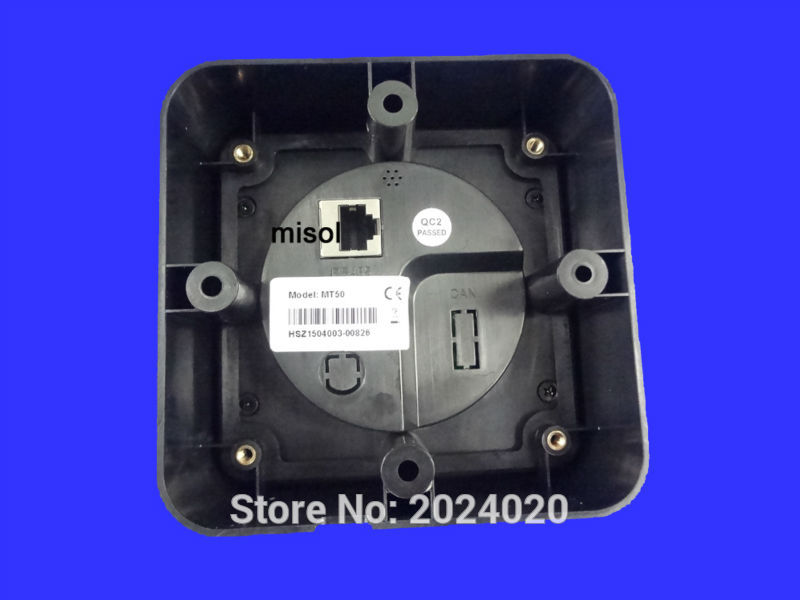

1. Remote Meter:MT50 (Use standard network communication cable)
2. Super Parameter Programmer, SPP-01(Use standard network communication cable)
This method can realize one-key setting operation which is suitable for bulk quantity products setting or applied in the projects..
(Remark: SPP-1 is optional)
3. PC monitoring setting software “Solar Station Monitor”(Use dedicated RS485 to USB communication cable)
(remark: this RS485 to USB is optional)
Key Features:
Nominal system voltage 12 / 24VDC*
Maximum PV input voltage 50V
Nominal charge / discharge current 10A
Gel, Sealed, Flooded and user-defined battery type option (It means Lithium Battery is supported as well.)

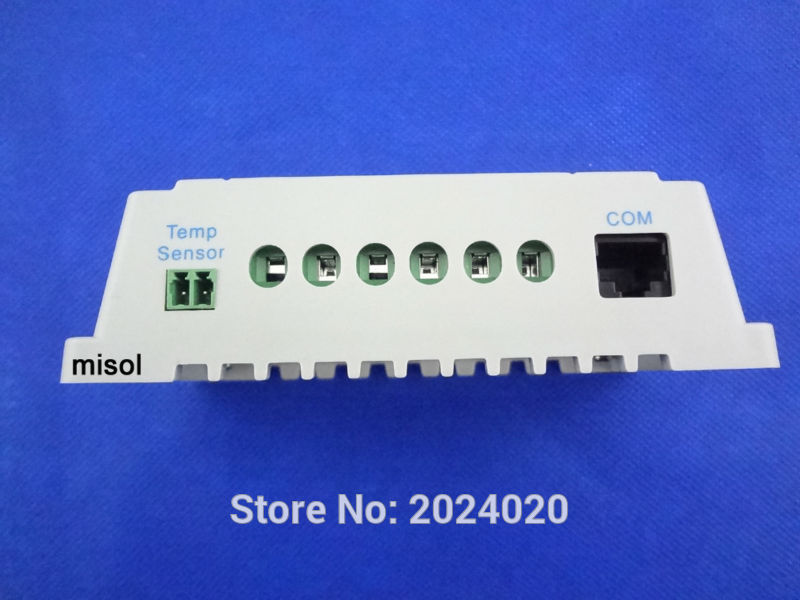

Communication RS485 to PC (you need the cable RS485 to USB: Optional)
Connection to the display meter: MT50
| Description | Parameter |
| Nominal System Voltage | 12 /24VDC |
| Max. PV input voltage | 50V |
| Max. Battery Terminal Voltage | 34V |
| Rated Battery Current | 10A |
| Charge Circuit Voltage Drop | ≤0.28V |
| Discharge Circuit Voltage Drop | ≤0.20V |
| Self-consumption | ≤8.4mA/12V; ≤7. 8mA/24V |
| Temperature compensation coefficient | -3mV/ cel.degree /2V (Default) |
| Grounding | Positive grounding |
| Parameters Setting for Different Battery Type | ||||
| Battery charging setting | Gel | Sealed | Flooded | User |
| Over Voltage Disconnect Voltage | 16.0V | 16.0V | 16.0V | 9~17V |
| Charging Limit Voltage | 15.0V | 15.0V | 15.0V | 9~17V |
| Over Voltage Reconnect Voltage | 15.0V | 15.0V; | 15.0V | 9~17V |
| Equalize Charging Voltage | —— | 14.6V | 14.8V | 9~17V |
| Boost Charging Voltage | 14.2V; | 14.4V | 14.6V | 9~17V |
| Float Charging Voltage | 13.8V; | 13.8V; | 13.8V | 9~17V |
| Boost Reconnect Charging Voltage | 13.2V; | 13.2V | 13.2V | 9~17V |
| Low Voltage Reconnect Voltage | 12.6V | 12.6V | 12.6V | 9~17V |
| Under Voltage Warning Reconnect Voltage | 12.2V | 12.2V | 12.2V | 9~17V |
| Under Voltage Warning Voltage | 12.0V | 12.0V | 12.0V | 9~17V |
| Low Voltage Disconnect Voltage | 11.1V | 11.1V | 11.1V | 9~17V |
| Discharging Limit Voltage | 10.6V | 10.6V | 10.6V | 9~17V |
| Equalize Duration | —— | 2 hrs. | 2 hrs. | 0~3 hrs. |
| Boost Duration | 2 hrs. | 2 hrs. | 2 hrs. | 0~3 hrs. |
Notes:
1. The default battery type is Sealed. For Gel, Sealed, Flooded battery type, the voltage point is fixed, unable to modify it.
2. User type is the user defined battery type. The default value is the same as sealed type.
