| Item Type: | LED Modules |
|---|---|
| Certification: | CE,RoHS |
| Voltage: | 12V |
| Length: | 48mm |
| Features: | High Lumen |
| Height: | 8mm |
| Width: | 15mm |
| Model Number: | WM-XH003-12V-02 |
| Protection level: | IP68 |
| Usage: | backlighting, channel letter,decoration |
| Cover: | Plastic |
| Place of Origin: | Guangdong, China (Mainland) |
| is_customized: | Yes |
| Unit Type: | lot (100 pieces/lot) |
| Package Size: | 22cm x 18cm x 5cm (8.66in x 7.09in x 1.97in) |
| Package Weight: | 1.4kg (3.09lb.) |
Quick Details
Specifications

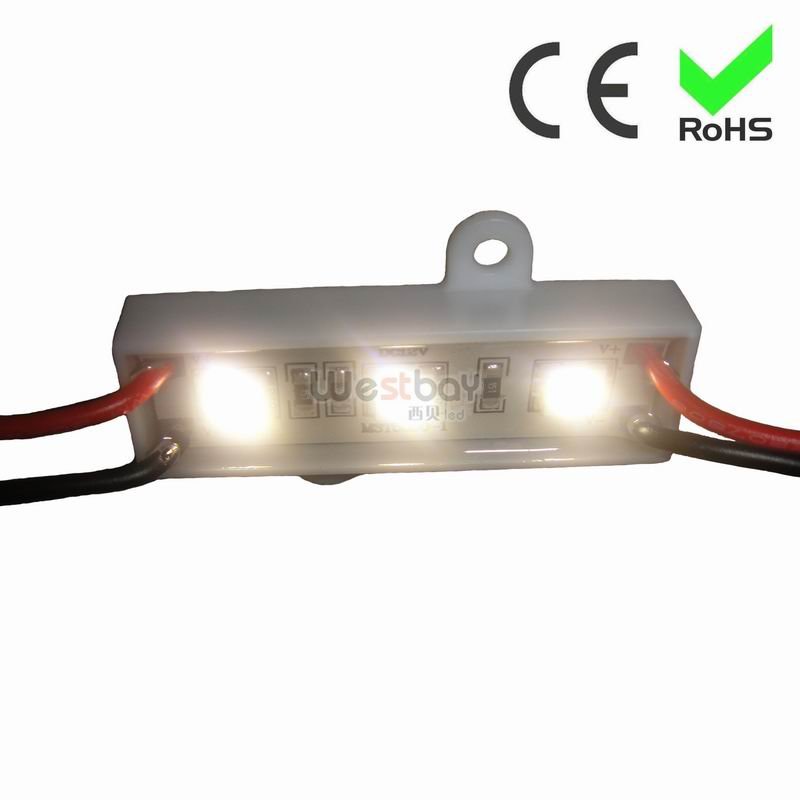

Warm white waterproof DC12V led module for channel letter,backlights,high brightness, popular at Spain, Brazil, USA,France,Italy
Waterproof LED modules; High lumen LED modules; LED module for advertisng; LED module for light box; LED module as backlighting resourse. China led module, led module china supplier,good quality module light
Features:
1) Hight brightness SMD led, reach to 18lm each led,NOT NORMAL 15LM
2) Long Life span
3) Lower Light decrease
4) Engery saving, environment friendly
5) No RF interference, No UV radiation
6) Competitive price
Application:
1). This product can be applied to 7~15cm thickness, medium and large LOGO Plastic Light Box and KTV bars interior decorative light^
2). This product can achieve the effects of RGB seven colors gradual change, jumping change, etc throught LED controllers.
Attention:
1). This module could be linked up to 100PCS modules, more than 100PCS is strictly prohibited.
2). The diameter of the power cord should be based on the actual maximum current, the product power, cabling length (recommended no more than 8 meters), and the voltage of transmission line.
3). Please following the positive and negative marking on the circuit board to connect wires.
Parameters:
| Item Number | Color | LED Qty |
Working Voltage | Work Current | Wave Length | Power (Watt) |
Size (mm) |
Casing |
PCB color |
Waterproof IP68 | Package |
| WM-RH003-12V-02 | Red | 3pcs | DC12V | 60mA | 625-630nm | 0.72 | 48*15*8 | Plastic | white | Epoxy | Max 50 pcs/strip |
| WM-YH003-12V-02 | Yellow | 3pcs | DC12V | 60mA | 590-595nm | 0.72 | 48*15*8 | Plastic | white | Epoxy | Max 50 pcs/strip |
| WM-BH003-12V-02 | Blue | 3pcs | DC12V | 60mA | 465-470nm | 0.72 | 48*15*8 | Plastic | white | Epoxy | Max 50 pcs/strip |
| WM-GH003-12V-02 | Green | 3pcs | DC12V | 60mA | 515-520nm | 0.72 | 48*15*8 | Plastic | white | Epoxy | Max 50 pcs/strip |
| WM-WH003-12V-02 | White | 3pcs | DC12V | 60mA | 6000-9000K | 0.72 | 48*15*8 | Plastic | white | Epoxy | Max 50 pcs/strip |
| WM-WW003-12V-02 | Warm White | 3pcs | DC12V | 60mA | 2700-3200K | 0.72 | 48*15*8 | Plastic | white | Epoxy | Max 50 pcs/strip |

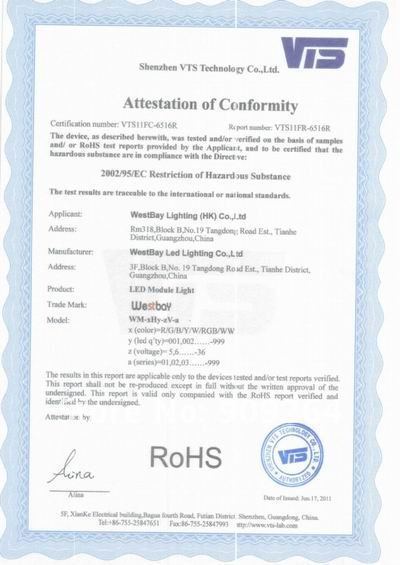

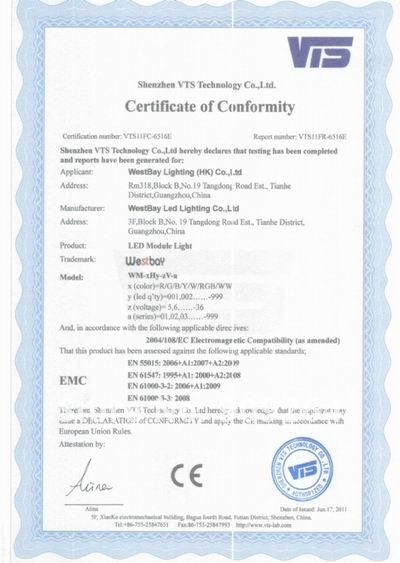

Certification:
