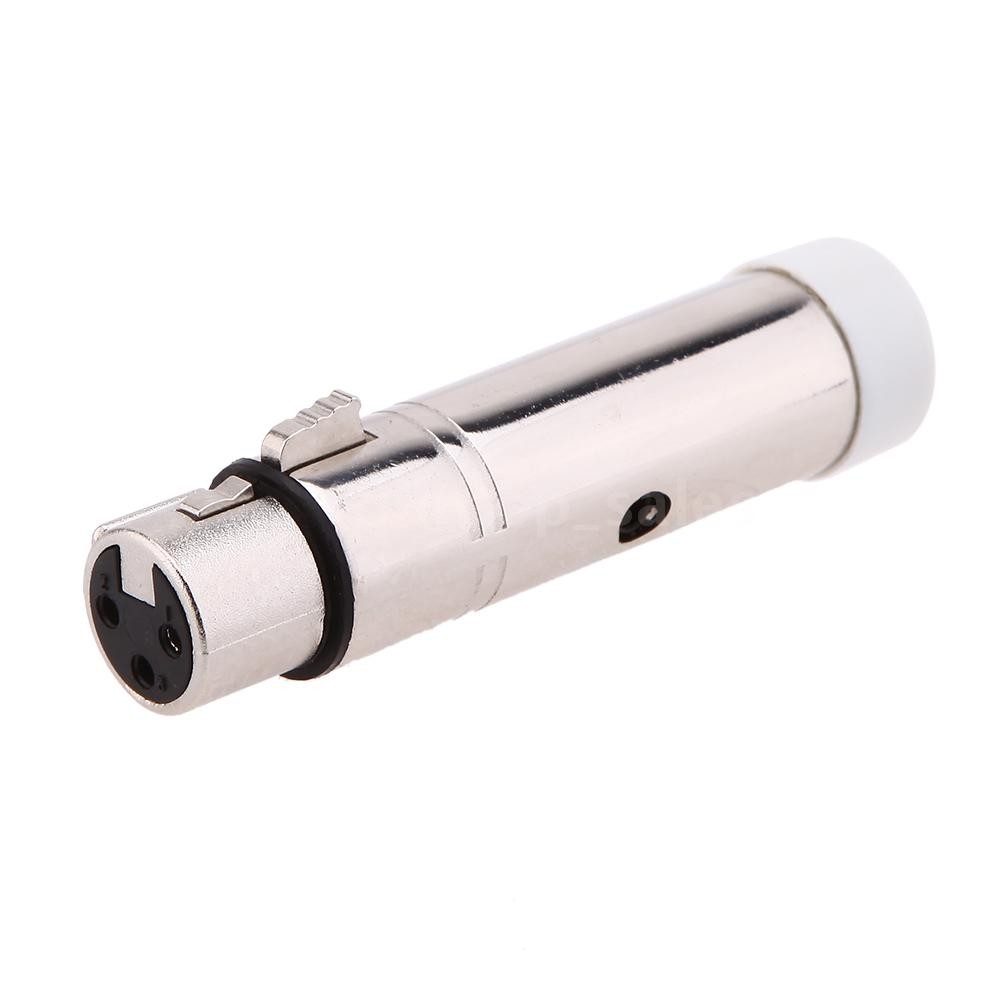

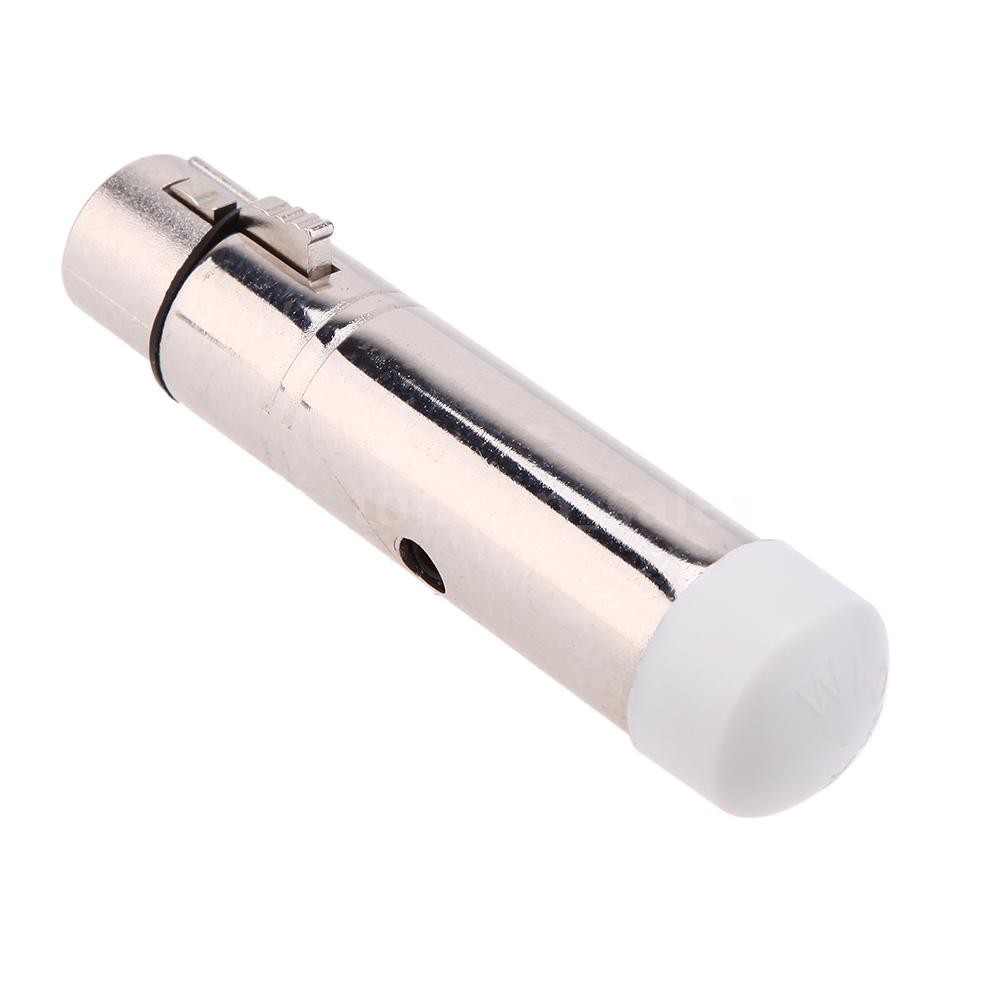

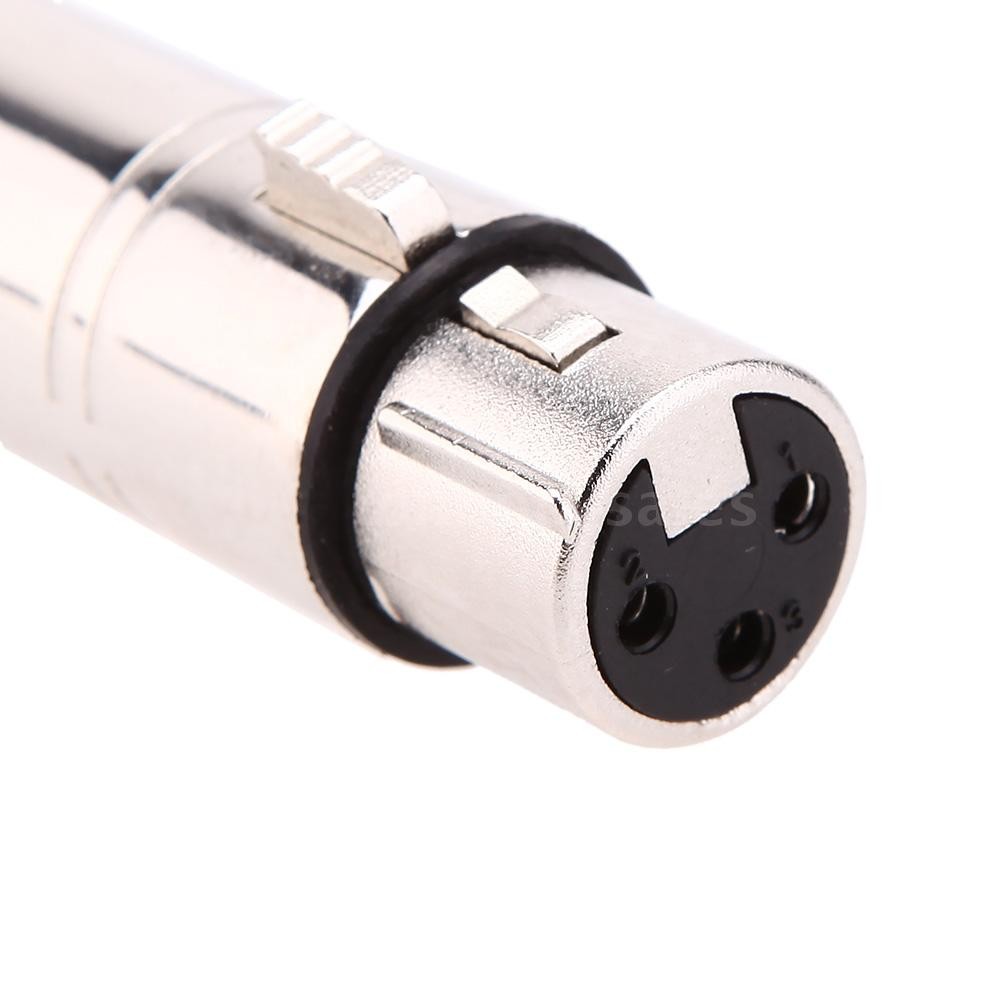

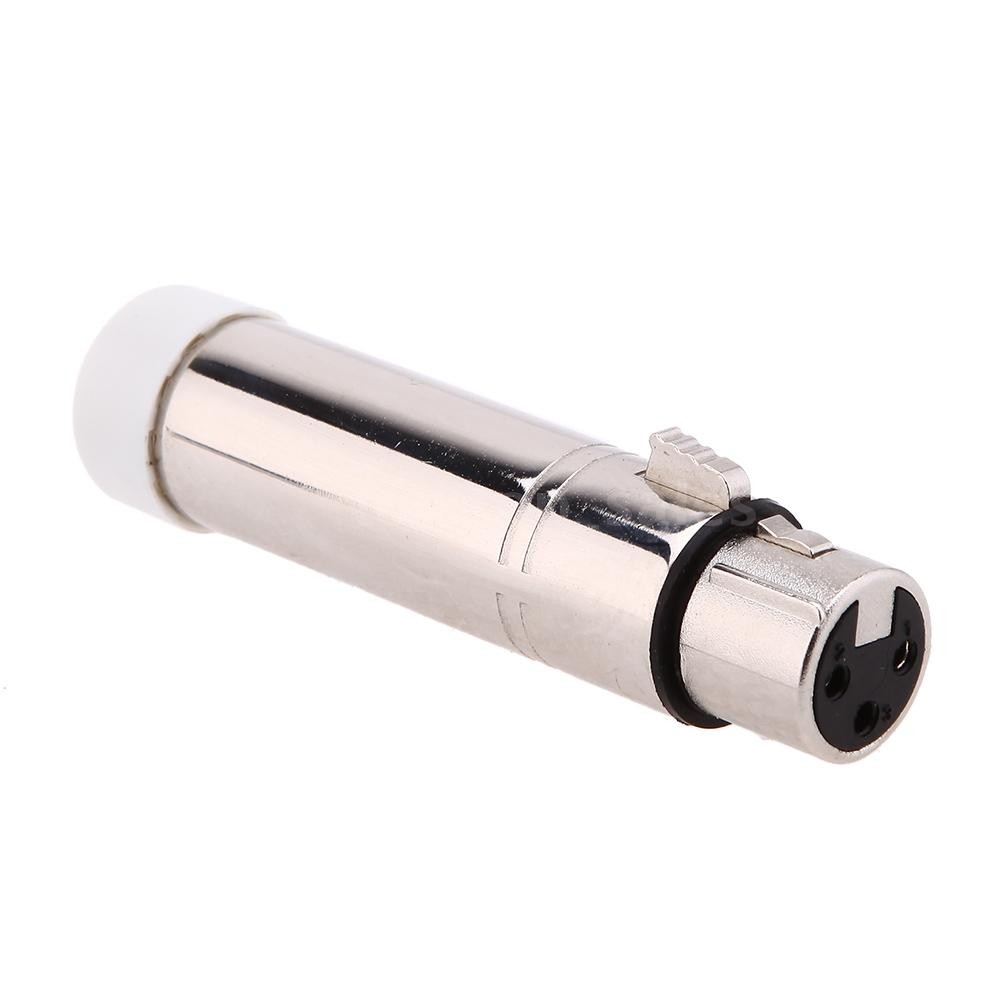

LED Lighting controller DFI Wireless DMX receiver or transmitter

   Product Description :

     Features:

           DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data

          (generated by console) by wireless way. No time delay when signal data is transmitting,

          signal data is real time and reliably. This product adopts a 2.4G ISM frequency section

          High effective GFSK modulate,communication design; 126 channels jumping frequency

          automatically, high anti-jamming ability.

     Specification:

           2.4G wireless DMX512 R/T

          126 channels jumping frequency automatically, high anti-jamming ability. to ensure works

          reliability   7 groups ID code settable,User can use 7 groups individual wireless net without

          any interfere each other in the same place...(Tricolor LED displaying Indicators)


                                   Input voltage:        5VDC 500mA MIN

               Communication distance:        500M (visible distance)

                 Work frequency section:        2.4G ISM,126 channels.frequency section

          Max transmitting power rate:       20dBm

     Operating manual:


             1)   ID code and LED color corresponding relationship:


                           1:RED
                           2:GREEN
                           3:RED+GREEN
                           4:BLUE
                           5:RED+BLUE
                           6:GREEN+BLUE
                           7:RED+GREEN+BLUE


             2). Press key 1 time to indicate ID setting,,Press again to set IC,then ID value adding

                 1 each time you press the switch.


             3). Working condition:


                            LED constant lit up:     No DMX or wireless signal.
                                    Red LED flash:     Transmitting.
                                Green LED flash:      receiving

             4). RF frequency 2.400 - 2.525G,total 126 channels,it’s searching automatically,


             5). ID Code “1-7” groups ID code,press ‘KEY’ for setting,it only can work under same ID

                  code of transmitter and receiver. (Same LED Color)

     Establishing Communication:


            1. Power on DMX512 wireless received board and transmitted board.


            2. Press “Key” button to set same ID value of transmitted board and received board.

                Please use different ID value if you need use more than 1 group wireless universals

               at same time in same place.

            3. The red LED flashes when transmitter transmits DMX data by no interfered frequency

                section, then receiver changes communicated frequency section. Green LED flash till

                received corrected same ID value, LED flash more fast once DMX data more fast.

            4. Communication was established correctly.

                  Receive Sensitivity:       -94dBm

                        DMX connector:       3pin

                                          Item :       1pc Size: 25 x 220 mm

                              Weight:      0.25 Kg
