| Item Type: | Stage Lighting Effect |
|---|---|
| Brand Name: | GIGERTOP |
| Style: | DMX Stage Light |
| Occasion: | Professional Stage & DJ |
| Model Number: | TP-B04 |
| Product name: | 6x18W battery wireless led par light |
| Voltage: | AC90V-240V |
| Power: | 110W |
| Led quantity: | 6pcs 18W high brightness 6 in 1 leds |
| Color emitting: | RGBWA UV 6in1 color mixing |
| DMX channels: | 6/10 channels |
| Shell color: | white color/black color optional |
| Battery size: | 8800MAH |
| Certification: | CE ROHS |
| Packing way: | charging flight case 8in1 packing |
| Unit Type: | lot (8 pieces/lot) |
| Package Size: | 23cm x 22cm x 20cm (9.06in x 8.66in x 7.87in) |
| Package Weight: | 38.0kg (83.78lb.) |
Quick Details
Specifications
Product specification:
Power supply: AC100V-250V
Frequency: 50-60Hz
Power consumption: 110 W
Light source: 6pcs 18W high brightness leds
Color emitting: RGBWA UV 6IN1 color mixing
Lamp life: 6-10 ten thousand hrs
LED angle: 30(±5) degree
Color: 16.7 million kinds of color change
Control channels:6/10 chs
Battery power & wireless DMX
Wireless DMX-512 protocol
Built in 2.4G receiver/ transmitter for wireless DMX operations
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model (by function button) : color change, color strobe, color dimmer, color gradual change/color jump change
Operation menu: 4 digit digital LED display
Light size: 22*20*13cm

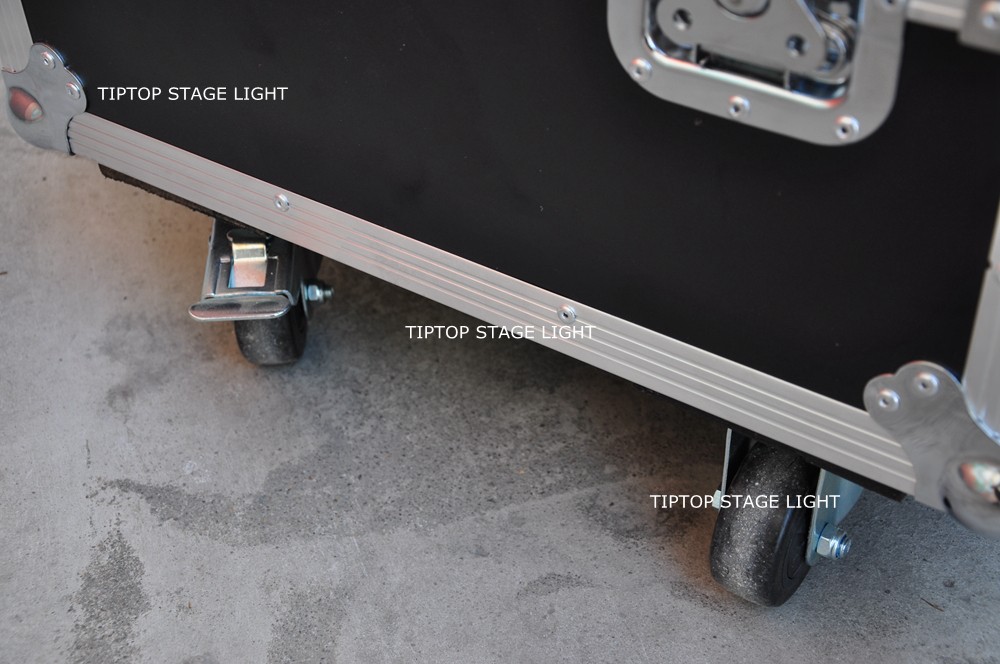

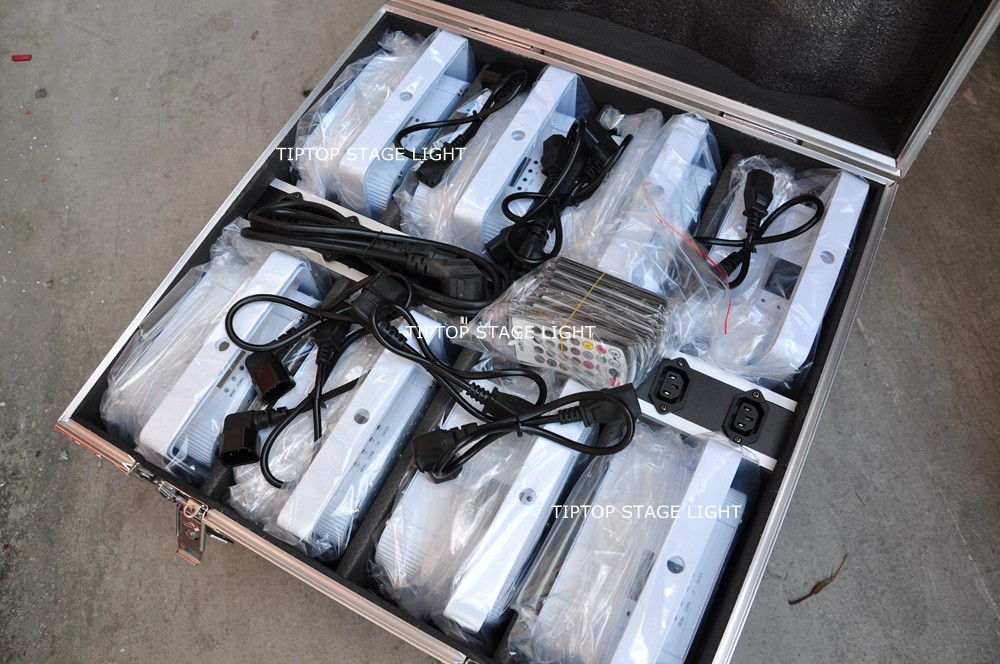

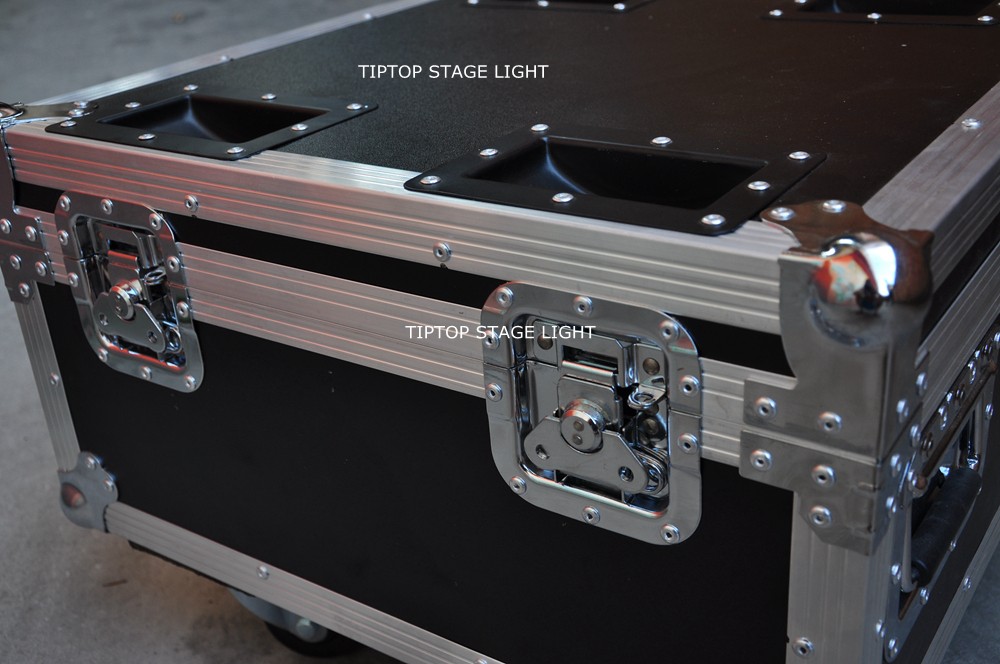

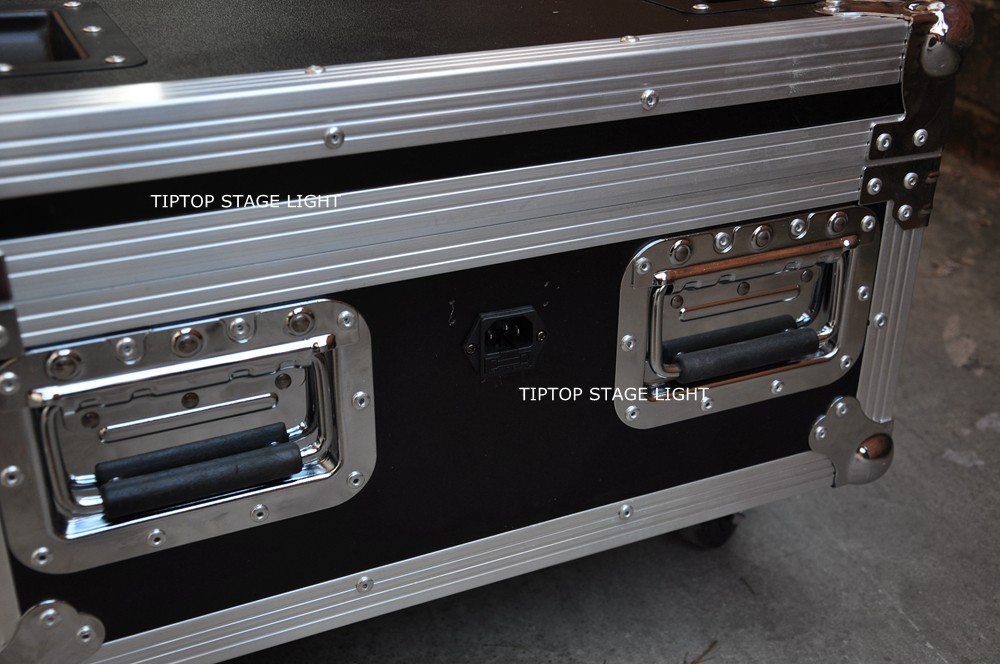

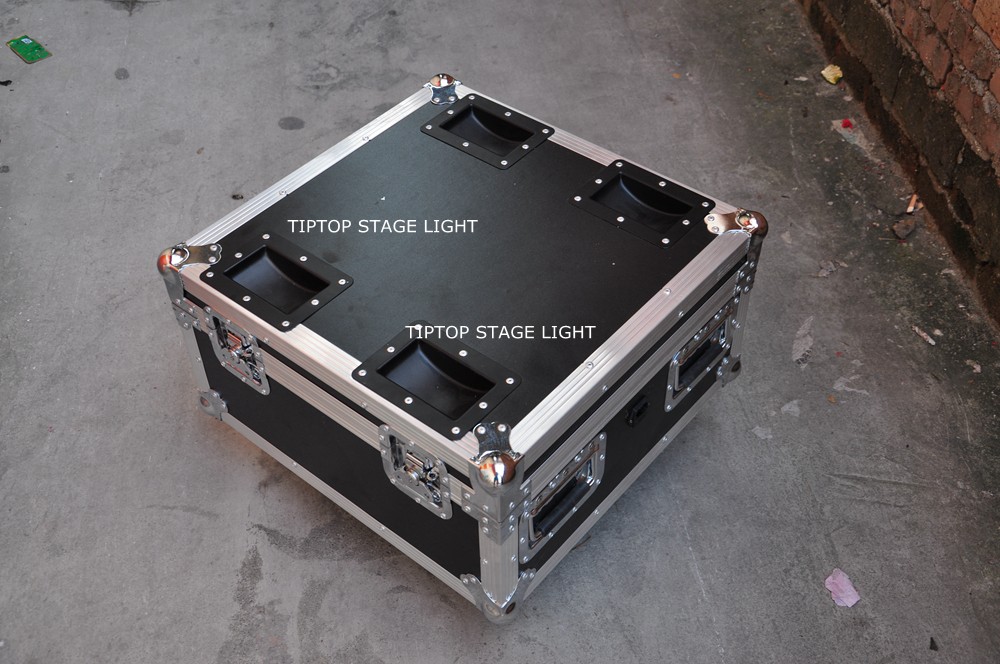

Packing way: 8in1 charging flight case with wheels and power socket ( stackable design. easy to put all case together)
* Logo painting OEM service.
Product warranty time: 1 year
Certification: CE ROHS

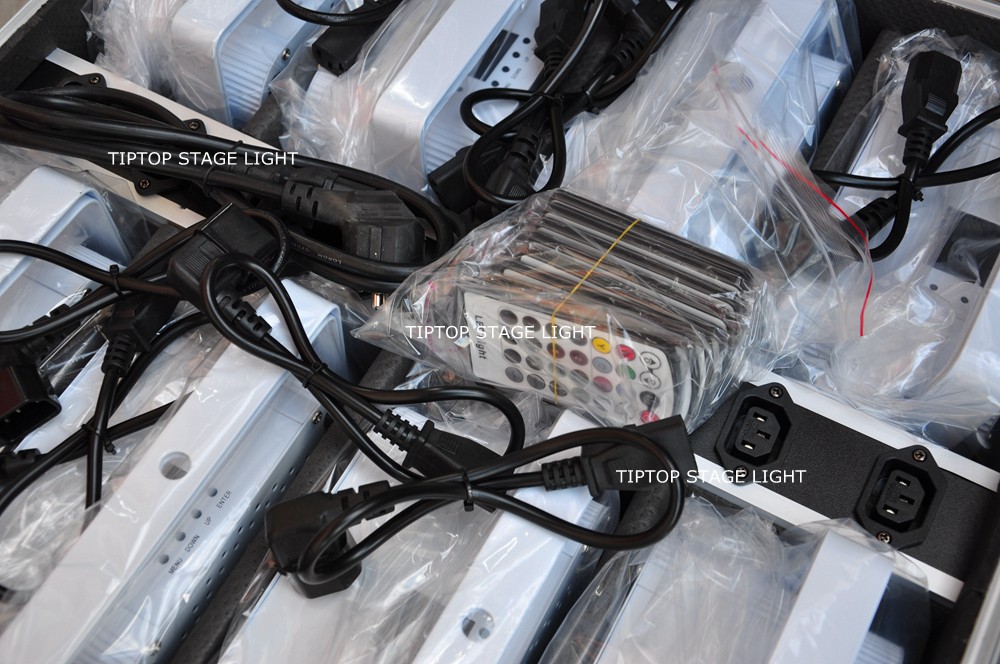

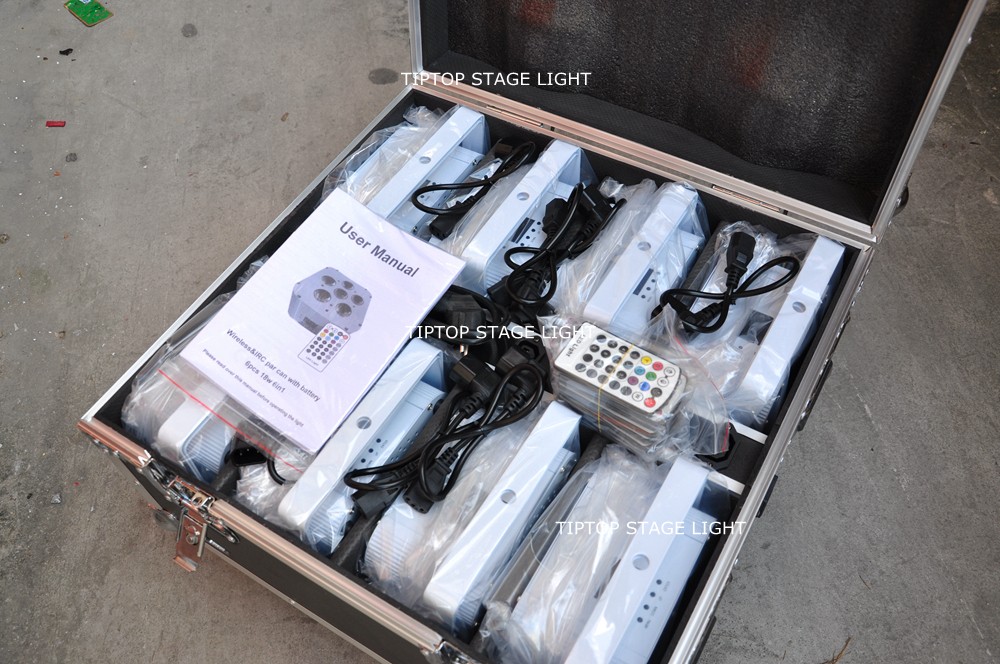

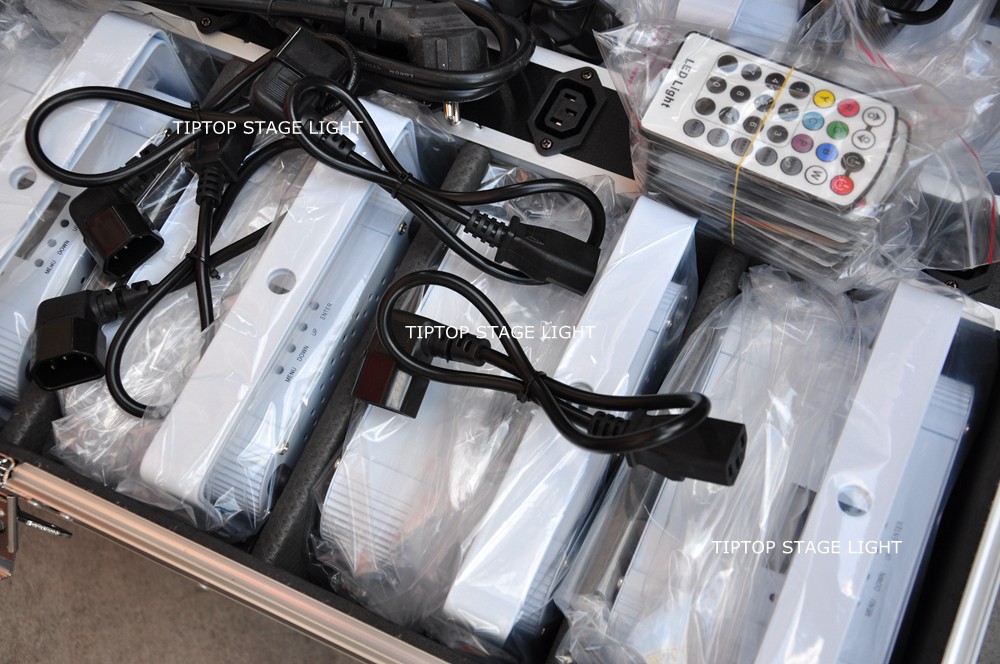

Packing list for each unit:
1pcs led par light
1pcs remote controller
1pcs power cable
1pcs manual book
FAQ:
1: how long i need to charge the battery?
A: the normal charging time is 4-5 hours.
2: how long can i use by battery?
B: all color swtich on can use 4-5 hours. the single color on can use 6-7 hours. that is long enough for normal using.
3: can i see the battery working life from the LED display?
A: yes, you can see the battery working condition and rest power.
3: the standard packing way is carton box. can i choose charging flight case?
A: yes, you can see the charging flight case packing purchase link in the web store
4: if i can not find the quantity or i need a lower price. how can i do?
A: please contact us firstly.
DMX 6 channeles:
| Channel |
Description |
| CH1 |
0 No action,1-255 red dimming |
| CH2 |
0 No action,1-255 green dimming |
| CH3 |
0 No action,1-255 blue dimming |
| CH4 |
0 No action,1-255 white dimming |
| CH5 |
0 No action,1-255 yellow dimming |
| CH6 |
0 No action,1-255 Purple dimming |
------------------------------------------------------------------------
DMX 10 Channels:
| Channel |
Description |
| CH1 |
0 No action,1-255 Total dimming |
| CH2 |
0 No action,1-255 Strobe |
| CH3 |
0 No action,1-255 Red dimming |
| CH4 |
0 No action,1-255 Green dimming |
| CH5 |
0 No action,1-255 Blue dimming |
| CH6 |
0 No action,1-255 White dimming |
| CH7 |
0 No action,1-255 Yellow dimming |
| CH8 |
0 No action,1-255 Purple dimming |
| CH9 |
0-9 Closed 10-29 Blending select 30-49 Auto Change 50-69 Gradual change 70-89 Sudden change 90-109 Strobe+ Red background 110-129 Strobe+Green background 130-149 Strobe+Blue background 150-169 Strobe+ Yellow background 170-189 Strobe+ Purple background 190-209 210-229 Sound 1 130-249 Sound 2 250-255 Sound3 |
| CH10 |
0 Closed,1-255 Speed |
