LCD Display Dmx512 Wireless Receiver/Transmitter Brief





Specifications:



1. Product model: 2.4G DMX512 wireless receiver/transmitter

2. 2X8 bit LCD to display working condition and parameter

3. 4 grade power rate output for option.

4. 126 channels jumping frequency self-moving,self-moving to option non-interfere frequency section, ensuring communication is reliable.

5. 16 groups ID coding for setting, User can use 16 groups individual wireless net without any interfere each other in the same place.

6. Input voltage : 9-12VDC 300mA MIN

7. Communication distance: 500M(visible distance)

8. Working frequency: 2.4G ISM,126 channels

9. Max transmitting power rate: 20dBm

10. Receive sensitive: -94dBm

11. DMX single terminal: 3PIN male-female socket

12. Dimension: 75X147X43 mm

13. Net weight: 360g







Display describe:





Working environments and cautions:



(1.) The signal emission controller and signal receipt controller must work on the same frequency and same address or it will fail.

(2.) When the signal emission controller and signal receipt controller are working, the antenna must be vertical to the controller so as to set up electromagnetic field to make sure better signal transfer.













MINI Wireless DMX512 Receiver Brief





Technical Parameters:



1. Tricolor LED displaying,126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.

2. 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

3. Input voltage: 5VDC 500mA MIN

4. Communication distance: 500M

5. Dimension:  8.5cm x 2cm x 2cm (Receiver)

6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section.

7. Max transmitting power rate: 20dBm

8. Receiver sensitive: -94dBm

9. Signal port:  3 pin female plug (for receiver)

10. Net weight: 180g











Operating manual:



ID code and LED color corresponding correlation:



1: RED



2: GREEN



3: RED+GREED = YELLOW



4: BLUE



5: RED+BLUE = PURPLE



6: GREEN+BLUE  = CYAN



7: RED+GREED+BLUE = WHITE



Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.





Working condition:



LED constant lit up: no DMX or wireless signal



Red LED flash: transmitting



Green LED flash: Receiving



RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.



ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.





Establishing Communication:



1. Power on DMX512 wireless received board and transmitted board.



2. Press "Key" button to set same ID value of transmitted board and received board,  please use different ID value if you need to use more than 1 group wireless system at the same time in the same place.



3. The red LED flashes when transmitter transmits DMX data by no interfered frequency section, then receiver changes communicated frequency section.  Green LED flash till received corrected same ID value, LED flash more fast once DMX data more fast.



4. Communication was established correctly then.





Application:



Stage lighting,

Disco hall,

Large literature performance,

Gymnasium lighting,

Temporary stage performance,

City lighting system,

TV station,

Conference center,

Professional showplace,

Theme parks,

Bar lighting and so on.





Caution:



Indoor use only.



Three(3) years warranty, repair, free replacement except damaged artificially.



The manufacturer will not offer free service in warranty period if any repaired or uncapped had happened



It is better to return to manufacturer if repair is a must, do not do any repairing job unless qualified electrician.



The working condition should be under temperature -20~+45 degree, 10%~90%RH, no congelation, so as to ensure its lifetime.



It can not be covered by any superstratum, it should be swept periodical to prevent dust.





Package included:

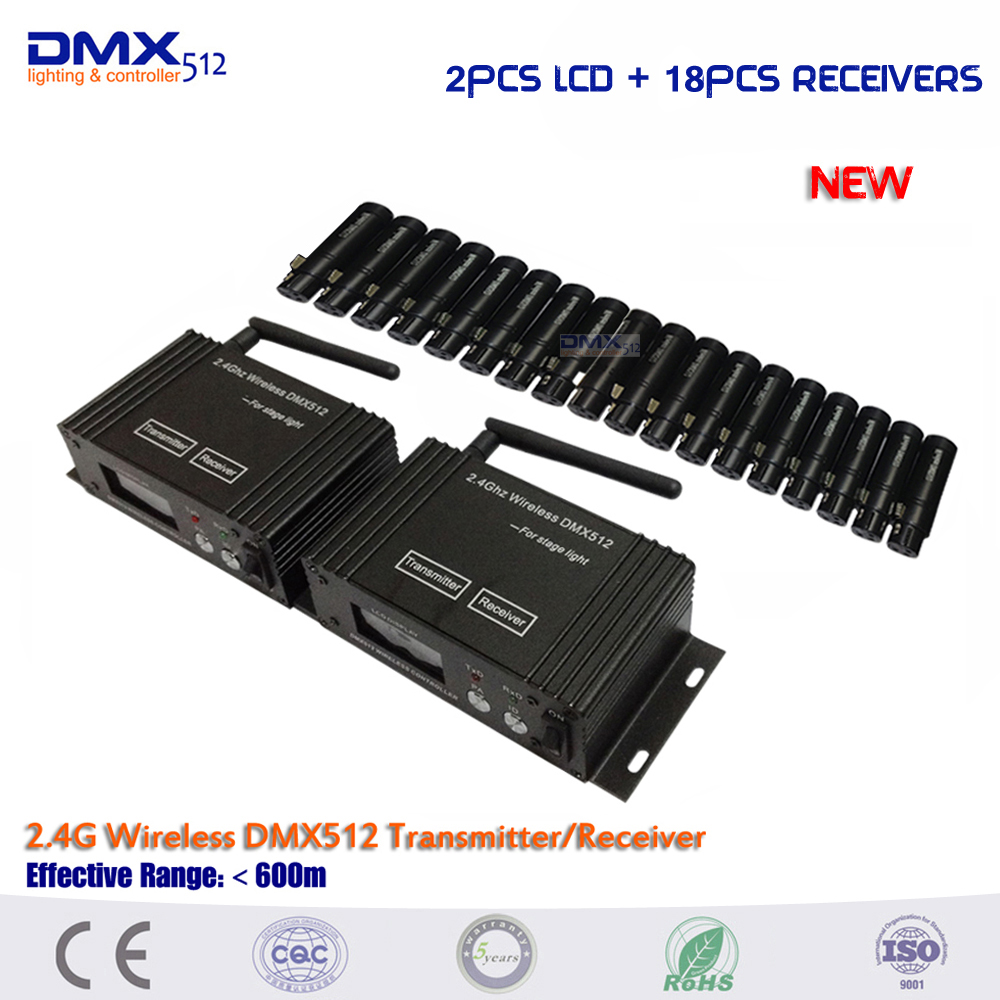

 2 x LCD ( DMX512 wireless receiver / transmitter )

18 x Wireless DMX512 Receiver ( 3 pin female plug )

20 x Power Supply ( please kindly inform us the power supply you need, Or we will choose it all according to your country standard )
